PC2500 is a smart charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It

can connect four batteries at the same time. The charger's maximum output power is up to 2500W, with three modes

of Fast(Fast Charge)/Charge(Slow Charge)/Storage. The charger can recognize the batteries with customized CAN

communication instantly. Charging is convenient and straightforward with a better user experience.

Channel 2:

Charge and

Balance Port

Channel 3:

Charge and

Balance Port

Channel 4:

Charge and

Balance Port

INTRODUCTION

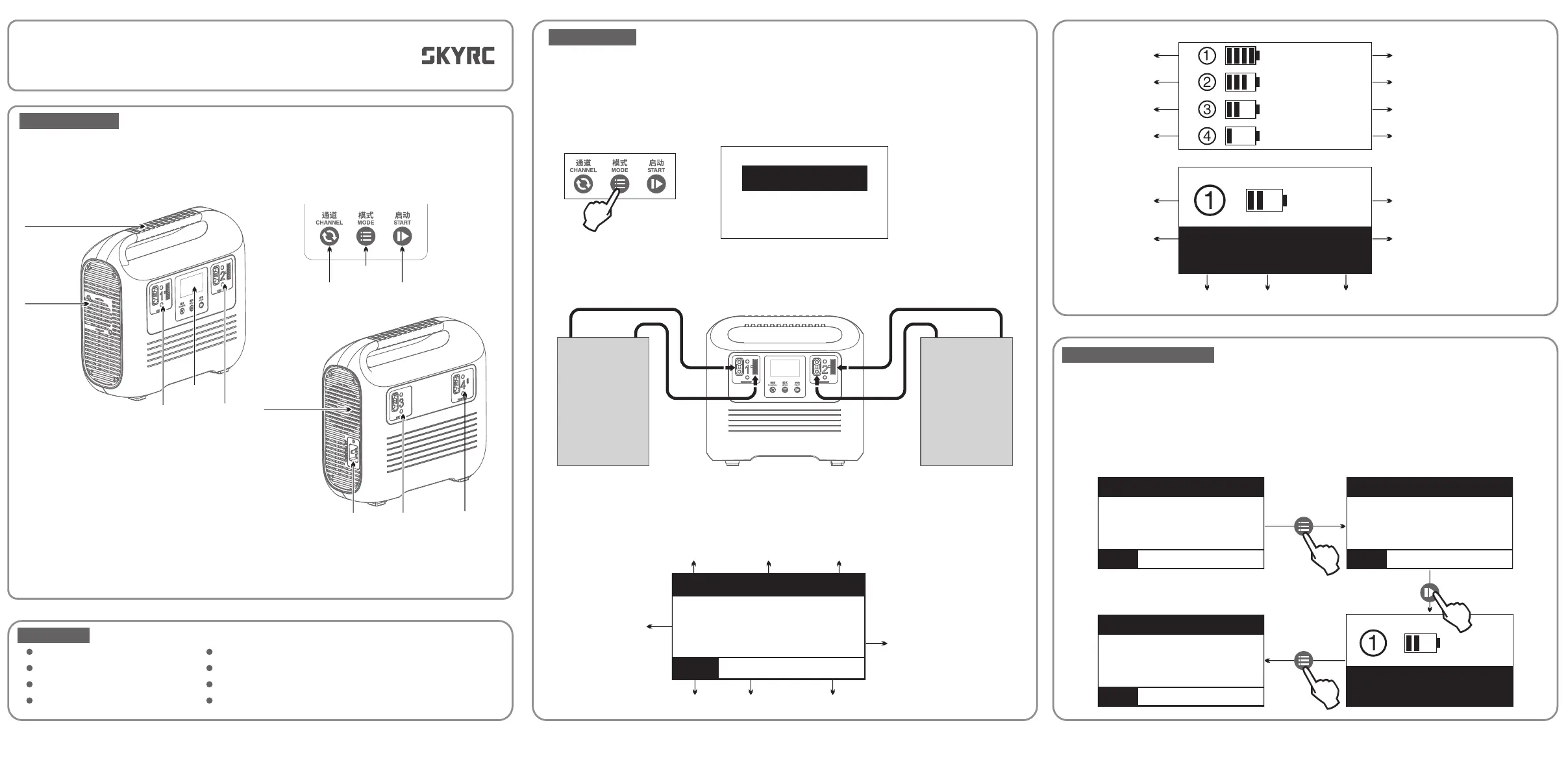

2500W Intelligent & Fast Quattro 12/14S Battery Charger

Instruction Manual

Version: 1.3

Heat

Dissipation

Outlet

Heat

Dissipation

Inlet

OPERATIONS

Charged Capacity

Please make sure the AC power is well-grounded before using, and strictly follow the operating procedures below:

The charger can connect up to 4 batteries.

1)Power on: Connect AC power, the charger will beep once, and the fan will start to rotate during self-check;

2)Select the language:

Initial-Use: short-press the MODE button, choose the preferred language in the interface, then press the START

button to confirm.

Routine charging: long-press the MODE button for 10 seconds to enter the language selection interface.

5) Select the Charge Mode: Fast Charge or Charge, and long-press the START button for three seconds to start

charging.

Note: 12S and 14S batteries cannot be charged simultaneously under the Charge mode; short-press the START

button to stop charging or exit this abnormal state.

3) Select the battery type: Press and hold both the MODE & START buttons simultaneously for three seconds to

select the battery type: LiPo or LiHV.

4) Connect the Battery: please follow the diagram below to connect the battery. (The charger will automatically detect

the battery cells)

CHARG

CHARG

Total Pack Voltage
