INTRODUCTION

OPERATIONPROCEDURE

3)

4)

Balance Charge ModeStorage Mode

Press the dial

SkyRC PC520 is an AC input LiPo charger which can charge LiPo/LiHV batteries with

balance charge mode and storage mode. It has short-circuit protection and reverse polarity

protection for maximum safety. There is an LED digitron to indicate realtime data.

Insert the AC power cord into the charger then connect the power cord to a wall socket (100-240V). Switch on the

charger, and the charger will sound “Bi---” and the LED digitron will display “CHA” (Balance charging)

Connect the battery and charger as follows,

Note: 1) It can ONLY charge 6S battery.

2) Both the charging cable and balance cable of the battery should be connected to the charger when charging.

1)

2)

Storage Mode: If the battery is not used for a long time, please use the storage mode to charge or discharge

the battery voltage to 3.8V/cell for long life of the battery.

Choose Current: Press the dial once, the LED digitron will display current “1.0A” and the value is blinking. Turn the

dial left or right to choose the current and press the dial again for confirmation after you reach the desired current.

The adjustable range of current is 1.0A-20.0A and the increment is 0.1A. And turning the dial left is to decrease the

current and right is to increase the current.

Choose Mode: Turn the dial to choose the working mode – Balance Charge Mode(CHA) and Storage Mode(STO) .

Turn the dial

to choose the

current

Press the dial

once to confirm

the current

Press the dial

for 3 seconds

to start work.

Charge status

finished percentage

SET CONTENTS

ERRORMESSAGE

Incorrect Connection

When Powered ON

5)

Start: Press the dial for 3 seconds, the charger will start working. The LED digitron will indicate charge/discharge

status and battery capacity.

7)

6)

Stop: Press the STOP button once to stop the working process.

Finish: In balance charge mode, the charger will beep 5 times and the LED digitron will display”FULL” to indicate

the working process is finished; in storage mode, the charger will beep 5 times and the LED digitron will display

“dONE” to indicate the working process is finished.

Over Current

Protection

Warranty and service

We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of

purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. During

that period, we will repair or replace free of service charge for products deemed defective due to those causes.

This warranty is not valid for any damage or subsequent damage arising as a result of misuse, modification or as a result of

failure to observe the procedures outlined in this manual.

The warranty service is valid in China only.

If you need warranty service overseas, please contact your dealer in the first instance, who is responsible for

processing guarantee claims overseas. Due to high shipping cost, complicated custom clearance procedures to

send back to China. Please understand SkyRC can't provide warranty service to overseas end user directly.

If you have any questions which are not mentioned in the manual, please feel free to send email to

[email protected]

Note:

1.

2.

3.

WARNING AND SAFETY NOTES

These warnings and safety notes are particularly important. Please follow the instructions for

maximum safety; otherwise the charger and the battery can be damaged or at worst it can

cause a fire.

Never leave the charger unattended when it is connected to its power supply. If any malfunction is

found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.

Keep the charger away from dust, moist, rain, heat, direct sunshine and vibration. Never drop it.

The allowable AC input voltage is 100~240V

This charger and the battery should be put on a heat-resistant, noninflammable and nonconductive surface.

Never place them on a car seat, carpet or the like. Keep all the inflammable and volatile materials away from

operating area.

Make sure you know the specifications of the battery to be charged or discharged to ensure it meets the

requirements of this charger. If the program is set up incorrectly, the battery and charger may be damaged .It

can cause fire or explosion due to overcharging.

This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual.

SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated.

We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the

methods you employ for using, operating and maintaining the device. For this reason we are obliged to deny all

liability for loss, damage or costs which are incurred due to the incompetent or incorrect use and operation of our

products, or which are connected with such operation in any way.Unless otherwise prescribed by law, our obligation

to pay compensation, regardless of the legal argument employed, is limited to the invoice value of those SkyRC

products which were immediately and directly involved in the event in which the damage occurred.

Liability exclusion

Charging

During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is

Never attempt to charge the following types of batteries.

A battery pack which consists of different types of cells (including different manufacturers)

A battery that is already fully charged or just slightly discharged.

Non-rechargeable batteries (Explosion hazard).

Batteries that require a different charge technique from NiCd, NiMH, LiPo or Gel cell (Pb, Lead acid).

A faulty or damaged battery.

A battery fitted with an integral charge circuit or a protection circuit.

Batteries installed in a device or electrically linked to other components.

Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers

during the charge process.

This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending

on the battery type or its performance, and can be found in the information by the battery manufacturer. Only

batteries that are expressly stated to be capable of quick-charge are allowed to be charged at rates higher than the

standard charge current.

Connect the battery to the terminal of the charger: red is positive and black is negative. Due to the difference

between resistance of cable and connector, the charger can not detect resistance of the battery pack, the essential

requirement for the charger to work properly is that the charge lead should be of adequate conductor cross-section,

and high quality connectors which are normally gold-plated should be fitted to both ends.

Always refer to the manual by battery manufacturer about charging methods, recommended charging current and

charging time. Especially, the lithium battery should be charged according the charging instruction provided by the

manufacturer strictly.

Special attention should be paid to the connection of lithium battery.

Do not attempt to disassemble the battery pack arbitrarily.

Be aware that lithium battery packs can be wired in parallel or in series. When the battery is connected in parallel, its

capacity is calculated by multiplying the single battery capacity by the number of cells with the total voltage staying

the same. Voltage imbalance may cause fire or explosion. Lithium battery is recommended for charging in series.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the

EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of material resources. To return your used device, please use

the return and collection systems or contact the retailer where the product was purchased. They can take this

product for environmental safe recycling.

Balance Port

Malfunction

AC Power

Failure

Connection Failure

When Charging

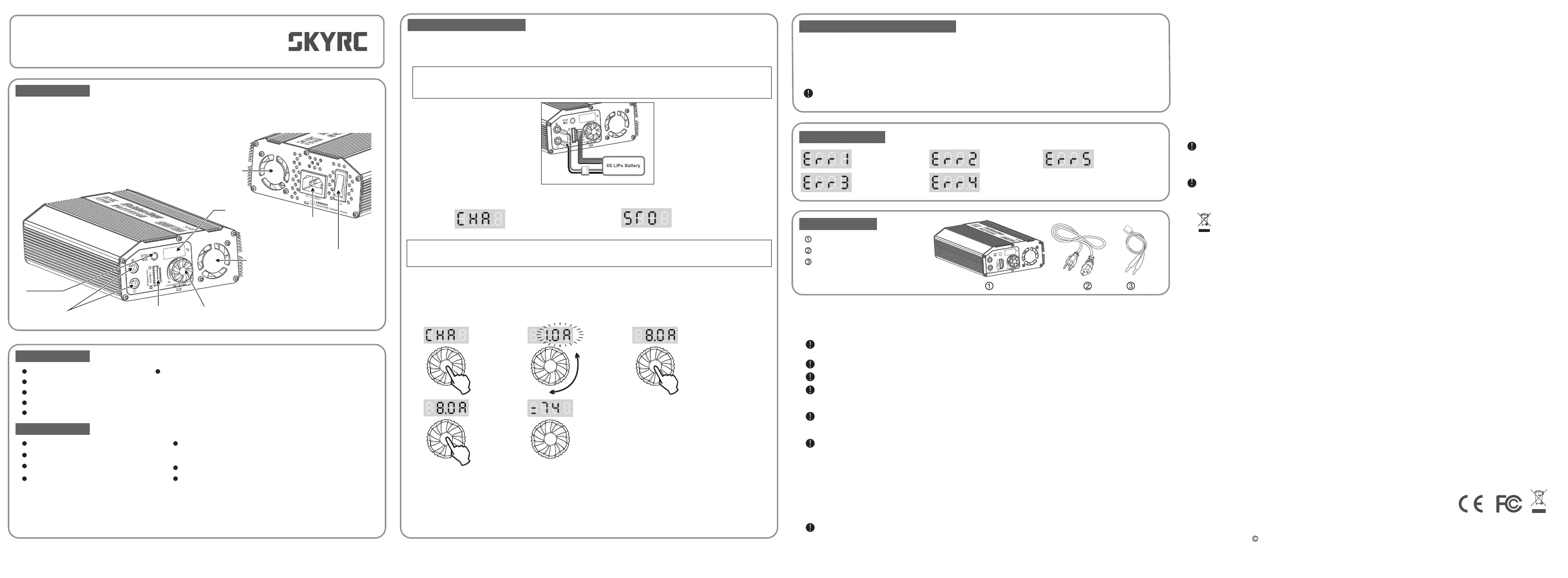

INSTRUCTIONMANUAL

LiPo Balance ChargerSK-100105

ON/OFF

Power Switch

Cooling Fan

Cooling Fan

Current Adjustment

/ Start Dial Button

6SBalance

Port

Battery Sockets

Stop Button

LED Digitron

AC Input

100-240V

SkyRC PC520 Charger

Power Cord

XT90 with Banana connector

Charging Cable

-1--2--3--4-

SWITCH BETWEEN LIPO AND LIHV

PC520 support LiPo battery, terminal voltage is 4.20V for every count battery, also support LiHV battery,

terminal voltage of every count LiHV battery is 4.35V.

How to transfer LiPo battery and LiHV battery?

Press the STOP button for 3 seconds, until the LED digiltron will display LiHV to indicate the battery type.

Note: PC520 default battery type is LiPo.

Please operate this function carefully,use wrong type battery would damage to battery,

even cause a fire, or explosion.

InputVoltage:

OutputPower:

Charger Current:

LiPoBatteryCell Count:

oooo

Working Environment: Temperature: 0C/32F ~ 40C/104F

Humidity: 5% ~ 75%

oooo

Storage Environment: Temperature: -10C/14F ~ 70C/158F

Humidity: 5% ~ 75%

100-240V

520W

1.0-20.0A

6S

FEATURES

Supports LiPo/LiHV battery Adjustable charge current from 1.0 to 20.0A

The charger can store the charge current of last charge program

LED digitron indicates charge/discharge status

Two working mode: balance charge mode and storage mode

Maximum safety: short-circuit protection and reverse polarity protection

SPECIFICATION

Working Mode:

Size:

Weight:

Balance Charge Mode

Storage Mode

200x132x59mm

1.6kg

Printed in China 2024.04

The manual is subject to change without notice;

please refer to our website for the latest version!

Manufactured by

SKYRC TECHNOLOGY CO., LTD.

www.skyrc.com

7504-0764-05

Floors 4, 5, & 8, Building 4, Meitai Technology Park,

Guanguang South Road, Guanlan, Longhua District,

Shenzhen 518110, China
