73298-753-08
12/01
Lexington, KY, USA
METER–PAK™ Wireway Extension, Catalog No. MP12X8PEDEXT
Extensión de ducto para cables METER–PAK™, no. de cat. MP12X8PEDEXT
Class / Clase 4141
1
© 2001Schneider ElectricAll Rights Reserved
Retain for future use. / Conservar para uso futuro.
E
N
G
L
I
S
H
InstructionBoletín de
Bulletininstrucciones
Square D Company
1601 Mercer Road
Lexington, KY 40511 USA
1-888-SquareD (1-888-778-2733)
www.SquareD.com
Electrical equipment should be serviced only by qualified personnel. No responsibility is assumed
by Schneider Electric for any consequences arising out of the use of this material. This document
is not intended as an instruction manual for untrained persons.
INTRODUCTION
This bulletin contains instructions for the installation of the METER–PAK™
Wireway Extension (MP12X8PEDEXT) to the METER–PAK Wireway device
(MP43X8PED) manufactured by Square D.
To mount the wireway extension to the wireway device, see Figure 1.

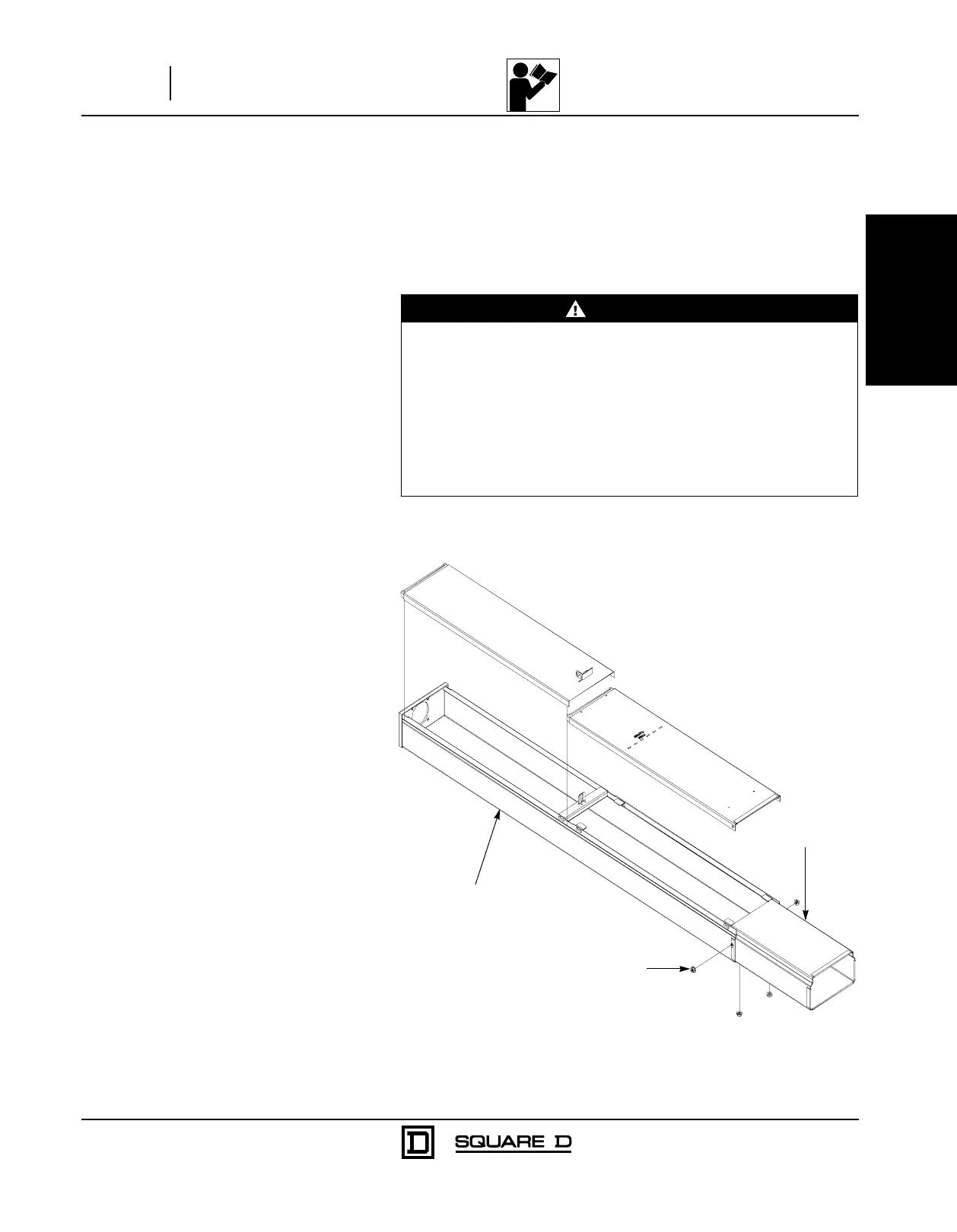

Figure 1:METER–PAK Wireway Extension Installation
SAFETY PRECAUTIONS
HAZARD OF ELECTRIC SHOCK, BURN, OR EXPLOSION
•This kit must be installed and serviced only by qualified electrical personnel.
•Turn off all power supplying the equipment where this kit will be installed
before working on or inside the equipment.
•Always use a properly rated voltage sensing device to confirm that all
power is off.
•Replace all devices, doors, and covers after installing this kit and before
turning on power to the equipment.
Failure to follow these instructions will result in death or serious injury.
DANGER
MOUNTING WIREWAY EXTENSION
Torque to 75 lb-in (9 N•m), four places
METER–PAK Wireway device
METER–PAK
Wireway extension
4141-9625
