Installation Sheet

02-40058-02-en,March 2022 |1

SpaceLogic™ RP-C230 V

Controller Models

Part numbers:SXWRCF16A10003 and SXWRCF16B10002

Regulatory Compliance and Safety Information

Electrical equipment should be installed,operated,serviced,and maintained only by qualified personnel.No responsibility is assumed by

Schneider Electric for any consequences arising out of the use of this material.

Carefully read these instructions and all information relevant for this product before trying to install it.See the list of technical literature.

The technical literature and declarations of conformity can be accessed on the Schneider Electric Exchange website,ecobuilding.schneider-

electric.com.Contact your local Schneider Electric sales office for a hard copy of the documentation or for additional information.

Technical Literature

• SpaceLogic Hardware Reference Guide, 04-XX001-XX-en

Recommended Installation Location

The controller is intended for fan coil,ceiling systems,and other applications.The controller is typically installed next to or inside the fan coil

equipment.The controller can be equipped with optional covers to reduce access to the screw terminals and wires.

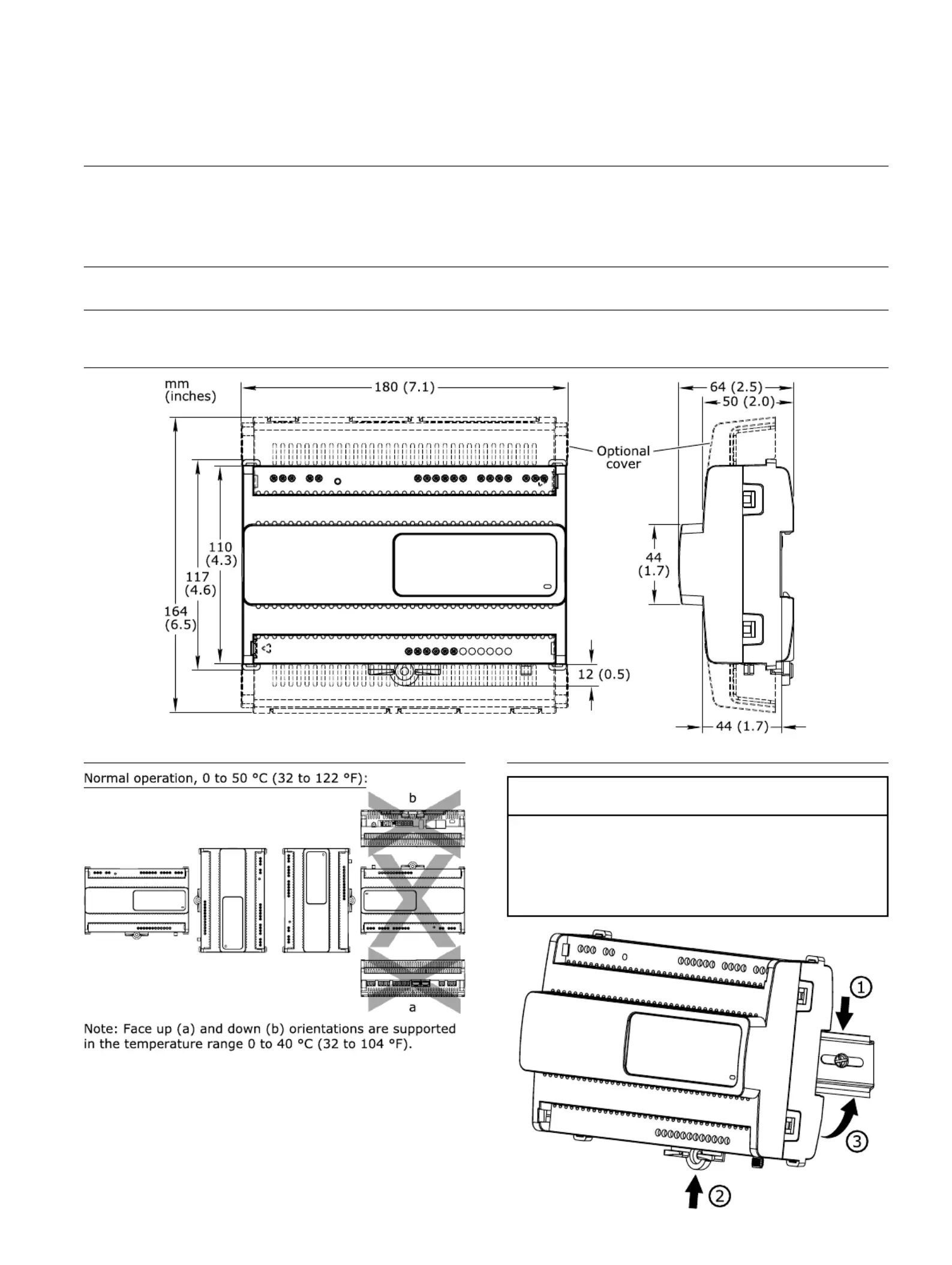

Dimensions

Installation Orientation Restrictions Installing the Device on a DIN Rail

NOTICE

CONTROLLERCONTROLLER DAMAGEDAMAGE

Use the DIN rail end clip when you install the controller on a

vertical DIN rail.

FailureFailure toto followfollow thesethese instructionsinstructions cancan resultresult inin equipmentequipment

damage.damage.

02-40058-02-en,March 2022 |2

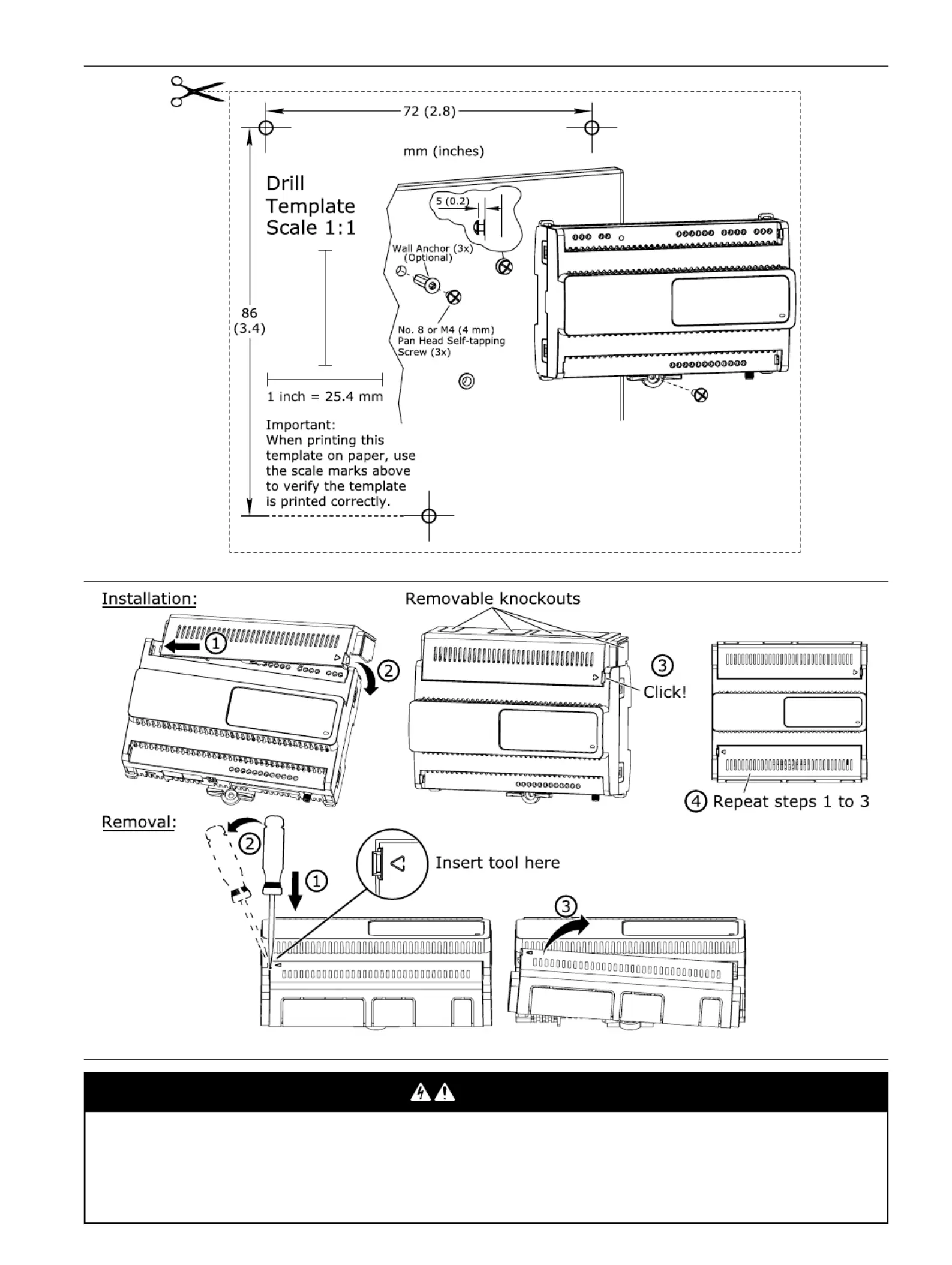

Installing the Device on a Flat Surface

Installing and Removing the Optional Covers

Connections

DANGER

HAZARDHAZARD OFOF ELECTRICELECTRIC SHOCK,SHOCK,EXPLOSION,EXPLOSION,OROR ARCARC FLASHFLASH

• Disconnect all line voltage connected to the controller and its relay outputs before working on the device.

• More than one disconnect switch may be required to de-energize this equipment before servicing.

• Connect only devices with safe extra low voltage equipment (SELV/PELV)inputs/outputs to the controller universal inputs/outputs.

FailureFailure toto followfollow thesethese instructionsinstructions willwill resultresult inin deathdeath oror seriousserious injury.injury.

02-40058-02-en,March 2022 |3

Connections,continued

WARNING

HAZARDHAZARD OFOF ELECTRICELECTRIC SHOCKSHOCK

For RP-C-16A-F-230V hardware version 9and earlier,do not connect signal ground (RET terminals,USB shield,Ethernet network shield,or

antenna shield)between RP-C controllers without connecting at least one of the RET terminals to protective earth ground.

FailureFailure toto followfollow thesethese instructionsinstructions cancan resultresult inin death,death,seriousserious injury,injury,oror equipmentequipment damage.damage.

NOTICE

EQUIPMENTEQUIPMENT DAMAGEDAMAGE

Do not connect signal ground (RET terminals,USB shield,Ethernet network shield,or antenna shield)between RP-C controllers.

FailureFailure toto followfollow thesethese instructionsinstructions cancan resultresult inin equipmentequipment damage.damage.

NOTICE

CONTROLLERCONTROLLER DAMAGEDAMAGE

Before powering up the controller,ensure that the input power voltage level meets the specifications of the controller.

FailureFailure toto followfollow thesethese instructionsinstructions cancan resultresult inin equipmentequipment damage.damage.

Wiring

Recommended screw tightening torque: 0.56 to 0.79 Nm (5 to 7lbf.in)

For information on wiring,including connection diagrams,rating of and location of fuses (circuit breakers), and cable specifications,see the

SpaceLogic Hardware Reference Guide.

Product specificaties

Merk:	Schneider
Categorie:	Meetapparatuur
Model:	SXWRCF16A10003
Gewicht:	472 g
Breedte:	180 mm
Diepte:	64 mm
Hoogte:	110 mm
Gewicht verpakking:	800 g
Breedte verpakking:	180 mm
Diepte verpakking:	64 mm
Hoogte verpakking:	110 mm
