HM 110

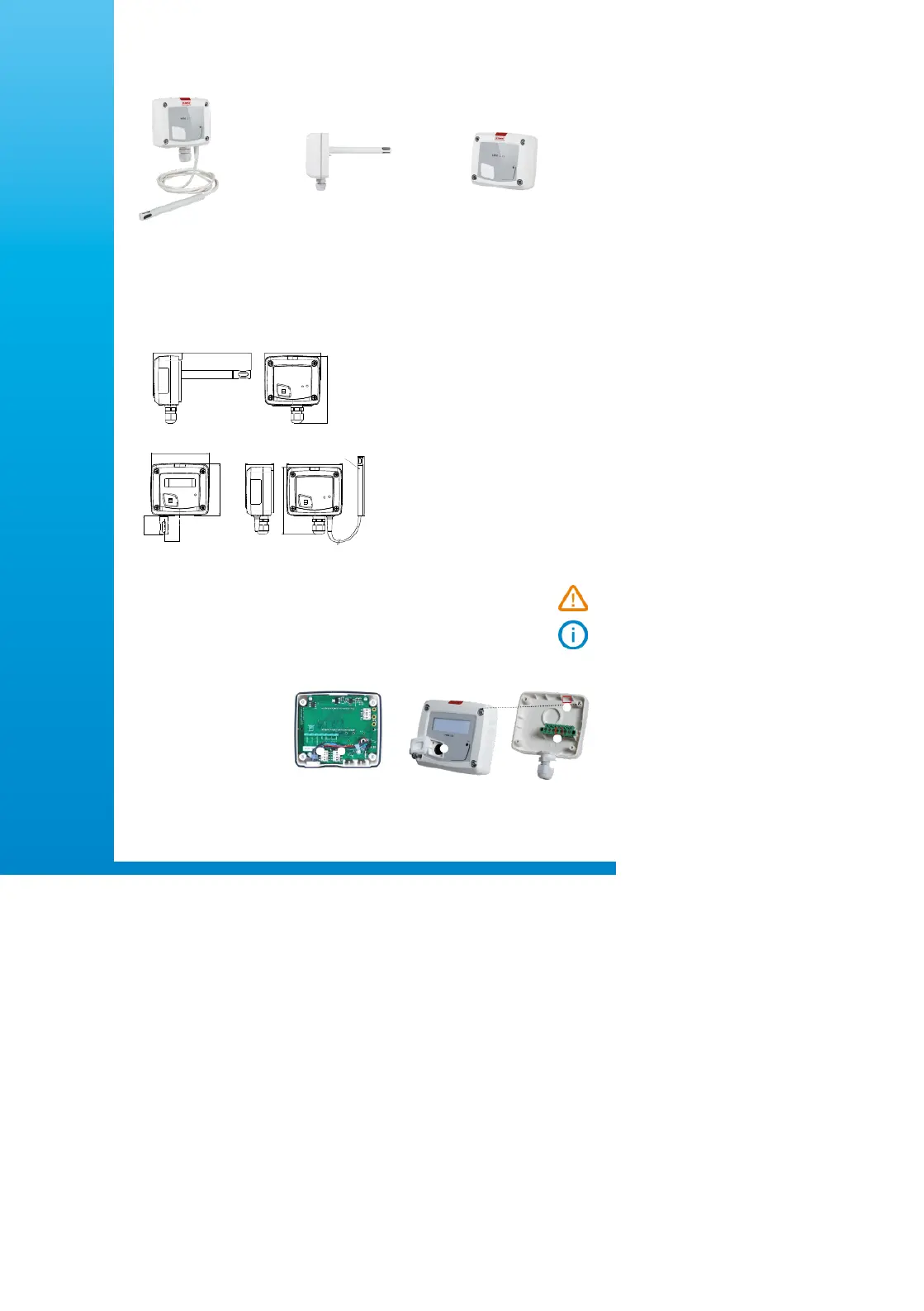

Quick Start Guide
EN FR
www.sauermanngroup.com
English
Quick Start Guide
Humidity transmitter
Operating temperature, protection of the instruments and information about storage
Conditions of use (°C/%RH/m): from 0 to +50 °C; in non-condensing conditions. From 0 to 2000 m.
Protection: IP65 (remote and duct models); IP20 (ambient model)
Storage temperature: from -10 to +70 °C.
Dimensions
Used symbols
For your safety and in order to avoid any damage of the device, please follow the procedure described in
this document and read carefully the notes preceded by the following symbol:
The following symbol will also be used in this document, please read carefully the information notes
indicated after this symbol:
Connections
109 mm
Ø mm13
90 mm
46 mm
135 mm
112 mm
46 mm
90 mm
109 mm
90 mm
24.4 mm
29.5 mm
80 mm
Ambient model Remote model
Duct model
Inside the front housing
1. Active switch (S1)
2. Inactive switch
3. LCC-S software connection
4. Output terminal block
5. Power supply terminal block
6. Cable gland
12
Removable front face Fixed back housing
6
5
4
3
Duct model Ambient model
Remote model
Maintenance: please avoid any aggressive
solvent. Please protect the transmitter
and its probes from any cleaning product
containing formalin, that may be used for
cleaning rooms or ducts.
Precautions for use: please always use the device
in accordance with its intended use and within
parameters described in the technical features in order
not to compromise the protection ensured by the
device.
PC conguration
1
2
3
4
Active switch (S1)
Please refer to the
optional LCC-S
software to make the
conguration.
Conguration via LCC-S software (option)
An easy and friendly conguration with the software!
It is possible to congure the device.
Example: the instrument could be congured from 30 to 50% RH.
In order to compensate a possible drift of the transmitter, it is possible to add an offset to the displayed value by the
HM110instrument: it shows 48% RH, a standard instrument shows 45% RH. It is then possible, through the software,
to integrate an offset of -3 to the displayed value by the HM 110 instrument
To access the conguration via software:
Connect the cable of the LCC-S to the connection of the transmitter.
Mounting
To mount the transmitter, mount the ABS plate on the wall (drilling:
Ø 6 mm, screws and pins are supplied).
Insert the transmitter on the xing plate (see A on the drawing
beside). Rotate the housing in clockwise direction until you hear
a “click” which conrms that the transmitter is correctly installed.
The model with ambient probe does not have any
mounting plate. 4 xing holes are present inside the back
housing. Use them to install the transmitter on the required
location.
7.5 mm
8 mm
4.5 mm
40 mm
50 mm
68 mm
75 mm
37.5 mm
23 75. mm
14 mm
A
A
