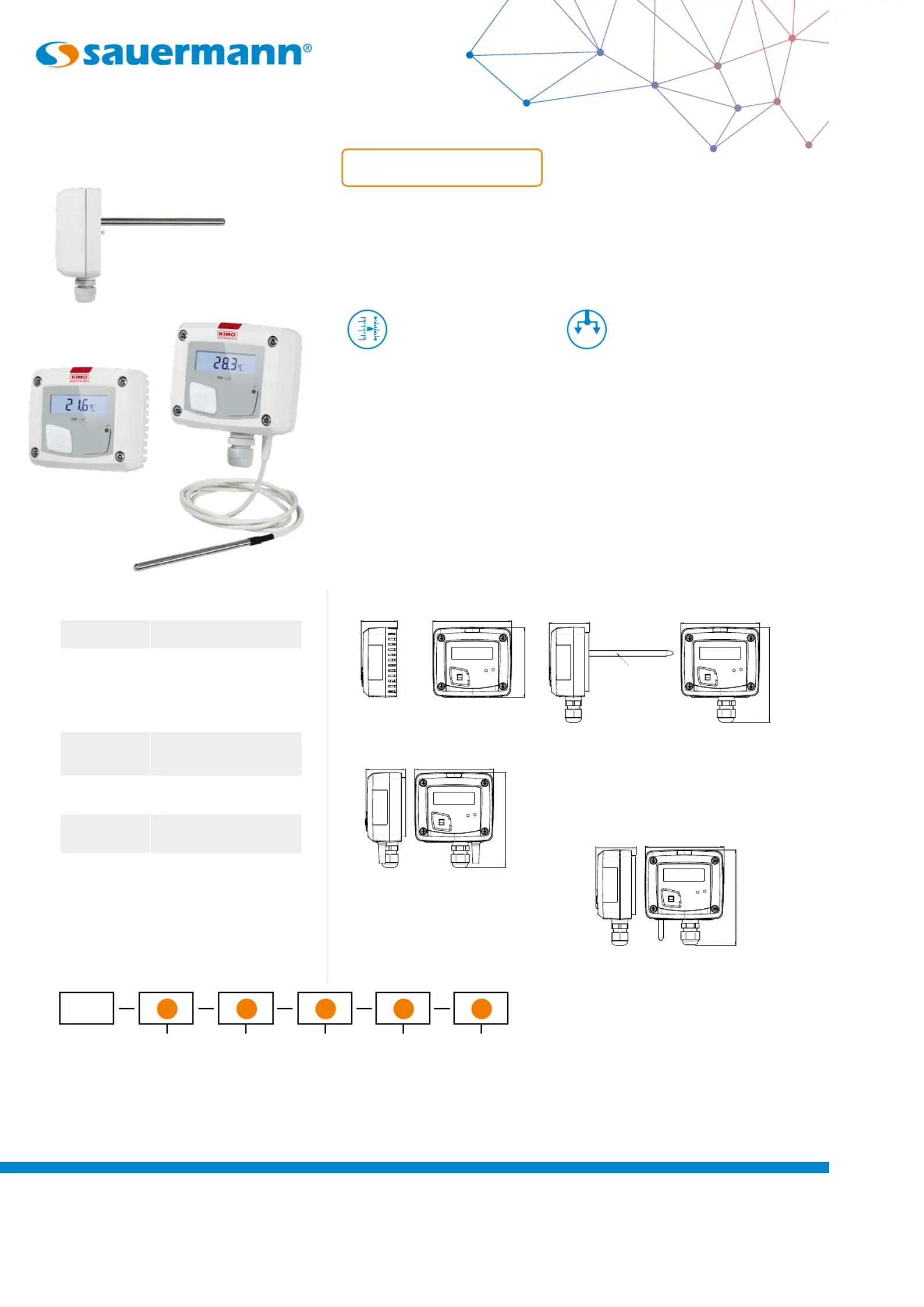

TM 110

Temperature transmitter

• Range from 0 to +50 °C (ambient

and airtight ambient models), from

-20 to +80 °C (duct model) and

from -100 to +400 °C (model with

Pt100 terminal block)

• 0-10 V output, active, power supply

24 Vac/Vdc (3-4 wires) or 4-20 mA

output, passive loop, power supply

from 16 to 30 Vdc (2 wires)

• ABS V0 housing, IP65 (remote,

airtight ambient and duct models)

or IP20 (ambient model), with or

without display

• “¼ turn” system mounting with

wall-mount plate

• Housing with simplied mounting

system

DATA SHEET

MaterialABS V0 as per UL94

Protection index

IP65

Duct and airtight ambient models and

model with terminal block

IP20

Ambient model

Display

LCD 10 digits

Size: 50 x 17 mm

Height of digitsValues: 10 mm; Units: 5 mm

Cable gland

For cables Ø8 mm maximum

Duct model and model with terminal block

Weight162 g

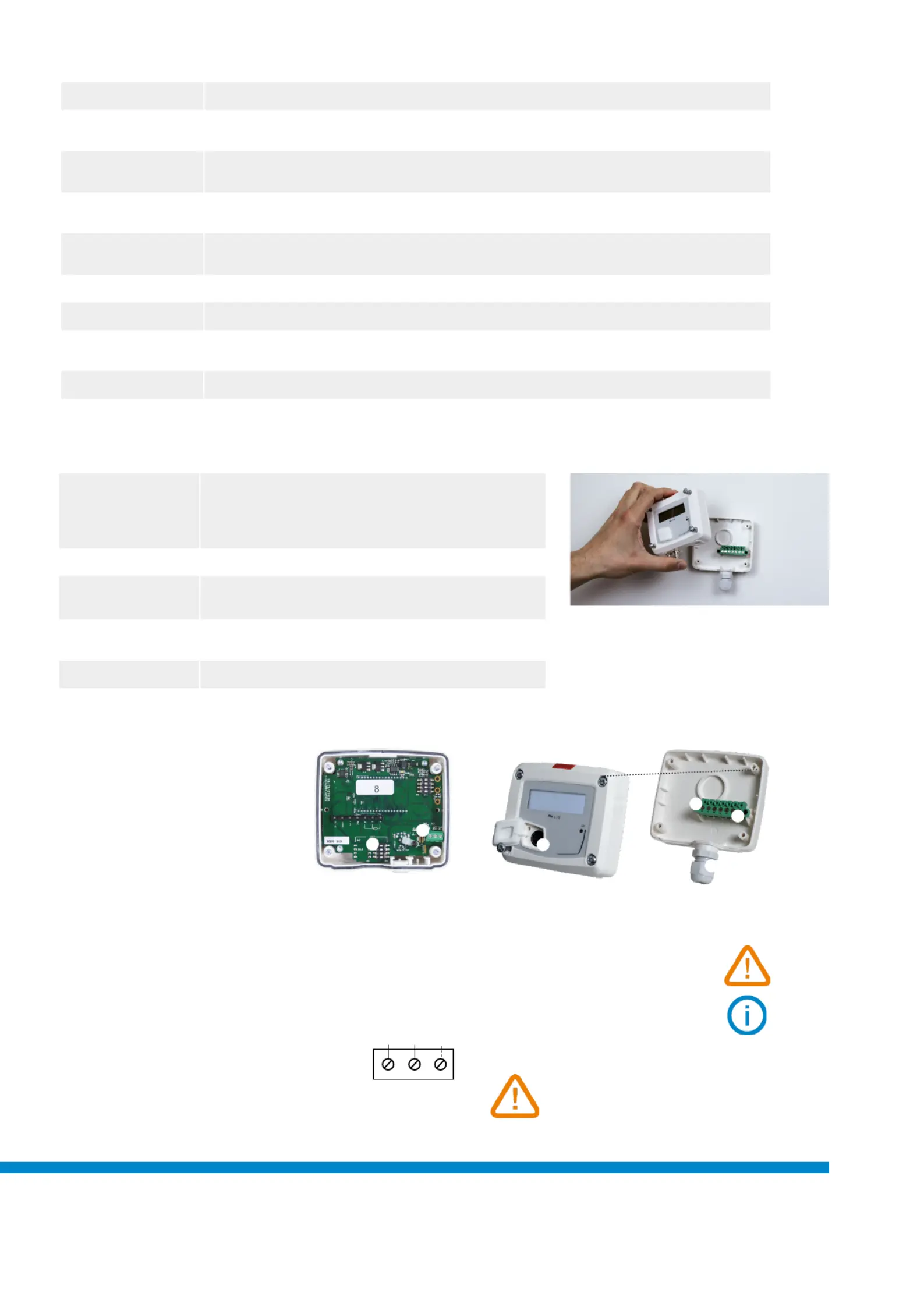

Features of the housing

90mm

41mm

80mm

46mm

90mm

109mm

46 mm

90 mm

109 mm

Part number

Power supply / Output

A: Active – 24 Vac/Vdc – 0-10 V

P: Passive – 16/30 Vdc – 4-20 mA

Display

O: With display

N: Without display

Model

B: Terminal block

AI: Stainless steel

duct

S: Ambient

E: Airtight ambient

TM110

OAI

Congurable

outputs

1 or 2 analog

outputs

0-10 V

4-20 mA

Ambient model

Model with terminal block*

Airtight ambient model

* Several probes available in option

** Duct model only: stainless steel probe specications

Example: TM110-AOAI-6-100

Temperature transmitter, active, with display and

stainless steel duct mounting, 6 mm diameter

and 100 mm length stainless steel probe.

46mm

Ø6mm

90mm

109mm

Duct model, stainless steel probe*

Stainless steel probe technical

specications (duct model): Ø6 mm contact

tip; available lengths: 100 mm, 150 mm, 200 mm,

250 mm or 300 mm.

A

Stainless

steel probe

diameter**

6: Ø6 mm

6

Stainless steel

probe length**

100: 100 mm

150 :150 mm

200 :200 mm

250 :250 mm

300 :300 mm

100
