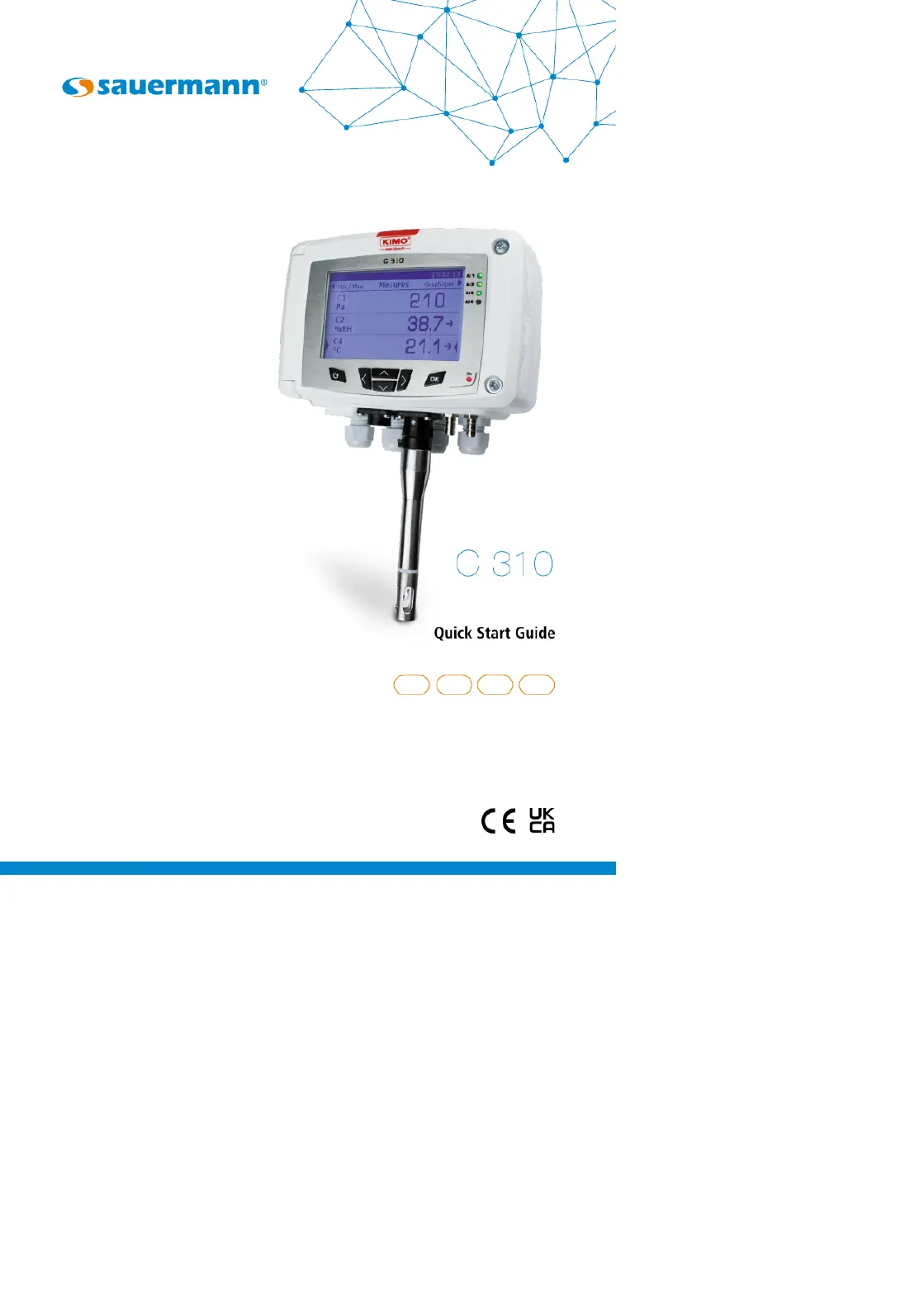

Quick Start Guide
Multifunction transmitter

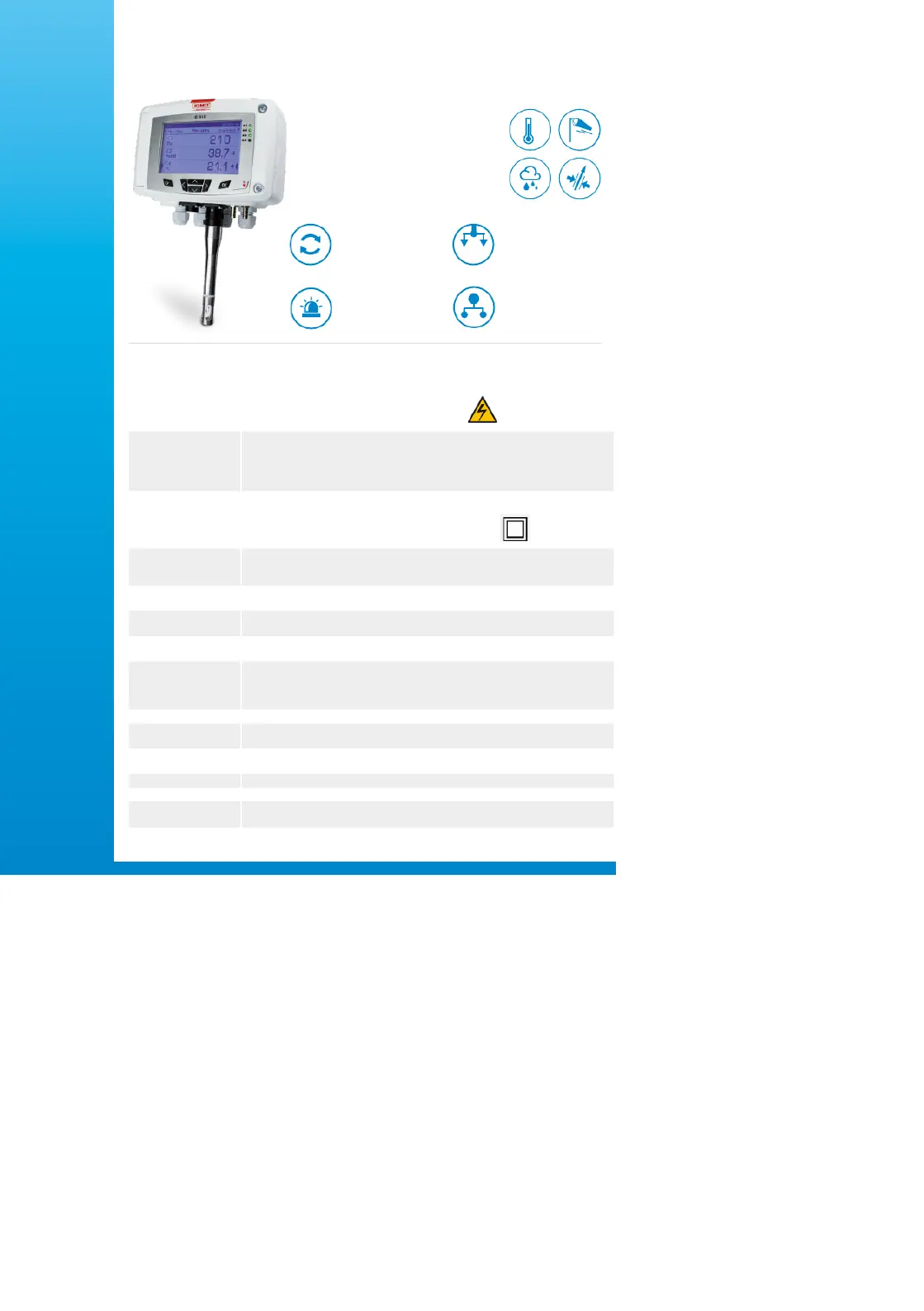

General features
*2 additional outputs (optional)
°C
°F
Power supply
24 Vac / Vdc ±10% or
100-240 Vac, 50-60 Hz
Warning: risk of electric shock
Outputs
2 x 0/4-20 mA or 2 x 0-5/10 V (4 wires)
Optional additional outputs: 2 x 0/4-20 mA or 2 x 0-5/10 V (additional consumption for24 V model:
1 VA / for 110-240 V model: 2 VA)
Common mode voltage <30 VAC / Maximum load: 500 Ohms (0/4-20 mA)
Minimum load: 1 K Ohms (0-5/10 V)
Galvanic isolation
Inputs (power supply) and outputs (on 110 Vac/240 Vac models)
Device fully protected by
DOUBLE ISOLATION or REINFORCED ISOLATION
Outputs (on 24 Vac/Vdc models)
Consumption with probe
and without option
C310-BO and C310-BN: 6 VA
C310-HO and C310-HN: 8 VA
(CO
2
probe additional consumption for 24 V and 110-240 V models: 2 VA)
Electrical connections
Screw terminal block for cables from 0.05 to 2.5 mm2 or from 30 to 14 AWG
Carried out according to the code of good practice
Relays (optional)
4 RCR relays. NO: 5A / NC: 3A / 240 Vac
(additional consumption for24 V model: 5 VA / for 110-240 V model: 8 VA)
Communication RS485
(option)
Digital: Modbus RTU protocol, congurable communication speed from 2400 to 115200 Bauds
Communication Ethernet
(option)
Ethernet communication module allowing transmission, monitoring and maintenance of transmitters via
an Ethernet network in 10 BASE-T and 100 BASE-TX LAN/WAN supporting TCP/IP protocol
(additional consumption for 24 V and 110-240 V models: 1 VA)
Audible alarm Buzzer (70 dB at 10 cm)
Environment and type of
uid
Air and neutral gases
Conditions of use
(°C/%RH/m)
From -10 to +50°C. In non-condensing condition.
From 0 to 2000 m
Storage temperature From -10 to +70°C
Security Protection class 2; Pollution degree 2; Overvoltage category 2
European directives
2014/30/EU EMC; 2014/35/EU Low Voltage;
2011/65/EU RoHS II; 2012/19/EU WEEE
C 310
Up to 4 analogue
outputs (4 wires) 0/5-
10 V or 0/4-20 mA
2 inputs for
interchangeable
probes plus internal
pressure sensor
Modbus interface
(via RS485 or
Ethernet connection)
4 visual (dual-color
LEDs) and audible
alarms
0-5 / 10 V
4-20 mA
-
+
-+
24 Vdc
power supply
N
L
N
L
115/240 Vac
power supply
N
L
Pe
N
L
240 Vac
N
L
24 Vac power supply
Class II
N
L
Pe
N
L
240 Vac
L
24 Vac power supply
or
N
GND
0/4-20 mA
0-5/10 V
-+
Regulator display or
PLC/BMS passive type
GND
0/4-20 mA
0-5/10 V
-+
Regulator display or
PLC/BMS passive type

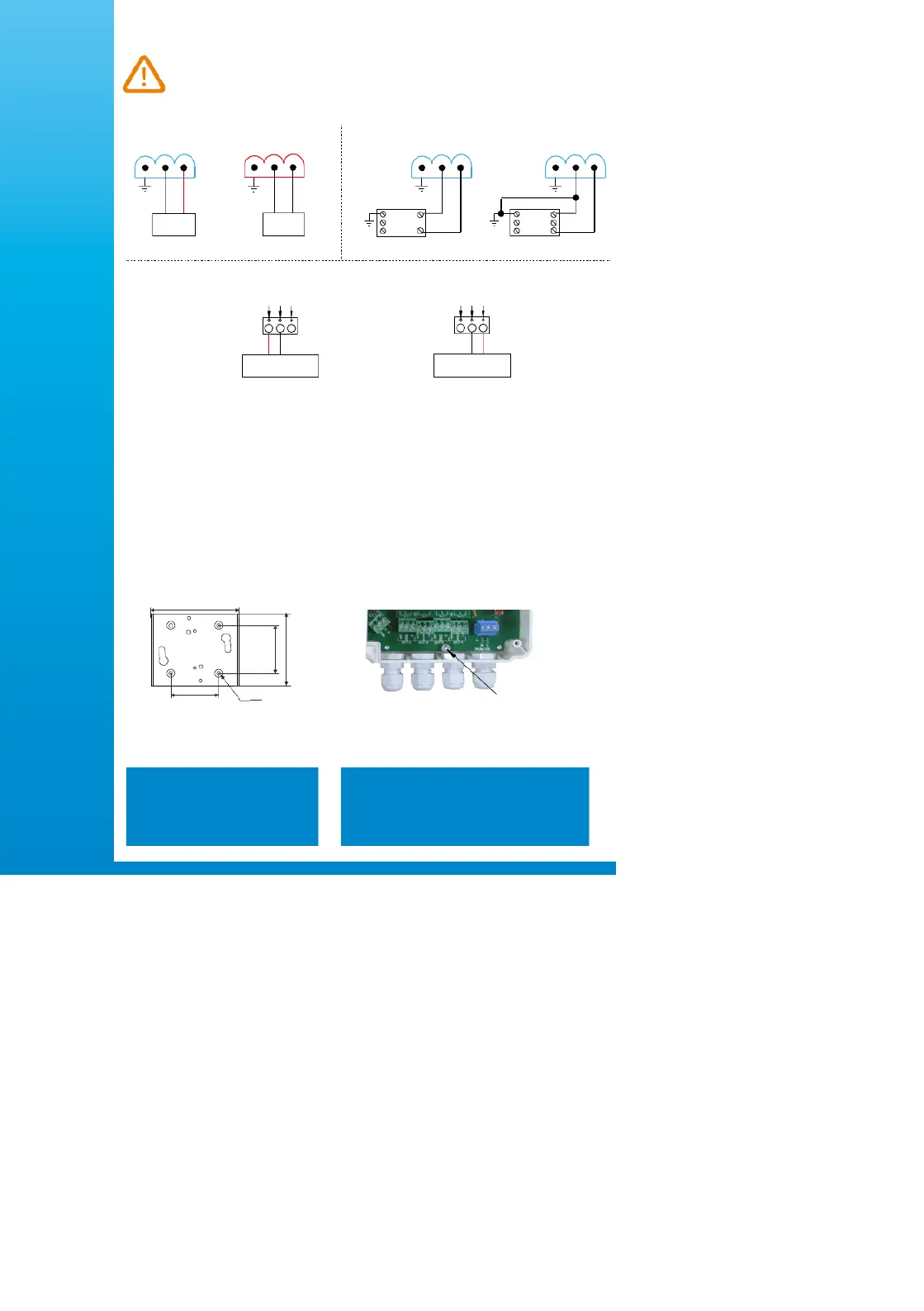

Electrical connections as per NFC15-100 standard
This connection must be made by a formed and qualied technician. Whilst making the connection, the transmitter
must not be energized. The presence of a switch or a circuit breaker upstream the device is compulsory.
• For 24 Vac/Vdc
models:
• For 24 Vac/24 Vdc models using power supply
converters:
Conguration
Class 310 transmitters allows you to set all the parameters managed by the transmitter: units, measuring ranges, alarms, outputs,
channels... via the different methods shown below:
• Via keypad, only on models with display. A code-locking system for keypad guarantees the security of the installation.
See conguration manual.
• Via software (optional): simple and user-friendly. See LCC-S user manual.
• Via Modbus (optional): conguration of all parameters from your PC.
• Via Ethernet (optional): conguration of all parameters from your PC.
Mounting
To install the transmitter on a wall, x the stainless steel plate to the wall (drilling: Ø8 mm, screws and wall-plugs supplied). Insert
the transmitter on the plate (see A on the drawing below) by aligning it at 30°. Rotate the housing in clockwise direction until
you heard a “click” which conrms that the transmitter is correctly installed. Open the housing, lock the clamping system of the
housing on the plate with the screw (see photo below). To remove the transmitter from the xing plate, do not forget to remove
this screw.
Accessories
Maintenance: please avoid any aggressive
solvents. Please protect the transmitter
and its probes from any cleaning product
containing formalin, that may be used for
cleaning rooms or ducts.
Precautions for use: please always use the device
in accordance with its intended use and within
parameters described in the technical features in order
not to compromise the protection ensured by the
device.
Please refer to the data sheet to get more information about available accessories.
• 0/4-20 mA current
output connection:
• 0-5/10 V
voltage output
connection:
A
A
120 mm
Ø 5,4 mm
65 mm
98 mm
65 mm
Fixing screw of the housing
316 L stainless steel plate
• For 110/240 Vac
models:
