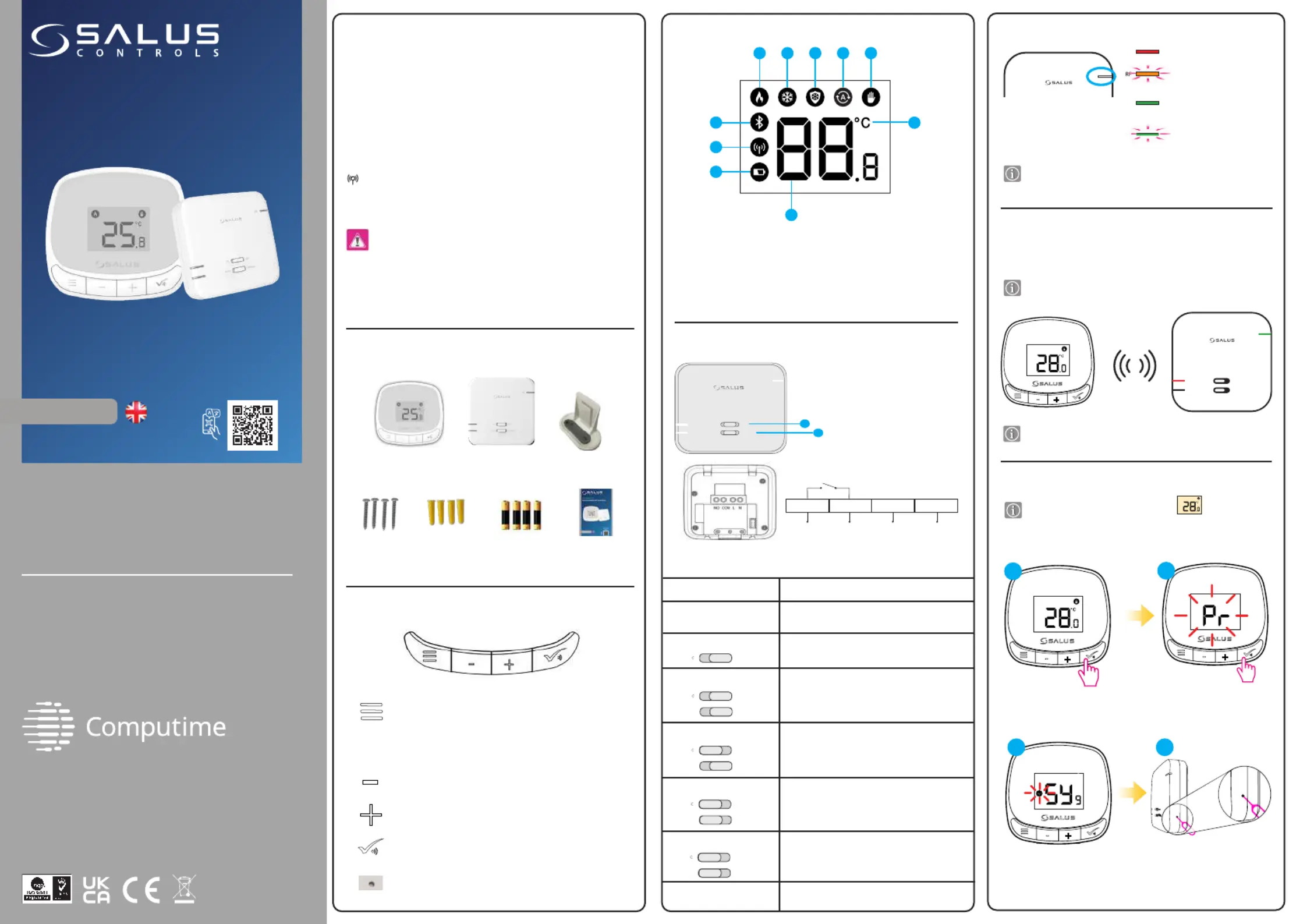

RT320RFBT

868 MHz THERMOSTAT & RECEIVER

MULTILANGUAGE

MANUAL

This product complies with the essential requirements and other relevant

provisions of Directives: 2015/863/EU, 2014/53/EU

868.0 MHz <13dBm

The full text of the EU Declaration of Conformity is available at the following

internet address: www.saluslegal.com.

Product Compliance

Introduction

The RT320RFBTthermostatstarts in manual mode. Use Bluetooth mode

to customize settings and create your schedule. The thermostat is designed

to regulate the temperature of heating or cooling systems. It operates on 4 x

AAA, 1.5V alkaline batteries, which must be inserted into the compartment

behind the removable wall plate. Rechargeable batteries are not supported.

4 x Screws

4 x Wall anchors

Desk stand

Buttons description

Icons description

RXRT550 receiver

Use in accordance to national and EU regulations. Use the device as intended,

keeping it in dry condition. Product for indoor use only. Installation must

be carried out by a qualied person in accordance to national and EU

regulations.

Safety Information

1. Room/Setpoint temperature

2. Battery indicator

3. RF icon

4. Bluetooth icon

5. Heating mode

6. Cooling mode

7. Frost protection

8. Schedule mode

9. Manual mode

10.Temperature scale in

degrees Celsius

RF

ONOFF

AUTOMANUAL

Follow the steps below if you need to re-do the pairing procedure of

the thermostat and receiver.

RT320RFBT

Thermostat

RXRT550

Receiver

The thermostat and receiver come pre-paired from the factory, so no

setup is needed.

First power up

Once you turn on the thermostat and receiver, they will pair

automatically.

1

56

10

4

3

2

7

8

9

MENU

Press for 5s- Enters the setting Heating or Cooling mode.

Press for 10s- enters the installer Mode.

Short press to switch modes (auto, manual, frost) toggle to next mode.

If you're inside a settings screen and press the 'Menu' button, you'll

return to the previous step without saving.

MINUS

Decrease parameter value/moving on the menu in ‘DOWN’ direction

PLUS

Increase parameter value/moving on the menu in ‘UP’ direction

OK/Validation

Increase parameter value/moving on the menu in ‘UP’ direction

Box content

RESET/REBOOT

Reset/reboot button found on the back of the thermostat

(remove the back plate rst).

RF

RXRT550

RF

Solid red - No RF signal

-

R

-

Blinking orange -

Weak RF signal

RF

-

Solid green -

Good RF signal

Position the thermostat and receiver within reliable RF range (RF

LED color ) to ensure correct operation.green

RF

-

Blinking green -

Waiting for RF signal

Function

3 sec

3s P

3s P

3s P

3s P

3s Pairing

airing

airing

airing

airing

3s P

3s P

3s P

3s P

3s Pairing

airing

airing

airing

airing

Pairing procedure

PR is ashing. Press the OK

button to start the pairing

procedure.

2

4

First, make sure that the receiver is

powered on. Then, press the pairing button

for 3 seconds(the button is on the right

side of the receiver).

3

SY9 is displayed. Pairing mode

is active for 10 minutes.

Counts down from 9 to 1.

1

3s

Press the OK button

for 3 seconds to enter

Pairing (Pr) or Test RF (tE).

RF LED functions

Note: Make sure that the backlight is on before attempting

to operate the thermostat. First press to turn the display on, then

proceed with other button operations.

4 x AAA BatteriesQuick guide

1. ON / OFF – Turns the receiver

power on or o. In OFF, the system

will not operate.

2. AUTO / MANUAL – AUTO lets

the thermostat control the system;

MANUAL allows direct user control.

ON

AUTO

OFF

MANUAL

RF

NOCOMLN

1

2

ON/OFF & AUTO/MANUAL LED Functions

LED

All LEDs are o

O mode

ONOFF

Pairing mode

RED LED is always on.

GREEN LED ashes each 1 second.

Manual mode relay o

AUTOMANUAL

All LEDs are o. No heat/cool demand.

Not paired

RED LED ashes 4 times every 1 second.

GREEN LED is always on.

ONOFF

Manual mode relay on

AUTOMANUAL

Red LED is on. Green LED is on.

Continuous Heat/cool demand.

ONOFF

Heat demand

AUTOMANUAL

ONOFF

RED LED is on.

GREEN LED is on.

No heat demand

AUTOMANUAL

ONOFF

RED LED is on.

GREEN LED is o.

230V AC

50 Hz
