INSTALLATION SHEET

PD19804

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20190104

: kuzcolighting.com

LED Pendant

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

1.

2.

3.

4.

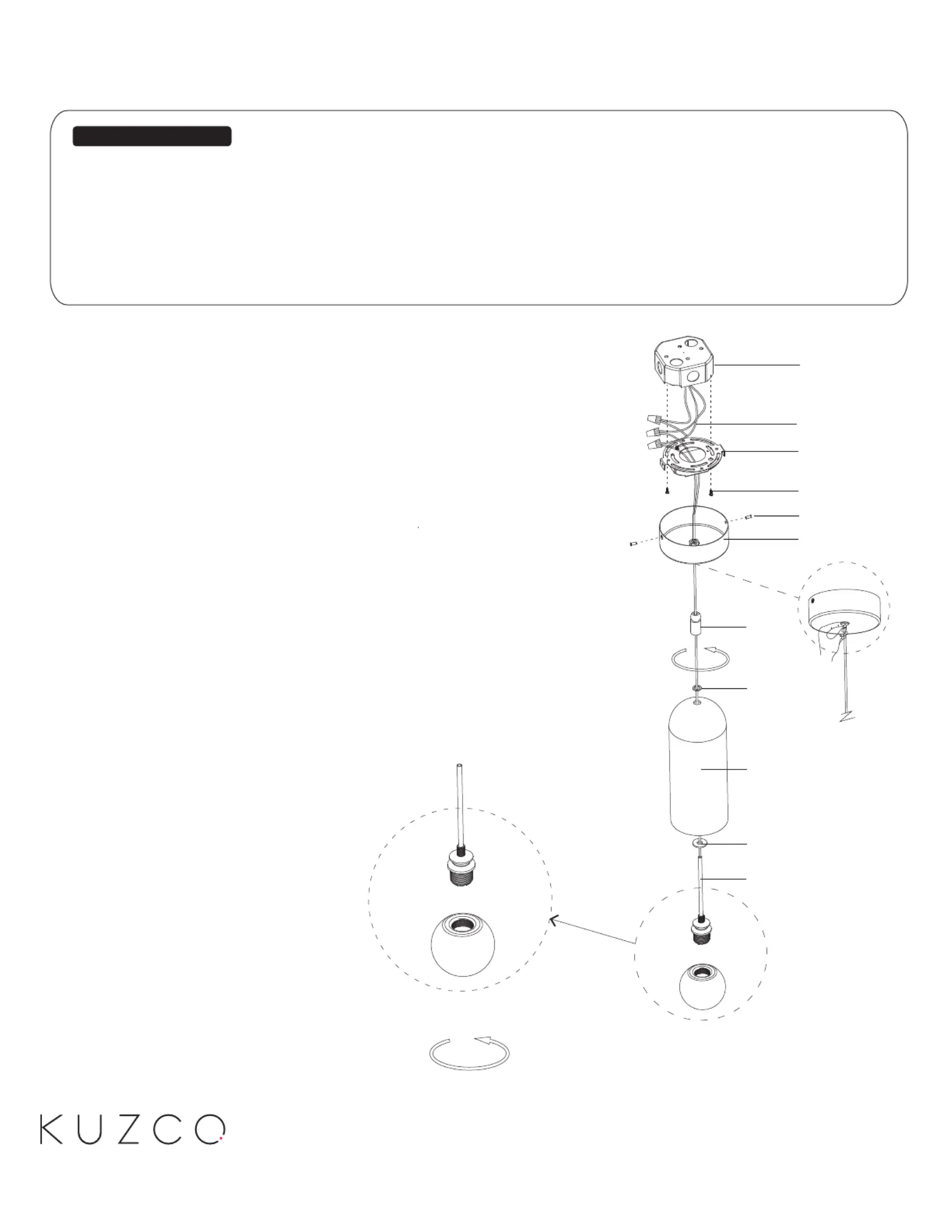

Remove the fixture from its original packaging. Next, remove

the mounting plate from the canopy by removing (1c)(2a)

the screws Attach the mounting plate to the (2b). (1c)

electical junction box using the two screws provided (1a)(1d)

in the hardware package.

Install the glass to the LED module . Next, thread (4b)(4a)

the metal tube through silicon , glass , silicon (3e)(3d)(3c)

(3b)(3a)Caution: to the nut . [ Do not tight the glass by metal

too hard]. Before you mount canopy to the mounting plate,

select the desired length you would like the fixture to hang

down from the ceiling. To set fixture hanging height, simply

push in the sleeve at the canopy. (2c)

Connect all wires correctly black to black “L”, white to (1b)

white “N” and the ground wire with provided marrettes from

the hardware package. Attach the canopy to the (2a)

mounting plate and secure with screws .(1c)(2b)

You have now completed the installation of your fixture, enjoy.
