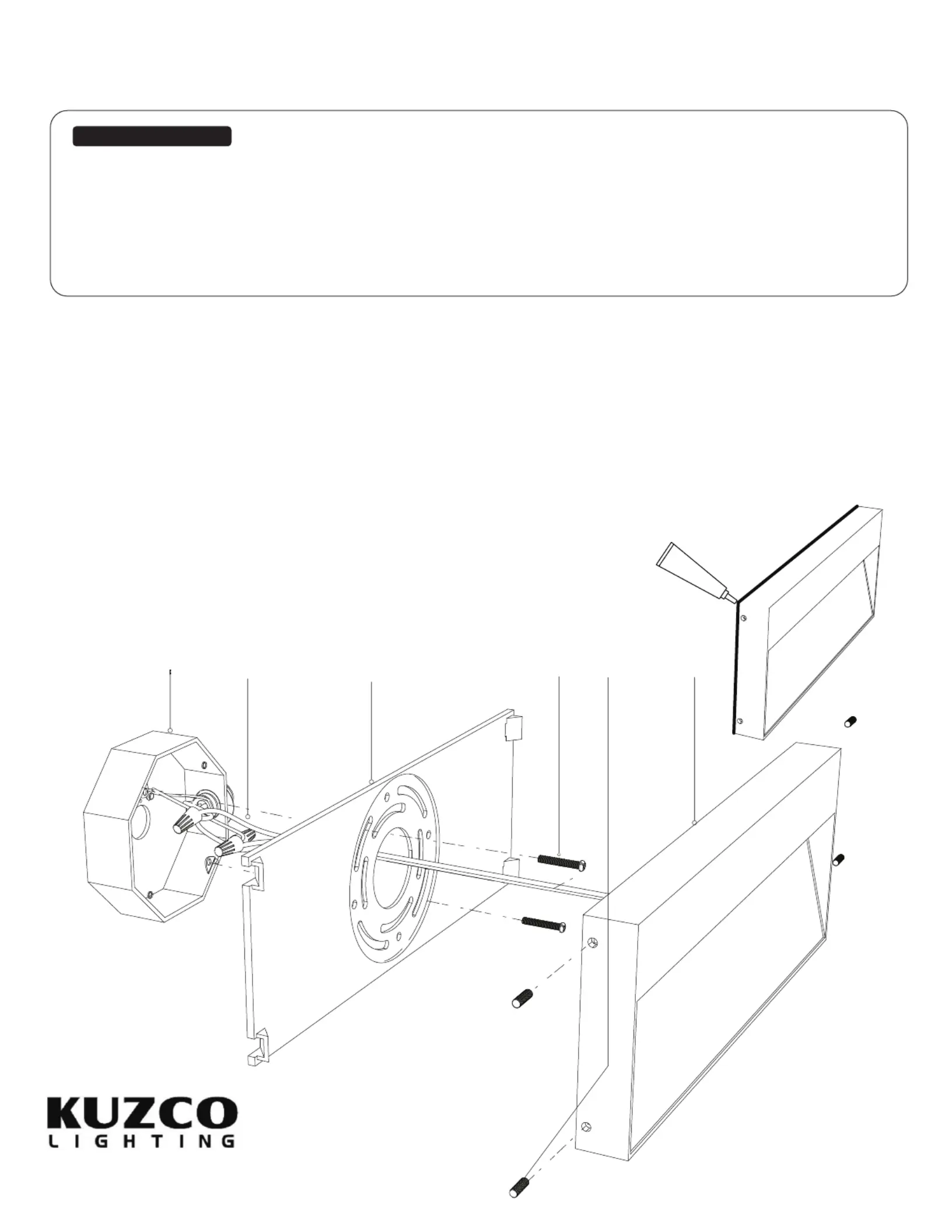

Remove the fixture from its original packaging. Remove the
mounting plate from within the canopy backplate (1c)(2b)
by unthreading four set screws Attach this backplate (2a).
(2b)(1a)(1d) to the electrical junction box , using screws
provided in the hardware package.
Attach the canopy backplate to the mounting plate, which
is attached to the electrical junction box on the wall. First
attach all wiring with the provided marrets (white to (1b)
white “N”, black to black “L”, ground to ground “G”). Now
place the canopy onto the mounting plate (2b)(1c). As
you move the backplate align the holes to the holes on the
mounting plate Next, turning clockwise tighten all (1c).
four set screws util the fixture is secure to the wall.(2a)
To prevent moisture from entering the outlet box and
causing a short, seal around the top and side perimeter
between the fixture and the wall surface with weather
resistant caulking (illustration 1). The space at bottom
should be left un-caulked to prevent moisture build-up.
Apply a small amount of weather resistant caulking around
the side perimeter between the cap nut and mounting
plate.
Illustration 1.
You have now completed the installation of your fixture,
enjoy.
Caulking
INSTALLATION SHEET
EW71412
LED Exterior Wall Sconce
START FROM HERE
•
Make sure power is completely off at the fuse box.
•
Have your fixture installed by a qualified licensed electrician
•
Prepare everything in a clear area.
•
Wear gloves at all times during this installation.
•
Read instructions carefully before you start assembly.
•
Keep this instruction sheet for future reference.
Technical Support: 1-877-452-6858
Please Note:
•All Kuzco LED fixtures come with pre-wired LED module(s).
• Unless instructed to do so, please do not touch any part of the LED module(s) as any
unnecessary contact with the module could cause permanent damage.
• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.
1.
2.
3.
4.
