INSTALLATION SHEET
WS18224
START FROM HERE
•
Make sure power is completely off at the fuse box.
•
Have your fixture installed by a qualified licensed electrician
•
Prepare everything in a clear area.
•
Wear gloves at all times during this installation.
•
Read instructions carefully before you start assembly.
•
Keep this instruction sheet for future reference.
Technical Support: 1-855-855-8926
LED Wall Sconce
1a.
2e.
2e.

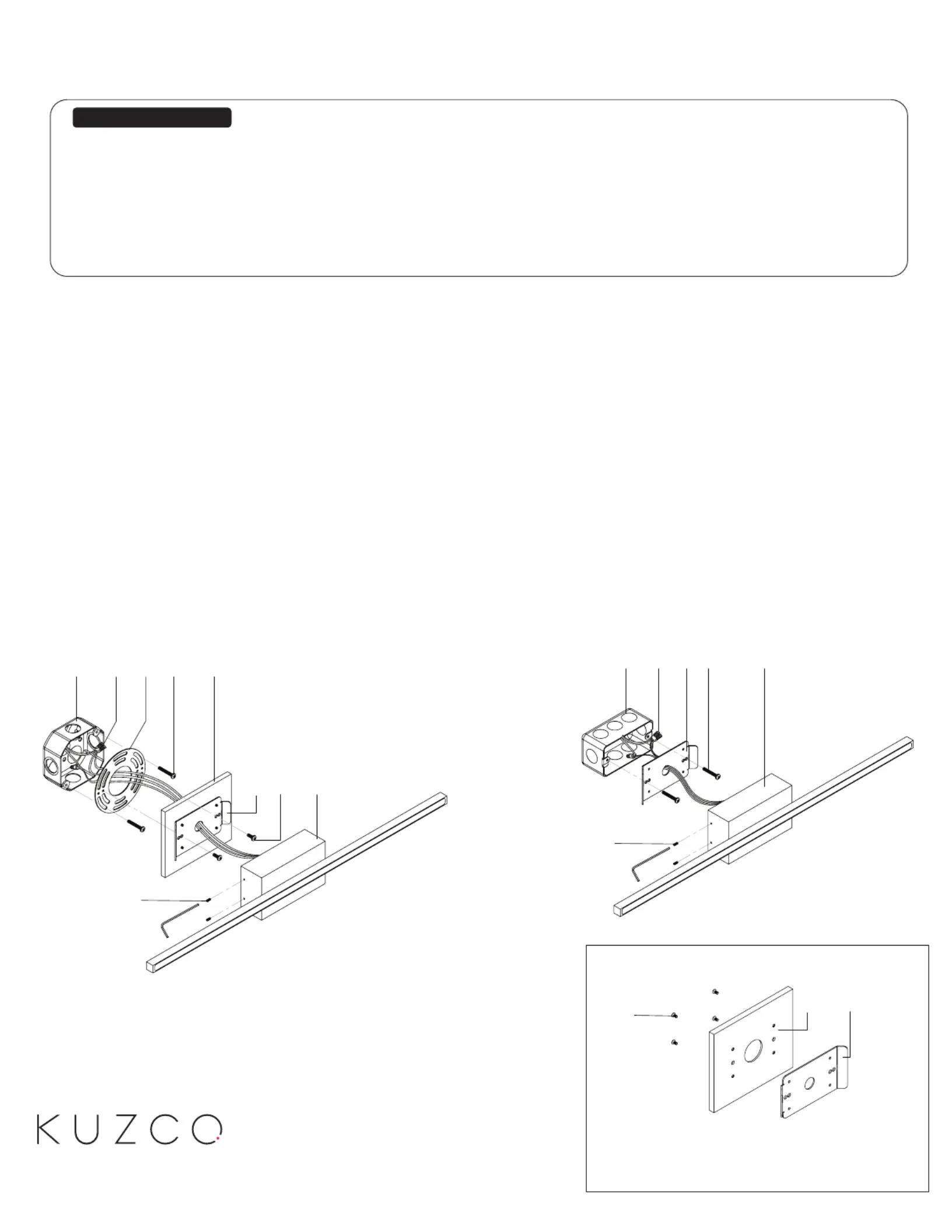

Octagon Junction Box Install
Illustration 1: Cover Plate + Backplate Asembly
*For Single Gang Box Installation, the backplate (2f) can
be detached from the cover plate (2d) by removing the
cover plate screws (2b).
Single Gang Box Install
1a. 1b. 2f.1e.2a.
1e. 2d.1b. 1c.
2f.2g.2a.
2d.2f.
2b.
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s)
• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary
contact with the module could cause permanent damage
• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W
20200716
: kuzcolighting.com
Remove the fixture from its original packaging. Next, remove
the cover plate and backplate assembly from the (2d)(2f)
canopy (2a) by removing the set screws (2e) with allen key.
Ensure that the backplate is secured to the cover plate (2f)
(2d)(2b) using the cover plate screws . See Illustration 1.
Install universal mounting plate to the electrical junction (1c)
box (1a) using the junction box screws (1e).
Secure the cover plate and backplate assembly to (2d)(2f)
the universal mounting plate using the mounting screws (1c)
(2g).
Connect all wires correctly: black to black “L”, white to white
“N” and ground wire to ground using the included wire nuts
(1b).
Attach the canopy to the backplate secure with (2a)(2f) and
set screws and allen key.(2e)
1.
2.
3.
4.
5.
6.
Remove the fixture from its original packaging. Next, remove
the cover plate and backplate assembly from the (2d) (2f)
canopy (2a) by removing the set screws (2e) with allen key.
The cover plate and the universal mounting plate (2d)(1c)
are not needed for single gang box installation. Only the
backplate (2f) is needed for single gang box installation. See
Illustration 1.
Install the backplate to the electrical junction box (2f)(1a)
using the junction box screws (1e).
Connect all wires correctly: black to black “L”, white to white
“N” and ground wire to ground using the included wire nuts
(1b).
Attach the canopy to the backplate and secure with (2a)(2f)
set screws and allen key.(2e)
1.
2.
3.
4.
5.
