INSTALLATION SHEET

PD1709

1.

Remove the fixture from its original packaging and remove

the fixture mounting plate from within the hardware

package.

2.

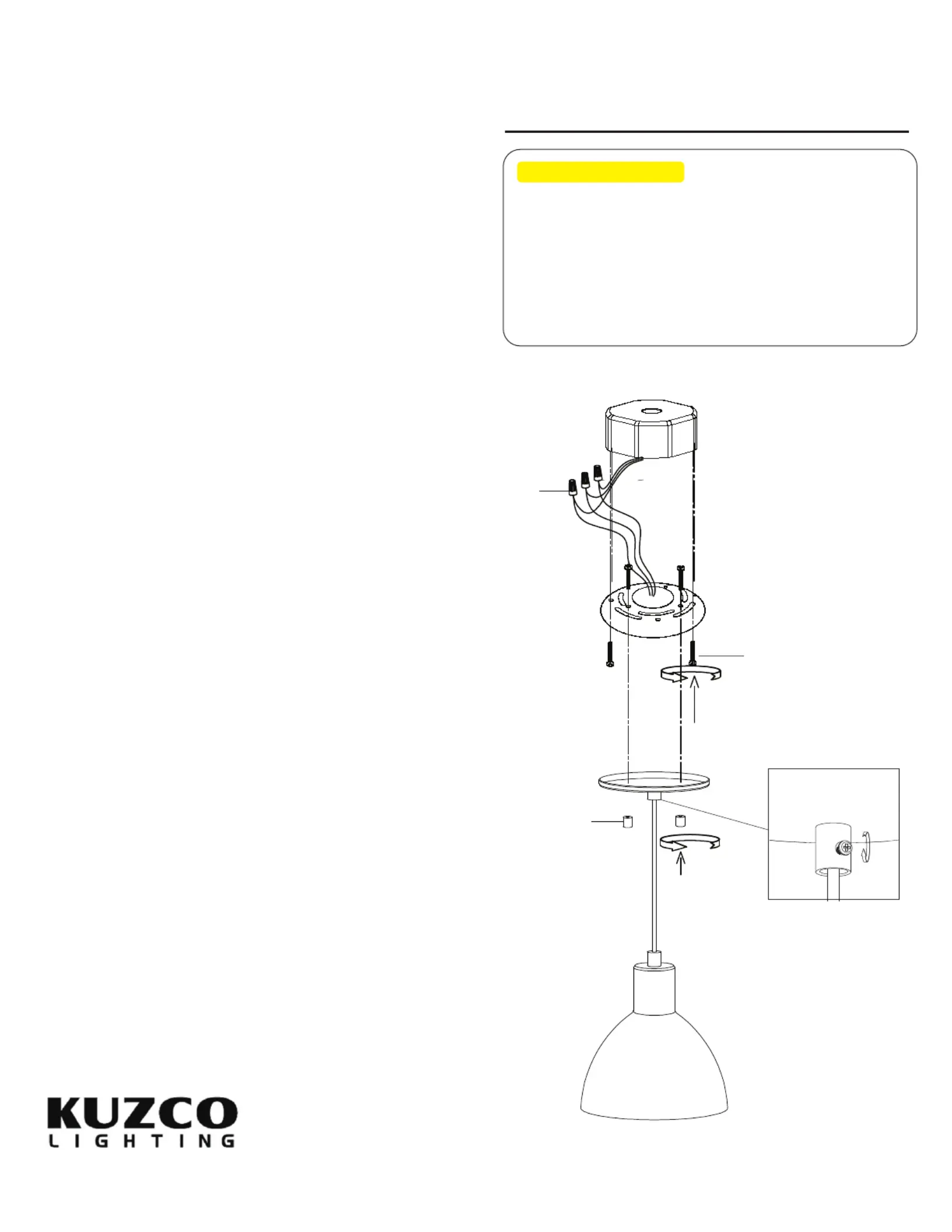

Attach the fixture to the mounting plate, which is attached to

the electrical junction box on the ceiling. First attach all

wiring (2a) with the provided marrets (white to white “N”, black

to black “L”, ground to ground “G”). Push the screws (2b)

through the holes in the back of the fixture so they are poking

through into the center of the fixture. If desired, adjust the

cables (2c) and thread to a maximum of 72 inches.

Once this is complete you can screw on the decorative nuts

(2d) until the fixture is secured to the ceiling.

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20140321

START FROM HERE

▪

▪

▪

▪

▪

▪

Make sure power is completely off at the fuse box.

Have your fixture installed by a qualified licensed

electrician

Prepare everything in clear area.

Wear gloves at all times during this installation.

Read instructions carefully before you start assembly.

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

Please Note:

•All Kuzco LED fixtures come with pre-wired LED

module(s).

• Unless instructed to do so, please do not touch any part

of the LED module(s) as any unnecessary contact with the

module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) dimmer is

required.

2b.

2d.

2a.

Single lamp LED pendant.

You have now completed the installation of your xture,

3.

2c.
