INSTALLATION SHEET

EB2936-UNV

Exterior Bollard LED

START FROM HERE

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

• Make sure POWER is COMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• 120~277V input

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required

Page 1 of 2

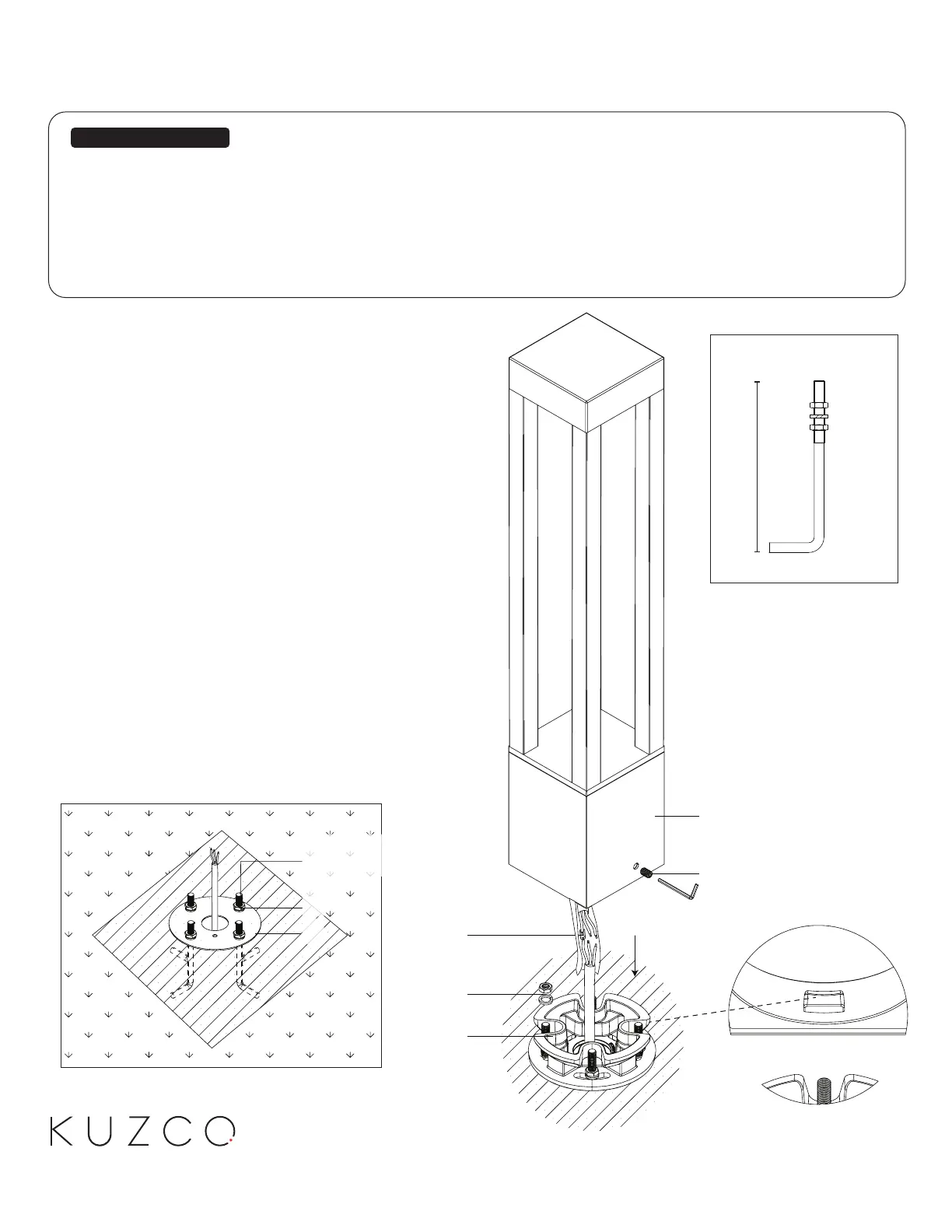

Illustration 2

1a.

2b.

1d.

1b.

2a.

1. Remove fixture from its original package

2. Provide means to bring supply wiring to bollard in accordance

with local code before pouring concrete

3. Secure anchor bolts (1c) to mounting guide plate (1e) with

hex nuts and washers provided (1d) before concrete cures

(illustration 1)

4. After concrete is set, replace mounting guide plate (1e) with

mounting base (2b), adjust mounting base to desired

orientation and secure with hex nuts and washers (1d)

5. Pull conduit through base plate to make proper electrical

connection (black to hot “L”, white to neutral “N”, ground to

“GND”) with wire nuts (1b) provided in hardware package, tie

access wires to avoid contact with ground

6. Align interior bump on fixture (1a) with slot on mounting base

(2b) (illustration 2), rotate to desired orientation, and secure

fixture (1a) to mounting base (2b) with set screw (2a) with allen

key provided

Illustration 1

Anchor Bolt

1c. (M10 x 1.5mm

concrete anchor bolt)

1d.

1e

20240318

x 4

6-3/8”
