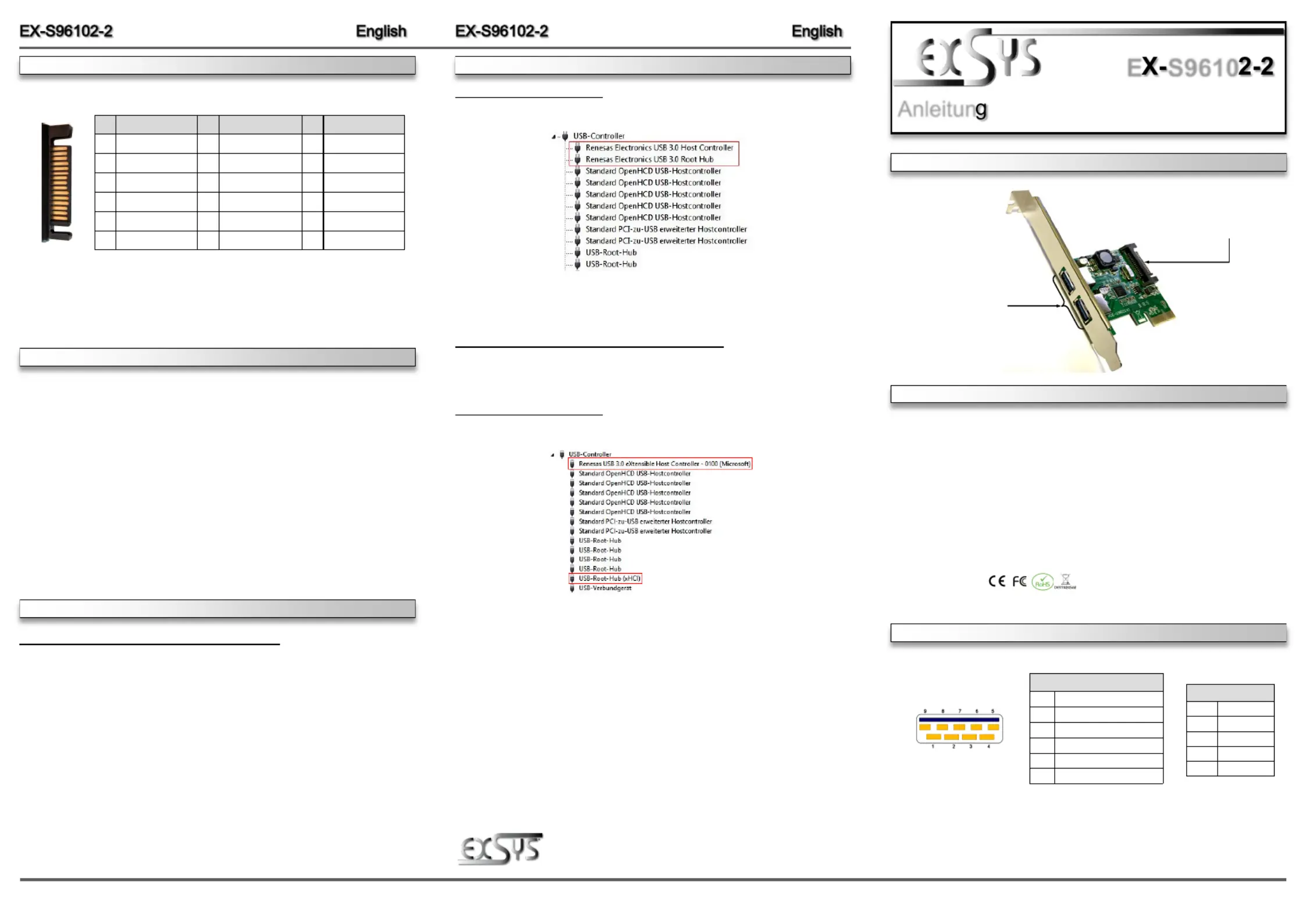

Die EXS961022 ist eine USB 3.2 (Gen1) PCIe Karte. Sie ist mit 2 externen Ports ausgestattet, --

die jeweils 900mA Strom zu Verfügung stellen. Die EXS961022 unterstützt die volle Leistung --

von 900mA an beiden externen Ports ohne das Sie zusätzlichen Strom vom PCNetzteil benöti--

gen. Sie unterstützt alle PCIe Slots von x1 bis x16. Der PCIExpress Bus unterstützt optimal die -

Leistung des schnellen Renesas Chipsatz. Die EXS961022 gewährleistet so eine sichere --

Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde! Sie unterstützt

alle USB Anschlüsse von 1.1 bis 3.2. Mit der EXS961022 wird ein Low Profile Bügel mitgelie---

fert für schmale PCGehäuse bis maximal 8cm Bauhöhe.-

Kompatibilität:PCIExpress p1-x1 bis x16-

Betriebssysteme:Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx

Anschlüsse:2x USB 3.2 Gen 1 ABuchse extern, 1x 4pin Molex--

Lieferumfang:S96102 Low Profile Bügel, AnleitungEX--2,

Zertifikate:

1

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Anleitun

Vers. 1.0 / 07.12.20

ES9610

CHECK INSTALLED DRIVER:

Open the >Device manager<. Now you should see at „USB-Controller“ the following new entry's:

If you see this or a similar information the device is installed correctly.

Windows 8.x/ 10/ Server 2012R2 / Server 2016

After the hardware installation, the operating system will recognize the device automatically and

install the drivers.

CHECK INSTALLED DRIVER:

Open the >Device manager<. Now you should see at „USB-Controller“ the following new entry's:

If you see this or a similar information the device is installed correctly.

ANSCHLÜSSE

HARDWAREINSTALLATION

CONNECTORS

DRIVER INSTALLATION

Please note the following installation instructions. Because there are large differences between the

PC’s, we can give you only a general installation instructions for the EXS96102--2. Please refer

your computers reference manual whenever in doubt.’

1.Turn off the power to your computer and any other connected peripherals.

2.Remove the mounting screws located at the rear and/or sides panels of your Computer and

gently slide the cover off.

3.If necessary please install now the external power supply to the card (see at Jumper

Setting & Connectors at U8).

4.Locate an available PCIe expansion slot and insert the card. Make sure that the card is

plugged in correctly.

5.Then attach the card with a screw to the rear panel of the computer.

6.Gently replace your computers cover and the mounting screws.’

Windows XP/ Vista/ 7/ Server 2003 & 2008R2

After the hardware installation is complete, the operating system automatically detects the card

and installs it. If the driver should not be installed automatically, please download the driver from

our homepage (www.exsys.de) or (www.exsys.ch) first. Now select the folder of your operating

system and install the driver. Follow the installation instructions and complete the installation.

Important! Restart your PC after the installation.

Follow the installation instructions and complete the installation.

Windows will now install automatically you right driver for your particular operating system. After

the installation the operating system detects the card and automatically install them.

DRIVER INSTALLATION

J1 & J2:

USB 2.0 Pins‘

PinSignal

1VCC

2DATA-

3DATA+

4GND

USB 3.0 Pins‘

PinSignal

5SSTX+

6SSTX-

7GND

8SSRX+

9SSRX-

C11 & C12:

2x externe USB 3.2 (Gen1)

ABuchse-

U8:

SATA 15 Pin Power

Anschluss vom PCNetzteil-

U8:

PinAssignmentPin AssignmentPinAssignment

13.3 Volt (Orange)5 Volt (precharge)12 Volt (pre 7 - 13 - charge)

23.3 Volt (Orange)85 Volt (Red)12 Volt (Yellow) 14

33.3 Volt (precharge)95 Volt (Red)- 1512 Volt (Yellow)

4Ground (Black) 10Ground (Black)

5Ground (Black) 11Reserve

6Ground (Black) 12Ground (Black)

To guarantee the full 900mA at all ports of the EXS961022, it is recommended that the card --

be connected with the power supply of the PC.

Please make sure you connect the plug in the right direction.!

Never connect or release the plug while the PC is supplied with power!

Switzerland:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Germany:

EXSYS Vertriebs GmbH

Industriestrasse 8

61449 Steinbach

www.exsys.de
