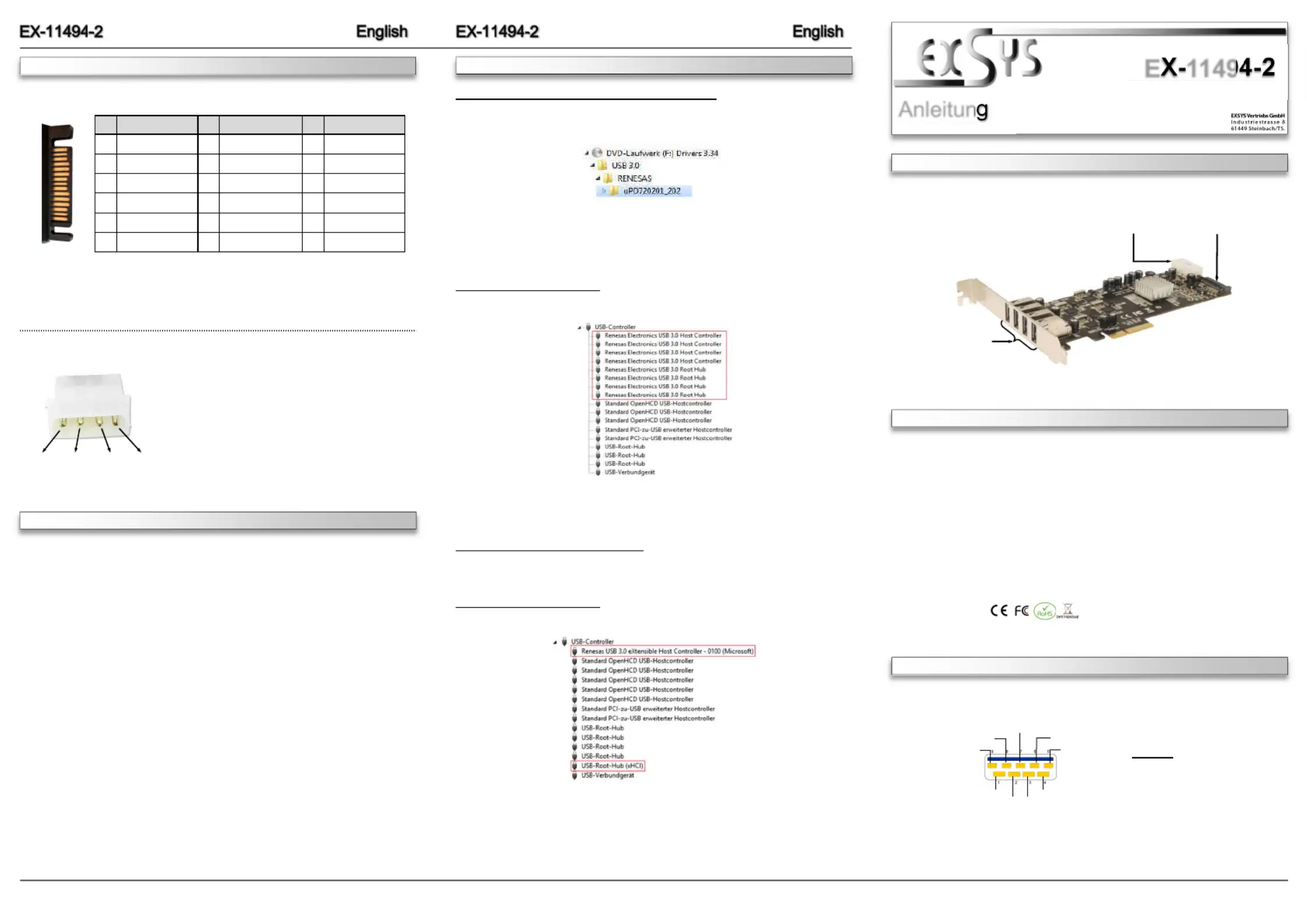

Die EX114942 ist eine USB 3.1 (Gen1) 4 Port Quad Channel PCIExpress Karte. Sie ist mit 4 ---

externen Port‘s ausgestattet, die jeweils 900mA Strom zu Verfügung stellen. Sie unterstützt alle

PCIExpress Slots von p1-x4 bis x16. Der serielle PCIExpress Bus unterstützt optimal die Leistung --

des schnellen RENESAS Chipsatz. Zusätzlich besitzt jeder einzelne USB 3.1 (Gen1) Port einen

eigenen Chip und somit auch einen eigenen Channel. Die EX114942 gewährleistet so eine --

sichere Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde an jedem

Port! EX--114942 benötigt zusätzlichen Strom vom PC Netzteil, um die volle Leistung von

900mA an den 4 externen Port‘s zu gewährleisten.

ANSCHLÜSSE

CN1CN4: -

4x USB 3.1 (Gen1)

ABuchse für Endgeräte-

J2:

4 Pin Molex Power

Anschluss vom

PCNetzteil-

J1:

SATA 15 Pin

Power Anschluss

vom PCNetzteil-

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Anleitun

Vers. 1.1 / 15.05.2019

E1149

Kompatibilität:PCIExpress p1-x4 bis x16, USB 1.1, 2.0, 3.0 & 3.1-

Betriebssysteme:Windows XP/ Vista/ 7/ 8.x/ 10/Server 20xx/ Linux

Anschlüsse:4x USB 3.1(Gen1) A-Buchse, 1x 4 Pin Molex, 1x SATA 15 Pin

Lieferumfang:EX114942, Low Profile Bügel, Treiber CD, Anleitung--

Zertifikate:

Achtung!

Stecker niemals umgekehrt

oder mit Gewalt einstecken.

USB 3.1 (Gen1) ABuchse:-

StdB_SS

StdB_SS

GND_DR

VCC

StdB_SS

StdB_SS

D+

D-

GND

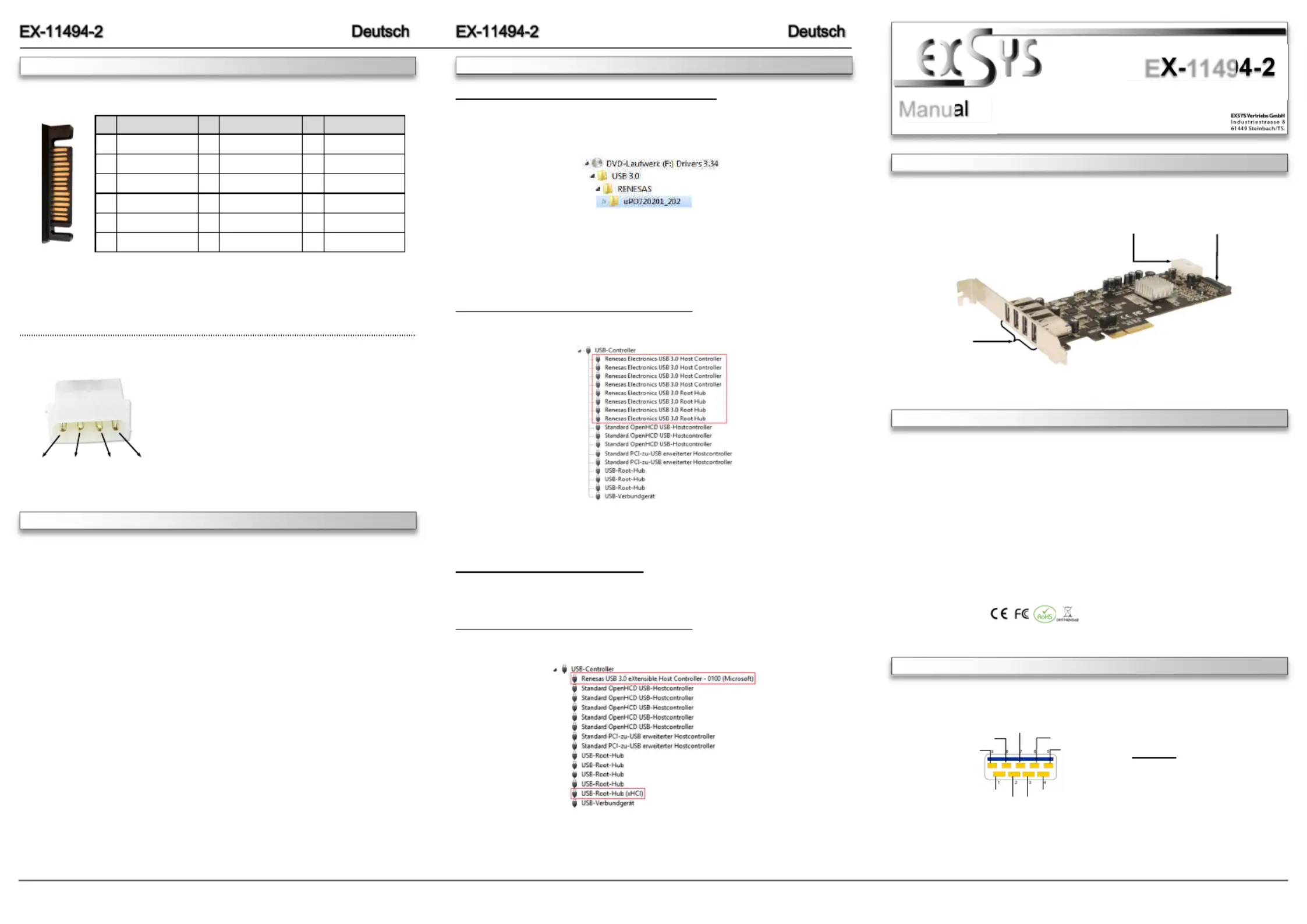

HARDWAREINSTALLATION

CONNECTORS

DRIVERINSTALLATION

J2:

J1:

PinAssignmentPinAssignment

13.3 Volt (Orange)7 5 Volt (precharge) -

23.3 Volt (Orange)85 Volt (Red)

33.3 Volt (precharge)95 Volt (Red)-

PinAssignment

1312 Volt (pre- charge)

1412 Volt (Yellow)

1512 Volt (Yellow)

4Ground (Black) 10Ground (Black)

5Ground (Black) 11Reserve

6Ground (Black) 12Ground (Black)

For using the EX114942 you must connect the card with the PC power supply. It must be --

connected only one power connector J1 J2! Please make sure you connect the plug in the OR

right direction.

Never connect or release the plug while the PC is supplied with power!

1 +12V2 GND3 GND4 +5V

For using the EX114942 you must connect the card with --

the PC power supply. It must be connected only one power

connector J1 J2! Please make sure you connect the plug OR

in the right direction.

Never connect or release the plug while the PC is

supplied with power!

Please note the following installation instructions. Because there are large differences between the

PC’s, we can give you only a general installation instructions for the EX-11494-2. Please refer your

computer’s reference manual whenever in doubt.

1.Turn off the power to your computer and any other connected peripherals.

2.Remove the mounting screws located at the rear and/or sides panels of your Computer and

gently slide the cover off.

3.Locate an available PCI-Express expansion slot and insert the card. Make sure that the card

is plugged in correctly.

4.Now install the power supply via the SATA 15 pin connector or the 4 pol molex connector.

(see picture Connectors J1 or J2)

5.Then attach the card with a screw to the rear panel of the computer.

6.Gently replace your computer’s cover and the mounting screws.

Windows XP/ Vista/ 7/ Server 2003 & 2008R2

After starting Windows is recognizes a new .Start the “USB (Universal Serial Bus)Controller“-

„“ file which is in the “uPD720201_202” folder (see picture):SETUP

Follow the installation instructions and complete the installation.

Windows will now install automatically you right driver for your particular operating system. After

the installation the operating system detects the card and automatically install them.

CHECK INSTALLED DRIVER

Open the >Device manager<.Now you should see at „USB-Controller“ the following new entry's:

If you see this or a similar information the device is installed correctly.

Windows 8.x/ 10/ Server 2012R2

After the hardware installation, the operating system will recognize the device automatically and

install the drivers.

CHECK INSTALLED DRIVER

Open the >Device manager<. Now you should see at „USBController“ -the following new entry's:

If you see this or a similar information the device is installed correctly.
