Die EX11042 ist eine USB 3.2 Gen 1 PCIe Karte. Sie ist mit zwei externen Ports ausgestattet, -

die jeweils 900mA Strom zu Verfügung stellen. Die EX11042 benötigt über den 4Pin Molex --

Anschluss zusätzlichen Strom vom PCNetzteil. Sie unterstützt alle PCIe Slots von x1 bis x16. -

Der PCIExpress Bus unterstützt optimal die Leistung des schnellen NEC Chipsatz. Die EX--

11042 gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu

5Gbit pro Sekunde! Sie unterstützt alle USB Anschlüsse von 1.1 bis 3.2. Mit der EX11042 wird -

ein Low Profile Bügel mitgeliefert für schmale PCGehäuse bis maximal 8cm Bauhöhe.-

Kompatibilität:PCIExpress p1-x1 bis x16-

Betriebssysteme:Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx

Anschlüsse:2x USB 3.2 Gen 1 ABuchse extern, 1x 4Pin Molex Power Anschluss--

Lieferumfang:11042, Low Profile Bügel, AnleitungEX-

Zertifikate:

1

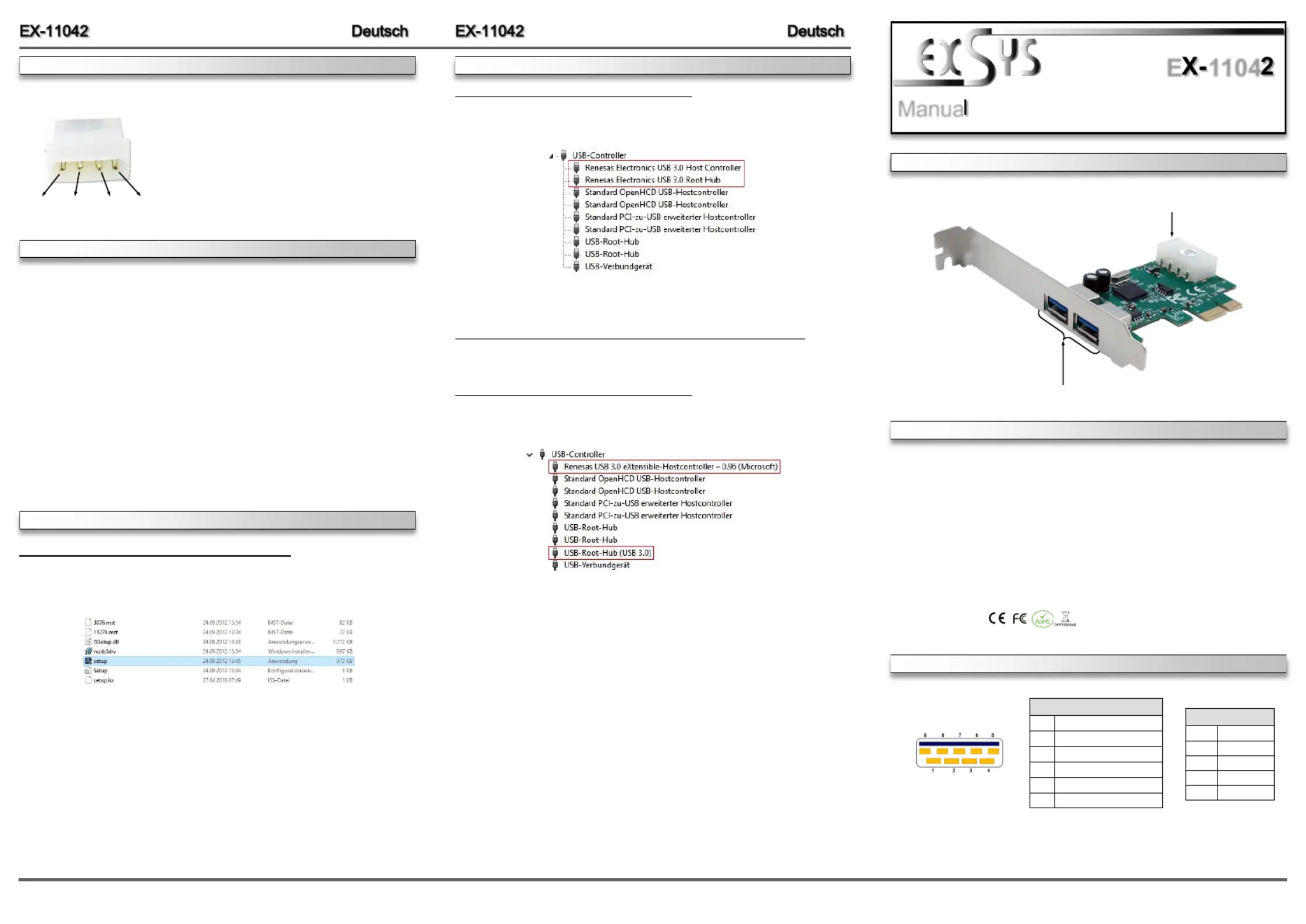

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Anleitun

Vers. 1.0 / 30.05.22

E1104

ANSCHLÜSSE

J3 & J4: 2x externe USB 3.2 Gen 1 ABuchse-

J3 & J4:

USB 2.0 Pins‘

PinSignal

1VCC

2DATA-

3DATA+

4GND

USB 3.2 Pins‘

PinSignal

5SSTX+

6SSTX-

7GND

8SSRX+

9SSRX-

JP1: 4Pin Molex Power Anschluss für PCNetzteil--

HARDWAREINSTALLATION

DRIVER INSTALLATION

Please note the following installation instructions. Because there are large differences between the

PC’s, we can give you only a general installation instructions for the EX11042. Please refer your -

computer’s reference manual whenever in doubt.

1.Turn off the power to your computer and any other connected peripherals.

2.Remove the mounting screws located at the rear and/or sides panels of your Computer and

gently slide the cover off.

3.Locate an available PCI-Express expansion slot and insert the card. Make sure that the card

is plugged in correctly.

4.Now install the power supply via the 4-Pin Molex power connector. (see at Connectors at JP1)

5.Then attach the card with a screw to the rear panel of the computer.

6.Gently replace your computers cover and the mounting screws.’

Windows XP / Vista / 7 / Server 2003 & 2008R2

After starting Windows is recognizes a new .Please ““USB (Universal Serial Bus)Controller-

download the driver from our homepage (www.exsysshop.de) first. Start the application -“setup“

which is in the folder (see picture):

Follow the installation instructions and complete the installation.

Windows will now install automatically you right driver for your particular operating system. After

the installation the operating system detects the card and automatically install them.

DRIVER INSTALLATIONCONNECTORS

JP1:

1 +12V2 GND3 GND4 +5V

For using the EX11042 you need connect the card with the -

PC power supply.

Please make sure you connect the plug in the right

direction!

Attention! Never connect or release the plug while the

PC is supplied with power!

CHECK INSTALLED DRIVER

Open the >Device manager<.Now you should see at „USBController-“ the following new entry's:

If you see this or a similar information the device is installed correctly.

Windows 8.x / 10 / 11 / Server 2012R2 & 2016 & 2019 & 2022

After the hardware installation, the operating system will recognize the device automatically and

install the drivers.

CHECK INSTALLED DRIVER

Open the >Device manager<.Now you should see at „USBController-“ the following new entry's:

If you see this or a similar information the device is installed correctly.
