Gigabit Ethernet Media Converter
Quick Start Guide
This quick start guide describes how to install and use the Gigabit Ethernet media converter. The
converter introduced here provides one channel media conversion solution.

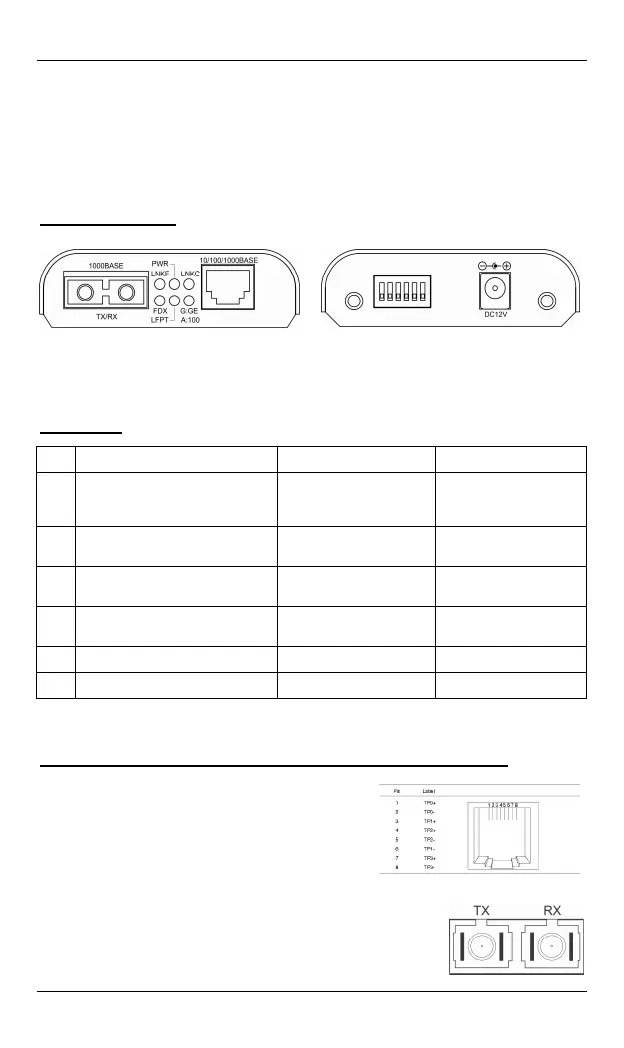

Physical Description
Product Overview
This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied AC to DC power
adaptor to the receptacle on the rear panel of the Gigabit Ethernet media converter, and then attach the
plug into a standard AC outlet.
DIP Switch
No. Down Up
1 Disable LFPT Enable LFPT
LFPT:
Link-Fault-Pass-Through
function
2 Enable Auto-Negotiation for TX port
Enable Force mode for TX
port
3 TX port Force mode: Full-duplex
TX port Force mode:
Half-duplex
4 TX port Force mode: 100Mbps
TX port Force mode:
10Mbps
5 Function reserved Function reserved
6 Function reserved Function reserved
<Note> Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of 10/100/1000Base-TX port.
The 1000Base-SX/LX Connection
The Tx (transmit) port of device I is connected to the Rx (receive) port of
device II, and the Rx (receive) port of device I to the Tx (transmit) port of
device II.
User’s Manual 1
