Hardened Media Converter

Quick Start Guide

This quick start guide describes how to install and use the hardened media

converter. This is the media converter of choice for harsh environments

constrained by space.

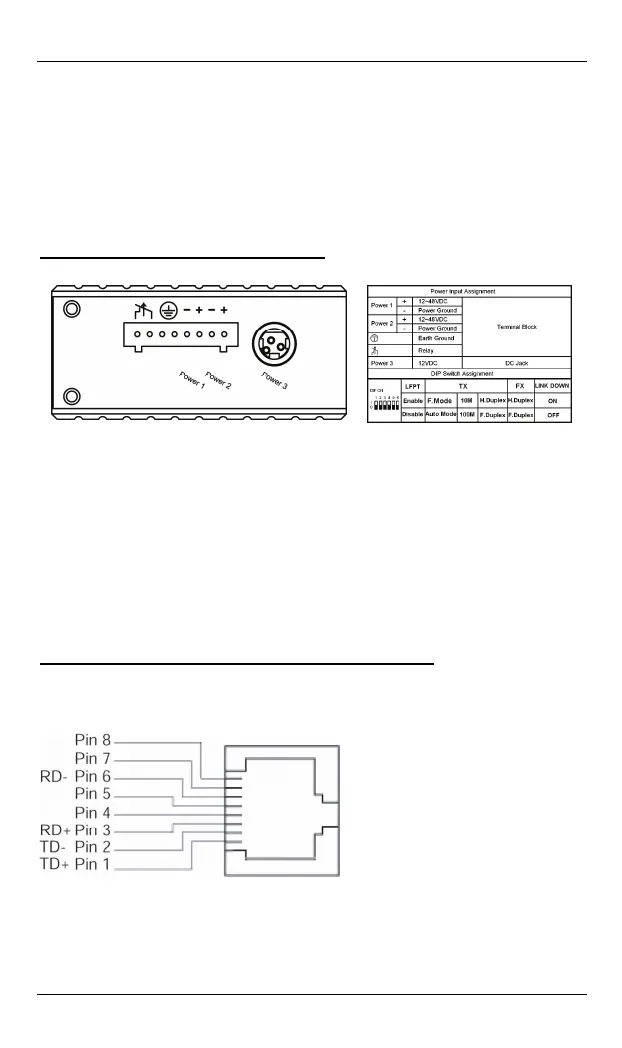

Physical Description

The Terminal Block and Power Inputs

zDC Terminal Block Power Inputs: There are two pairs of power inputs

can be used to power up this media converter. Redundant power

supplies function is supported. You need to have two power inputs

connected to run the media converter, but the FAULT LED indicator will

light up to remind that the power redundant system functions abnormal in

case either PWR1 or PWR2 is dead. Media Converter, however,

continues working normally even fault LED indicator lights up.

zDC JACK Power input: 12VDC.

The 10/100Base-TX and 100Base-FX/BX Connectors

1. The 10/100Base-TX Connections

The following lists the pinouts of 10/100Base-TX ports.

1
