EX-100-G2
4K HDBaseT Extender Set with Bi-directional PoC, IR, RS232
Quickstart Guide
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
IMPORTANT! Installation
• Visit the product page to download the latest rmware, document
versions, additional documentation, and conguration tools.
• Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Copyright © 2025 WyreStorm ProAV Corporation | wyrestorm.com
EX-100-G2 Quickstart Guide | 250716
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
1 of 4
In the Box
1x EX-100-G2 Transmitter Unit
1x EX-100-G2 Receiver Unit
1x 18V/1A Power Supply (US/EU/UK/AU)
2x 3.5mm 3-pin Male Phoenix Connector
1x IR Emitter
1x IR Receiver
4x Mounting Brackets (2x TX | 2x RX)
1x Quickstart Guide (this document)

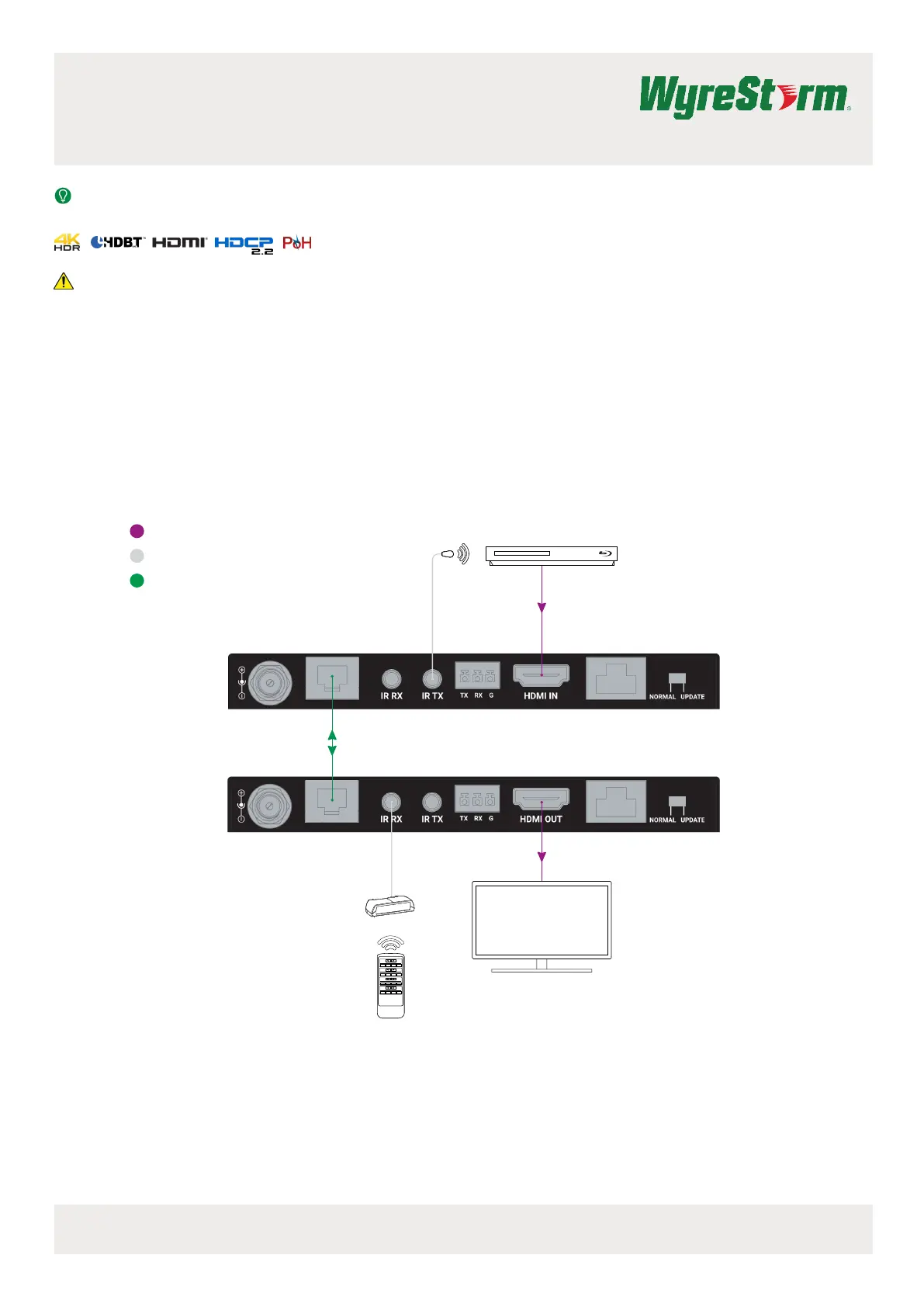

Basic Wiring Diagram
Blu-ray Player
Display
CATx Cable
Transmitter
Receiver
IR Emitter
IR Receiver
Remote
KEY
HDMI
HDBT
Control
