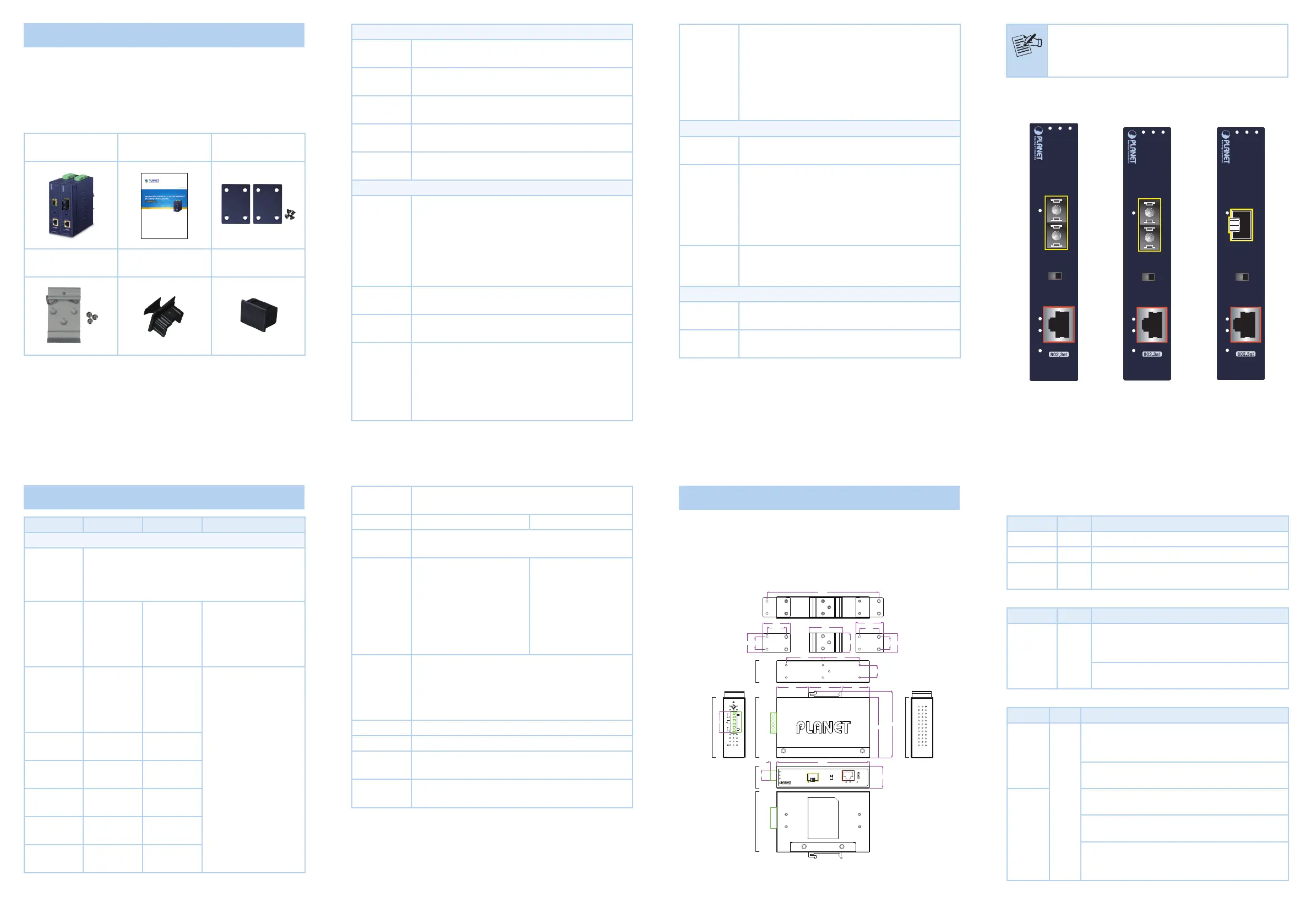

1. Package Contents

Thank you for purchasing PLANET industrial 100/1000X to

10/100/1000T 802.3at PoE+ Media Converter, IGTP-80xT series.

In the following sections, the term “Industrial PoE+ Media

Converter” means the IGTP-80xT series.

Open the box of the Industrial PoE+ Media Converter and carefully

unpack it. The box should contain the following items:

Industrial PoE+

Media Converter x 1

User’s Manual x 1Wall-mount Kit x 1

DIN-rail Kit x 1RJ45 Dust Caps x 1SFP/SC Dust Cap x 1

If any of these are missing or damaged, please contact your dealer

immediately; if possible, retain the carton including the original

packing material, and use them again to repack the product in case

there is a need to return it to us for repair.

Power Over Ethernet

PoE

Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Power

Output

52V DC: 15.4 watts

52V DC: 30 watts

PoE Power

Supply Type

End-span

Power Pin

Assignment

1/2(+), 3/6(-)

PoE Power

Budget

30 watts

Hardware Specications

Speed

Twisted-pair:

10/20Mbps for half/full duplex

100/200Mbps for half/full duplex

1000/2000Mbps for full duplex

Fiber Optic:

200Mbps/2000Mbps for full duplex (IGTP-805AT)

2000Mbps for full duplex (IGTP-802T/IGTP-802TS)

Flow Control

Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex mode

Maximum

Frame Size

9K

LED

System: Power 1, Power 2 (Green) and

Alarm LED (Red)

Fiber 1000BASE-X: LNK/ACT (Green)

TP 10/100/1000BASE-T: LNK/ACT, 1000 LNK/ACT

(Green)

PoE: Power-in-use (Amber)

Note

The above drawing is based on IGTP-805AT. The only

difference between the three models is the fiber optic

interface.

 Front Panels

P1P2

TX

RX

OFFON

LNK/

ACT

LNK/

ACT

1000

PoE-

in-Use

Alarm

IGTP-802T

1000BASE-SX

LFP

Ethernet+DC

10/100/1000T

802.3at

P1P2

TX

RX

OFFON

LNK/

ACT

LNK/

ACT

1000

PoE-

in-Use

Alarm

IGTP-802TS

1000BASE-LX

LFP

Ethernet+DC

10/100/1000T

802.3at

P1P2

OFFON

LNK/

ACT

LNK/

ACT

1000

PoE-

in-Use

Alarm

IGTP-805AT

100/1000X

LFP

Ethernet+DC

10/100/1000T

802.3at

Figure 2: IGTP-802TFigure 3: IGTP-802TSFigure 4: IGTP-805AT

Cables

10/100/1000BASE-T:

2-pair UTP Cat. 3, 4, 5, 5e, 6

(maximum 100 meters)

EIA/TIA-568 100-ohm STP

(maximum 100 meters)

100BASE-FX/1000BASE-SX/LX:

Multi-mode: 50/125μm or 62.5/125μm optical ber

Single-mode: 9/125μm optical ber

Standards Conformance

Regulatory

Compliance

FCC Part 15 Class A, CE

Protocols

and

Standards

Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Stability

Testing

IEC60068-2-32 (free fall)

IEC60068-2-27 (shock)

IEC60068-2-6 (vibration)

Environment

Temperature

Operating: -40~75 degrees C

Storage: -40~85 degrees C

Humidity

Operating: 5~90% (non-condensing)

Storage: 5~90% (non-condensing)

2.ProductSpecications

ProductIGTP-802TIGTP-802TS

IGTP-805AT

Ethernet Interface

Copper

10/100/1000BASE-T Ethernet TP interface.

Maximum 100m distance.

Auto-negotiation, auto MDI/MDI-X with PoE injector

function

1000BASE-X

Fiber-optic

Connector

Type

SCSC

SFP (LC)

Supports

1000BASE-SX/LX/BX

and 100BASE-FX SFP

module

Fiber Cable

Multi-mode:

50/125µm

or

62.5/125µm

optic ber

Single-mode:

9/125µm

optic ber

Varying on SFP Module

Fiber Cable

Distance

220m &

550m

20km

Fiber Optic

Frequency

850nm1310nm

Launch

Power

Max. -3dBm

Min. -10dBm

Max. -3dBm

Min. -9dBm

Receive

Sensitivity

-20dBm-23dBm

Maximum

Input Power

-3dBm-3dBm

Dimensions

(W x D x H)

32 x 87 x 135 mm

Weight416g420g

Unit Input

Voltage

12 ~ 48V DC

24V AC

Power

Consumption

System on:

AC 24V: 4.5W/15BTU

DC 12V: 4.6W/15BTU

DC 48V: 4.5W/15BTU

Full Loading:

AC 24V: 23.5W/80BTU

DC 12V: 48W/163BTU

DC 48V: 47.5W/162BTU

System on:

AC 24V: 2.8W/9.5BTU

DC 12V: 2.6W/8.8BTU

DC 48V: 2.8W/9.5BTU

Full Loading:

AC 24V: 23.1W/78BTU

DC 12V: 46.8W/159BTU

DC 48V: 47W/160BTU

DIP Switch

OFF: LFP (Link Fault Passthrough) disable

ON: LFP (Link Fault Passthrough) enable

FEF (Far End Fault) works with LFP to prevent

data loss

LFP is turned o by default on the DIP switch.

EnclosureIP30 metal case

InstallationDIN-rail kit and wall-mount ear

ESD

Protection

6KV DC

Alarm

Provides one relay output for power failure

Alarm relay current carry ability: 1A @ DC 24V

3. Hardware Introduction

3.1 Three-View Diagram

The three-view diagram of the Industrial PoE+ Media Converter

consists of Ethernet interfaces and one removable 6-pin terminal

block. The LED indicators are also located on the front panel.

 IGTP-805AT/IGTP-802T/IGTP-802TS:

32.00

135.00

87.80

97.10

48.8046.5039.70

28.00

48.80

53.5053.50

18.00

15.20

30.00

9.20

40.00

28.0018.00

28.00

18.0028.00

28.00

40.00

163.00

Top View

Side ViewFront View

Mounting Kit

Mounting Kit

DIN-Rail Kit

Side View

Rear View

Unit: mm

Bottom View

P1P2

OFFON

LNK/

ACT

LNK/

ACT

1000

PoE-

in-Use

Alarm

IGTP-805AT

100/1000X

LFP

Ethernet+DC

10/100/1000T

802.3at

Max. Fault Alarm Loading: 24V, 1A

V1+

V2+

PWR1

PWR2Alarm

DC Input: 12-48V

, 3A max.

AC Input: 24V

, 1.5A max.

Figure 1: Three-View Diagram

3.2LEDDenition:

 System

LEDColorFunction

P1GreenLit: indicates power 1 has power.

P2GreenLit: indicates power 2 has power.

AlarmRed

Lit: indicates either power 1 or power 2 has

no power.

Gigabit Fiber Interface

LEDColorFunction

Fiber

LNK/ACT

Green

Lit:indicates that the ber optic port is

successfully connecting to the network at

100Mbps or 1000Mbps.

Blinks:Indicates the ber optic port is

receiving or sending data.

 Gigabit TP Interface

LEDColorFunction

TP

LNK/ACT

Green

Lit: indicates that the Gigabit Ethernet Port

is successfully connecting to the network at

10/100/1000Mbps.

Blinks: indicates the Gigabit Ethernet Port is

receiving or sending data.

TP 1000

LNK/ACT

Lit: indicates that the Gigabit Ethernet Port is

successfully connecting to the network at 1000Mbps.

Blinks: indicates the Gigabit Ethernet Port is

receiving or sending data.

OFF: indicates the Gigabit Ethernet Port is

successfully connecting to the network at

10/100Mbps.
