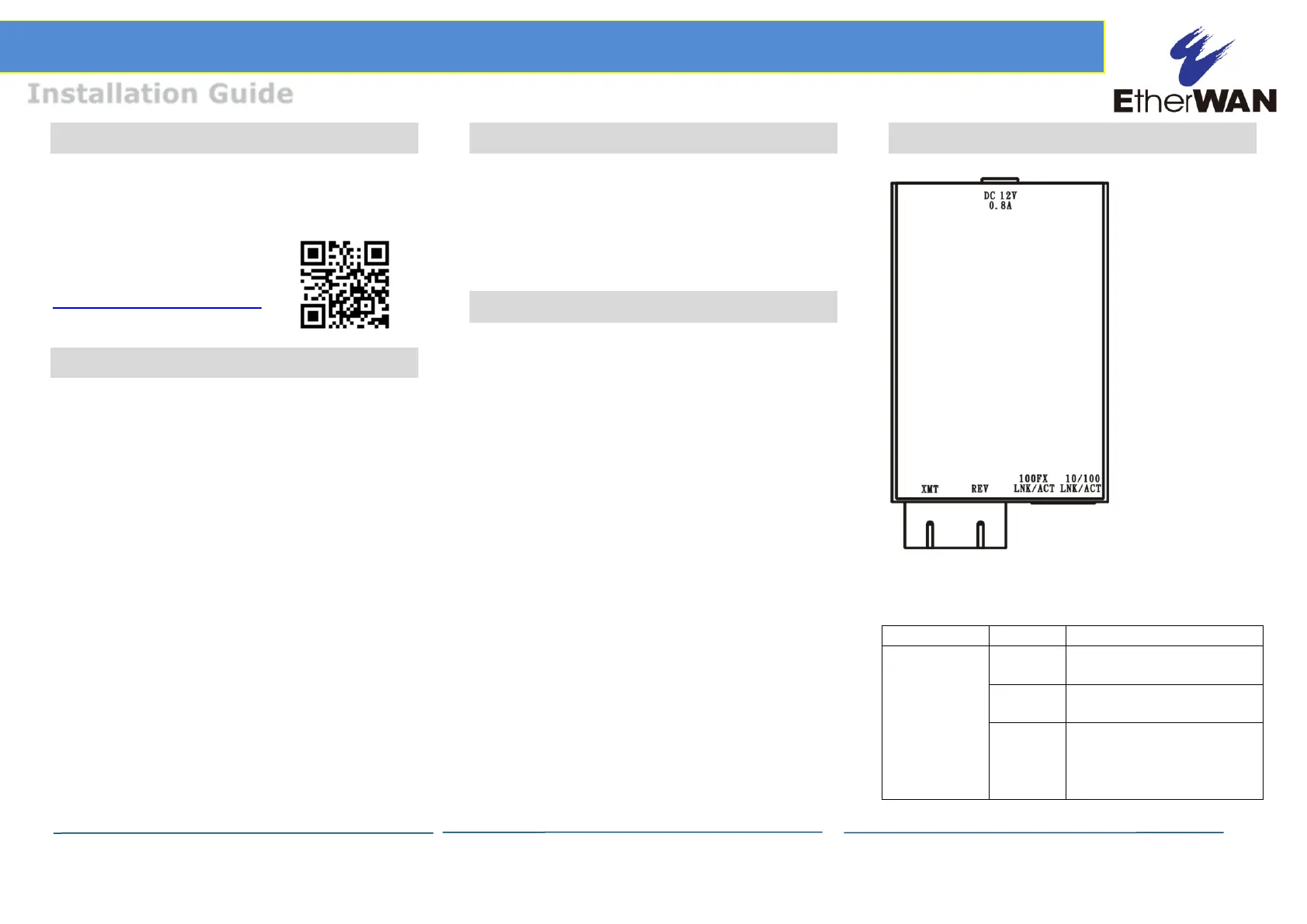

Copyright 2019 EtherWAN Systems, Inc. Page 1

All Rights Reserved

EL50

04/09/2019

W70G-EL50Q1

EL50 Series Media Converter

Installation Guide

1 Unpacking

Open the carton and unpack the items. Your

package should include an EL50 media converter

and this Quick Install Guide. If items are missing

or damaged, notify your EtherWAN

representative.

Download the full manual at:

https://www.etherwan.com

2 Select Installation Location

Place the equipment where it will not be

subjected to extreme temperatures, humidity, or

electromagnetic interference. Specifically, the

site you select should meet the following

requirements:

The ambient temperature should be between

32 and 113 degrees Fahrenheit (0 to 45

degrees Celsius).

The relative humidity should be less than 95

percent, non-condensing.

Surrounding electrical devices should not

exceed the electromagnetic field (RFC)

standards for IEC 801-3, Level 2 (3V/M) field

strength.

Make sure that the equipment receives

adequate ventilation. Do not block the

ventilation holes on each side of the

equipment.

The power outlet should be within 1.8 meters

of the product.

3 Connect Power

This Converter is a plug-and-play device.

Connect the supplied AC to DC power adaptor

to the receptacle on the rear panel of the

converter, and then attach the plug into a

standard AC outlet.

4Ports and Port Settings

The Converter provides one TX port and one FX

port. For the FX port, options of Multi-mode

fiber using SC, ST, VF-45, MT-RJ or LC connector

or Single-mode fiber using SC or ST connector or

WDM fiber using single SC connector are

provided.

The TX port uses RJ-45 connector and auto

detects the speed at 10/100Mbps.

5 LED Indicators

The LED indicators give you instant feedback on

status of the converter:

LED

State

Indication

TX LNK/ACT

FX LNK/ACT

Steady

Valid network

connection established

Flashing

Transmitting or

receiving data

Off

Neither valid network

connection nor

transmitting/ receiving

data
