63℉

10:25 AM10:25AM

NOTESNOTE

• The rechargeable battery in the parent unit is built-in.

• Use only the power adapters supplied with this product.

• Make sure the baby monitor is not connected to a switch-controlled electric outlet.

• Connect the power adapters in a vertical or floor mount position only. The adapters’ prongs are not

designed to hold the weight of baby monitor, so do not connect them to any ceiling, under-the-table,

or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.

• Make sure the parent unit, the baby units and the power adapter cords are out of reach of children.

Specifications are subject to change without notice.

© 2023 VTech Communications, Inc. All rights reserved.

09/23. VM5263 v2-X_QSG_V1.

VM5263

VM5263-2

5” High Definition

Pan & Tilt Video Baby Monitor

Go to www.vtechphones.com

to register your product for

enhanced warranty support and

the latest VTech product news.

1

Connect the baby monitor

What’s in the box

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Quick start guide

Adjust speaker volume

Press -VOL / VOL+ to adjust your parent unit

speaker volume. It determines the volume of

sound transmitted from your baby unit.

Zoom

Press or to zoom in or out.

Talk to your baby unit

1. Press and hold the TALK key.

2. When the TALK LED turns on, speak

to your parent unit. Your voice is

transmitted to the baby unit.

3. When finished talking, release the

TALK key.

Use the menu

Press to enter the menu, choose a menu item,

or save a setting. You can use the parent unit for

advanced settings or operations, such as to play

or stop the baby unit lullaby, or to adjust the baby

unit sound sensitivity.

While in the menu:

• Press or to scroll among the menu options.

• Press to select an item, or to save a setting.

• Press or to scroll among the sub-menus,

or to adjust a setting.

• Press to return to the previous menu options

without changing the current setting.

• Press TALK to return to live video.

• Press to go to Help & Info page.

Basic operation - Parent unit

Turn off the screen

Press LCD ON/OFF to switch off the

screen. You can still hear sound from the

baby unit.

Tip

• Press any keys on the parent unit to turn on

the screen again.

Overview - Baby unit

Overview - Parent unit

Frequency controlCrystal controlled PLL synthesizer

Transmit frequencyBaby unit: 2405 - 2475 MHz

Parent unit: 2405 - 2475 MHz

Channels32

LCD5” Color LCD

(IPS 1280x720 pixels)

Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range

may vary according to environmental conditions at the time of use.

Power requirementsParent unit: 3.7V Lithium-ion Polymer battery

Baby unit power adapter: Output: 5V DC @ 1A

Parent unit power adapter: Output: 5V DC @ 2A

Technical specications

Important safety instructions

6

5

9

3

4

2

1

7

8

10

1Light sensor

2Camera lens

3Microphone

4Night light

5

Night light on/off key

6Speaker

7Power jack

8Temperature sensor

9Slots for wall mounting

10PAIR key

• The parent unit and baby

unit(s) provided are already

paired.

x 2

x 2

1 set for VM5263

2 sets for VM5263-2

Parent unit icons

6

5

9

3

4

2

1

7

8

10

6

5

9

3

4

2

1

7

8

10

The applied nameplate is located at the bottom of the baby unit’s

base.

When using your equipment, basic safety precautions should

always be followed to reduce the risk of fire, electric shock and

injury, including the following:

1. Follow all warnings and instructions marked on the product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above 6.5

feet (2 meters).

4. This product is intended as an aid. It is not a substitute for

responsible and proper adult supervision and should not be

used as such.

5. This product is not intended for use as a medical monitor.

6. Do not use this product near water, for example, near to a

bath, sink, swimming pool or shower.

7. CAUTION: Use only the battery provided (if applicable). There

may be a risk of explosion if a wrong type of battery is used

for the parent unit. The battery cannot be subjected to high or

low extreme temperature and low air pressure at high altitude

during use, storage or transportation. Disposal of battery in

fire or a hot oven, mechanically crushing or cutting the battery

can result in an explosion. Leaving the battery in an extremely

high temperature surrounding environment can result in an

explosion or the leakage of flammable liquid of gas. Battery

subjected to extremely low air pressure may result in an ex-

plosion or the leakage of flammable liquid or gas. Dispose of

used battery according to the information in The RBRC seal.

8. Use only the power adapters included with this product.

Incorrect power adapter polarity or voltage can seriously

damage the product.

Power adapter information:

Parent unit output: 5V DC 2A

VTech Telecommunications Ltd.

Model: VT07EUS05200

Baby unit output: 5V DC 1A.

VTech Telecommunications Ltd.

Model: VT05EUS05100

Rechargeable battery information:

3.7V 5000mAh, 18.5Wh Lithium-ion battery

Zhuhai Great Power Energy Co., Ltd.

Model: GSP806090-5Ah-3.7V-1S1P

9. The power adapter is intended to be correctly oriented in a

vertical or floor mount position. The prongs are not designed

to hold the plug in place if it is plugged into a ceiling, un-

der-the-table or cabinet outlet.

10. For pluggable equipment, the socket-outlet (power adapter)

should be installed near the equipment and should be easily

accessible.

11. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

12. Do not modify the power adapters or replace with other

adapters, as this causes a hazardous situation.

13. Do not allow anything to rest on the power cords. Do not

install this product where the cords may be walked on or

crimped.

14. This product should be operated only from the type of

power source indicated on the marking label. If you are not

sure of the type of power supply in your home, consult your

dealer or electricity supply provider.

15. Do not overload wall outlets or use an extension cord.

16. Do not place this product on an unstable table, shelf, stand or

other unstable surfaces.

17. This product should not be placed in any area where proper

ventilation is not provided. Slots and openings in the back

or bottom of this product are provided for ventilation. To

protect them from overheating, these openings must not be

blocked by placing the product on a soft surface such as a

bed, sofa or rug. This product should never be placed near

or over a radiator or heat source.

18. Never push objects of any kind into this product through the

slots because they may touch dangerous voltage points or cre-

ate a short circuit. Never spill liquid of any kind on the product.

19. To reduce the risk of electric shock, do not disassemble this

product, but take it to an authorized service facility. Disas-

sembling or removing parts of the product other than via the

battery door (if applicable) may expose you to dangerous

voltages or other risks. Incorrect reassembling can cause

electric shock when the product is subsequently used.

20. You should test the sound reception every time you turn on

the units or move one of the components.

21. Periodically examine all components for damage.

22. There is a very low risk of privacy loss when using certain

electronic devices, such as baby monitors, cordless tele-

phones, etc. To protect your privacy, make sure the product

has never been used before purchase, reset the baby

monitor periodically by powering off and then powering

on the units, and power off the baby monitor if you are not

intending to use it for some time.

23. Children should be supervised to ensure that they do not

play with the product.

24. The small parts of this monitor can be swallowed by babies or

small children. Keep these parts out of reach of children.

25. The product is not intended for use by persons (including

children) with reduced physical, sensory or mental capabili-

ties, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

SAVE THESE INSTRUCTIONS

Cautions

• Use and store the product at a temperature between 32

o

F

(0

o

C) and 104

o

F (40

o

C).

• Mishandling batteries can cause burn, fire or explosion

hazards.

• Batteries should not be exposed to excessive heat such as

bright sunshine or fire.

• Do not expose the product to extreme cold, heat or direct

sunlight. Do not put the product close to a heating source.

• Warning—Strangulation Hazard—Chil-

dren have STRANGLED in cords. Keep this

cord out of the reach of children (more than

3 ft (0.9m) away). Do not remove warning

label on the adapter cord.

• Never place the camera unit(s) inside the baby’s crib or

playpen. Never cover the camera unit(s) or parent unit with

anything such as a towel or a blanket.

• Other electronic products may cause interference with your

camera unit. Try installing your camera unit as far away from

these electronic devices as possible: wireless routers, radios,

cellular telephones, intercoms, room monitors, televisions,

personal computers, kitchen appliances and cordless tele-

phones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and implanted

cardiac pacemakers. Supported by the U.S. Food and Drug

Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the

pacemaker, such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic elds (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and according

to the instructions in this user’s manual, the product is safe to be

used based on scientific evidence available today.

VM5263

VM5263-2

For more support information:

S

m

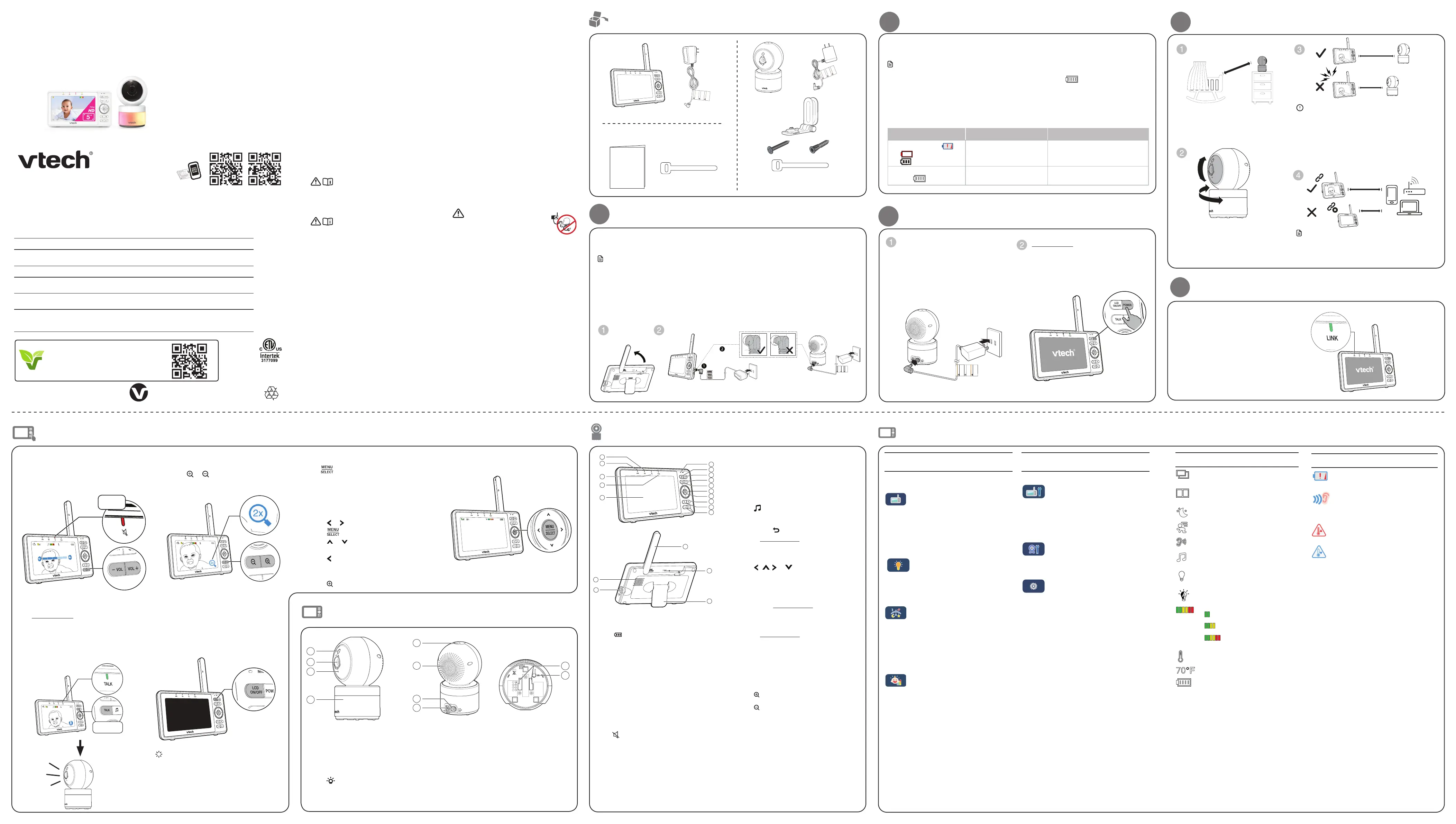

Quick start guide

UL STD.

62368-1

CERTIFIED TO

CSA STD.

C22.2 NO.62368-1

CONFORMS TO

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least

three feet

away from the child at all t

imes. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon

doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’u

tilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento

. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

2

Power on or off the baby monitor

Connect the power adapter to the

baby unit and a power supply to

power on the unit.

Disconnect the baby unit from the

power supply to power off.

Press and hold POWER to power on or

off your parent unit.

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away f

rom the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

4

Status check

Once you power on both your

baby unit and parent unit, your

parent unit displays image from

the baby unit, and the LINK LED

light turns on.

3

Positioning the baby monitor

Caution

• The default volume of your parent unit is level

3, and the maximum volume is level 5. If you

experience feedback noise from your baby

monitor while positioning:

-Make sure your baby unit and parent unit are

more than 3 feet (1 meter) apart, OR

-Lower the volume of your parent unit.

NOTESNOTE

Note

• To avoid interference from other electronic devices,

place your baby monitor at least 3 feet (1 meter) away

from devices such as wireless routers, microwaves,

mobile phones and computers.

>

3ft (1m)

<

3ft (1m)

> 3ft (1m)

≥

<

3ft (1m)

3ft (1m)

63ē

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏

﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

Muted

63℉

10:25 AM

10:25 AM

63ē

10:25 AM

10:25 AM

Press and hold

63ē

10:25 AM

10:25 AM

77

77

20

11

12

13

14

15

10

8

9

17

16

7

6

2

3

4

5

1

19

18

1

LED light

• On when the parent unit is linked to the

baby unit.

• Flashes when the link to the baby unit is

lost.

2LINK LED light

• On when the parent unit is connected to

AC power, or the battery is charging.

• Flashes when the parent unit battery is

low and needs charging.

• Off when the parent unit is disconnected

from AC power.

3

LED light

• On when the parent unit speaker volume

is set to off.

• On when the parent unit is talking to the

baby unit.

4TALK LED light

• On when the parent unit is talking to the

baby unit.

5LCD display

6Microphone

7LCD ON/OFF

8POWER

9

Lullaby

• Press to enter the lullaby menu.

10

TALK /

• Press and hold to talk to the baby unit.

• While in a submenu, press to exit.

11Arrow keys

, ,

or

• Press to move the selection box

leftward, upward, rightward or

downward.

• While viewing image from the baby

unit, press and hold to pan the baby

unit leftward, upward, rightward or

downward.

• While viewing zoomed image,

press and hold to move the zoomed

image leftward, upward, rightward or

downward.

12MENU/SELECT

• Press to enter the menu.

• While in a menu, press to choose an

item, or save a setting.

13

Zoom in

14

Zoom out

15- VOL/ VOL +

16Antenna

17RESET

• Force reboot the parent unit.

18Speaker

19Power Jack

20Stand

The parent unit turns on automatically after connecting the power adapter to the power

socket and the battery LED light illuminates.

Main

Menu

Options

Monitoring mode (* For VM5263-2

only)

• View baby unit 1 or 2 in Single

mode.

• View both baby units in Patrol

mode.

• View both baby units in Split

screen.

Night light

• Turn on or turn off night light.

• Select a night light color.

• Adjust night light brightness.

• Set a night light timer.

Melodies and soothing sounds

• Select to play all melodies, or play

one of the five melodies and four

soothing sounds.

• You can also set the timer to stop

playing after 15, 30 or 60 minutes,

or playing non-stop.

Alerts - Sound, motion and tem-

perature

• Select the sound and motion

sensitivity level.

• Turn on/off sound and motion

detection alerts.

• Select maximum and minimum

temperature for alert range.

• Turn on/off temperature alert.

• Set the temperature format.

Main

Menu

Options

Parent unit settings

• Adjust parent unit screen

brightness.

• Turn on/off Low Battery Alert Tone.

• Turn on/off No Link Alert Tone.

• Turn on/off dim mode.

Baby unit settings

• Adjust baby unit’s speaker volume.

General settings

• Reset Settings.

Status icons

Baby unit 1 and 2 are being viewed in

Patrol mode (*For VM5263-2 only).

Baby unit 1 and 2 are being viewed in

Split mode (*For VM5263-2 only).

Night vision is turned on.

Motion alert is turned on.

Sound detection alert is turned on.

Melodies and soothing sounds are turned

on.

Night light is turned on.

Auto night light brightness is activated.

6-level sound indicator

•

indicates low sound level detected

by the baby unit.

• indicates moderate sound level

detected by the baby unit.

• indicates high sound level

detected by the baby unit.

Temperature alert is turned on.

Temperature

Battery level indicator

Alert icons

• Displays when parent unit’s

battery is low and needs

charging.

• Displays when sound is

detected at a baby unit

when in Split view.

(*For VM5263-2 only)

• Baby unit detects

temperature reaches or

exceeds the set maximum.

• Baby unit detects

temperature is at or is lower

than the set minimum.

Charge the parent unit battery

When you have connected and turned the parent unit on, the battery charges automatically.

NOTESNOTE

Notes

• Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the

parent unit battery is fully charged, the battery icon segments are solid .

• It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn

the parent unit off while charging.

• The standby time varies depending on the sensitivity level you set, your actual use and the age of the

battery.

The battery icon indicates the battery status (see the following table).

Battery indicatorsBattery statusAction

The screen displays

and .

The LED light flashes.

The battery has very little

power and can only be used

for a short time.

Charge

without interruption

(about

30 minutes).

The battery icon segments

are solid .

The battery is fully charged.To keep the battery charged, connect

the unit to AC power when in use.

1

Connect the baby monitor (cont’d)

Product Recycling

Recycle this product when you are done with it.

For more information, scan the QR code

or visit vtechphones.com/recycle.

Product specificaties
