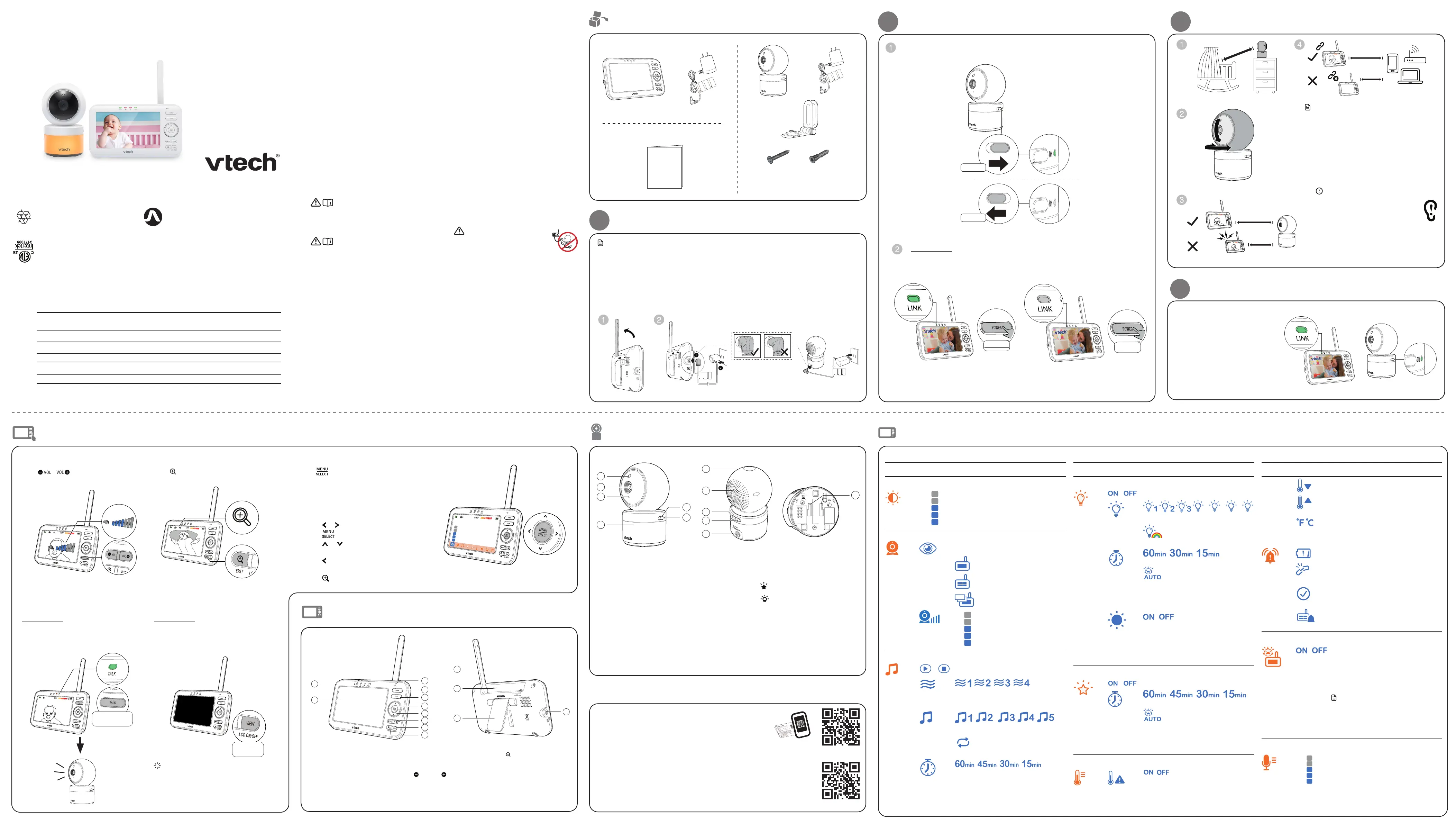

Quick start guide

VM5463

VM5463-2

Full Color Pan and Tilt

Video Monitor

Go to www.vtechphones.com

to register your product for

enhanced warranty support and

the latest VTech product news.

1

Connect the baby monitor

2

Power on or off the baby monitor

Slide the switch to power on or off your baby unit.

Press and hold POWER to power on or off your parent unit.

What’s in the box

4

Status check

Once you power on both your

baby unit and parent unit, your

parent unit displays image from

the baby unit, and the LINK LED

light turns on.

The ON LED light of baby unit

turns on.

3

Positioning the baby monitor

Caution

• The default volume of your parent unit

is level 4, and the maximum volume is

level 7. If you experience high-pitched

screeching noise from your baby

monitor while positioning:

-Make sure your baby unit and parent

unit are more than 3 feet (1 meter)

apart, OR

-Lower the volume of your parent unit.

NOTESNOTE

Note

• To avoid interference from other electronic

devices, place your baby monitor at least 3 feet

(1 meter) away from devices such as wireless

routers, microwaves, cell phones and computers.

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Quick start guide

Adjust speaker volume

Press / to adjust your parent

unit speaker volume.

Zoom

Press to zoom in or out.

Talk to your baby unit

Press and hold TALK and speak to your

parent unit. Your voice is transmitted to

the baby unit. Release TALK when finish

talking and hear your baby again.

Use the menu

Press to enter the menu, choose a menu item,

or save a setting. You can use the parent unit for

advanced settings or operations, such as to play

or stop the baby unit lullaby, or to adjust the baby

unit sound sensitivity.

While in the menu:

• Press or to scroll among the menu options.

• Press to select an item, or to save a setting.

• Press or to scroll among the sub-menus,

or to adjust a setting.

• Press to return to the previous menu options

without changing the current setting.

• Press /EXIT to return to live video.

Basic operation - Parent unit

Turn off the screen

Press and hold LCD ON/OFF to switch off

the screen. You can still hear sound from

the baby unit.

Tip

• Press any key on the parent unit to turn on

the screen again.

Overview - Parent unit

Overview - Baby unit

Technical specifications

The applied nameplate is located at the bottom of the baby

unit’s base.

When using your equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric

shock and injury, including the following:

1. Follow all warnings and instructions marked on the

product.

2. Adult setup is required.

3. CAUTION: Do not install the baby unit at a height above

2 meters.

4. This product is not a substitute for adult supervision of the

infant. Supervising the infant is the parent’s or caregiver’s

responsibility. This product could cease operating, and

therefore you should not assume it will continue working

properly for any given period of time. Further, this is not a

medical device and should not be used as such. This product

is intended to assist you in supervising your baby.

5. Do not use this product near water. For example, do not

use it next to a bath tub, wash bowl, kitchen sink, laundry

tub or swimming pool, or in a wet basement or shower.

6. CAUTION: Use only the battery provided. There may be a risk

of explosion if a wrong type of battery is used for the parent

unit. The battery cannot be subjected to high or low extreme

temperature and low air pressure at high altitude during use,

storage or transportation. Disposal of battery into fire or a hot

oven, or mechanically crushing or cutting or the battery can

result in an explosion. Leaving the battery in an extremely

high temperature surrounding environment can result in an

explosion or the leakage of flammable liquid of gas. Battery

subjected to extremely low air pressure may result in an

explosion or the leakage of flammable liquid or gas. Dispose of

used battery according to the information in The RBRC seal.

7. Use only the adapters included with this product.

Incorrect adapter polarity or voltage can seriously

damage the product.

Power adapter information:

Parent unit output: 5V DC 1A

VTech Telecommunications Ltd.

Model: VT05EUS05100

Baby unit output: 5V DC 1A.

VTech Telecommunications Ltd.

Model: VT05EUS05100

Rechargeable battery information:

Li-ion battery, 3.8V 2100mAh

Zhongshan Tianmao Battery Co., Ltd.

Model Number: BP1763

8. The power adapters are intended to be correctly oriented

in a vertical or floor mount position. The prongs are not

designed to hold the plug in place if it is plugged into a

ceiling, under-the-table or cabinet outlet.

9. For pluggable equipment, the socket-outlet shall

be installed near the equipment and shall be easily

accessible.

10. Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a damp cloth for

cleaning.

11. Do not cut off the power adapters to replace them with

other plugs, as this causes a hazardous situation.

12. Do not allow anything to rest on the power cords. Do not

install this product where the cords may be walked on or

crimped.

13. This product should be operated only from the type

of power source indicated on the marking label. If you

are not sure of the type of power supply in your home,

consult your dealer or local power company.

14. Do not overload wall outlets or use an extension cord.

15. Do not place this product on an unstable table, shelf, stand

or other unstable surfaces.

16. This product should not be placed in any area where

proper ventilation is not provided. Slots and openings

in the back or bottom of this product are provided for

ventilation. To protect them from overheating, these

openings must not be blocked by placing the product

on a soft surface such as a bed, sofa or rug. This product

should never be placed near or over a radiator or heat

register.

17. Never push objects of any kind into this product through

the slots because they may touch dangerous voltage

points or create a short circuit. Never spill liquid of any

kind on the product.

18. To reduce the risk of electric shock, do not disassemble

this product, but take it to an authorized service facility.

Opening or removing parts of the product other than

specified access doors may expose you to dangerous

voltages or other risks. Incorrect reassembling can

cause electric shock when the product is subsequently

used.

19. You should test the sound reception every time you turn

on the units or move one of the components.

20. Periodically examine all components for damage.

21. There is a very low risk of privacy loss when using certain

electronic devices, such as baby monitors, cordless

telephones, etc. To protect your privacy, make sure the

product has never been used before purchase, reset

the baby monitor periodically by powering off and then

powering on the units, and power off the baby monitor

if you will not use it for some time.

22. Children should be supervised to ensure that they do not

play with the product.

23. The product is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

SAVE THESE INSTRUCTIONS

Cautions

1. Use and store the product at a temperature between 32

o

F

and 104

o

F.

2. Do not expose the product to extreme cold, heat or

direct sunlight. Do not put the product close to a heating

source.

3. Batteries should not be exposed to excessive heat such as

bright sunshine or fire.

4. Warning—Strangulation Hazard—

Children have STRANGLED in cords. Keep

this cord out of the reach of children (more

than 3 ft (0.9m) away). Do not remove this

tag.

5. Never place the baby unit(s) inside the baby’s crib or

playpen. Never cover the baby unit(s) or parent unit with

anything such as a towel or a blanket.

6. Other electronic products may cause interference

with your baby monitor. Try installing your baby

monitor as far away from these electronic devices

as possible: wireless routers, radios, cellular

telephones, intercoms, room monitors, televisions,

personal computers, kitchen appliances and cordless

telephones.

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless devices):

Wireless Technology Research, LLC (WTR), an independent

research entity, led a multidisciplinary evaluation of the

interference between portable wireless devices and

implanted cardiac pacemakers. Supported by the U.S. Food

and Drug Administration, WTR recommends to physicians that:

Pacemaker patients

• Should keep wireless devices at least six inches from the

pacemaker.

• Should NOT place wireless devices directly over the

pacemaker, such as in a breast pocket, when it is turned ON.

WTR’s evaluation did not identify any risk to bystanders with

pacemakers from other persons using wireless devices.

Electromagnetic fields (EMF)

This VTech product complies with all standards regarding

electromagnetic fields (EMF). If handled properly and

according to the instructions in this user’s manual, the product

is safe to be used based on scientific evidence available today.

Important safety instructions

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe esta

r por

lo menos tr

es pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Strangulation

Hazard

Keep this cord out of reach of children.

The cord needs to be at least three feet

away from the child at all times. Do not

use with an extension cord. Do not

remove this tag.

Éloignez ce cordon des enfants. Le

cordon doit se trouver à au moins trois

pieds d’un enfant et ce, en tout temps.

N’utilisez pas de rallonge. Ne retirez pas

cette étiquette.

Mantenga este cable fuera de la alcance

de los niños. Este cable debe estar por

lo menos tres pies fuera de la alcance

del niño en todo momento. No lo use

con una extensión inalámbrica. No quite

esta etiqueta.

Risque

d’étranglement

Riesgo de

estrangulación

Power on

Power off

>

<

3ft (1m)

3ft (1m)

> 3ft (1m)

ē

Press and hold

Long press

5

7

8

9

10

11

12

3

4

2

1

6

5

7

8

9

10

11

12

3

4

2

1

6

5

7

8

9

10

11

12

3

4

2

1

6

1LED lights

2LCD display

3Microphone

4POWER

5TALK

6MENU/SELECT

7Arrow keys

8

Volume

9VIEW /LCD ON/OFF

10

/EXIT

11Antenna

12RESET

13Stand

14Power jack

1Light sensor

2Camera lens

3Microphone

4Night light

5On/Off switch

6On/Off LED light

• On when the baby unit is

turned on and is paired to the

parent unit.

• Flashes when the baby unit is

not being viewed;

or when the link to the parent

unit is lost.

7Light projector

8Speaker

9

Projection light on/off key

10

Night light on/off key

11Power jack

12Slots for wall mounting

x 2

x 2

1 set for VM5463

2 sets for VM5463-2

Need help?

S

m

≥

<

3ft (1m)

3ft (1m)

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

﹏﹏﹏

﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

﹏﹏﹏﹏﹏

Press and hold

Parent unit icons

Main

menu

Sub-menu

Brightness

• Adjust the parent unit’s LCD

brightness.

Camera

Monitoring mode (For VM5463-2 only)

• Single mode

• Split mode

• Patrol mode

Baby unit speaker volume

• Adjust the baby unit’s

speaker volume.

Lullaby

/

Play/Stop lullaby

• Select one of the soothing sounds, or

white noise.

• Select one of the five melodies.

• Play all melodies.

• Set timer to stop playing the selected

melody or soothing sound.

Main

menu

Sub-menu

Night light

/

Turn on/off night light

4

5

6

• Select one of the night light colors.

• Change to all seven colors in cycles.

• Set timer to turn the night light off.

• Auto turn on the night light when baby

unit detects sound. It will turn off after

15 minutes of no sound detection.

See Sound sensitivity and sound

activation section to learn more.

A

/

• Turn on/off the adaptive night light

feature. When this feature is on, the

baby unit detects the ambient light.

If the room is bright, the night light

adjusts itself to be brighter; if the

room is dim, the night light adjusts

itself to be less bright.

Projection

/

Turn on/off projection light

• Set timer to turn the projection light off.

• Auto turn on the projection light when

baby unit detects sound. It will turn off

after 15 minutes of no sound detection.

See Sound sensitivity and sound

activation section to learn more.

Temperature

/

Turn on/off temperature alert tone.

• Set the parent unit to beeps

whenever the room temperature

detected by the baby unit falls outside

of the set temperature range.

Main

menu

Sub-menu

• Set the minimum temperature.

• Set the maximum temperature.

• Set temperature display in Fahrenheit

(

o

F) or Celsius (

o

C)

Alert tone settings

• Set the parent unit to beep when the

battery is low.

• Set the parent unit to beep when the

link between the parent unit and the

baby unit is lost.

• Set the confirmation tone on or off

when selecting an option in the

menus.

• Set the parent unit to beep when the

baby unit detects sounds while in

Split mode (For VM5463-2 only).

Sound activation - screen and audio

/

Turn on/off sound activation

• When on, once a sound is detected,

the parent unit screen and speaker

will automatically turn on.

See Sound sensitivity and sound

activation section to learn more.

NOTESNOTE

Note

• When the parent unit screen is off

and it receives alerts, for example,

link lost between parent unit and

baby unit, the parent unit screen and

speaker will turn on for 10 seconds.

VOX (Voice Activated Alert) Sensitivity

• You can set VOX sensitivity level to

activate parent unit screen and sound

when baby unit detects sounds that

exceed certain levels. See Sound

sensitivity and sound activation

section to learn more.

Main menu icons

VM5463

VM5463-2

7

Long press

Power on

Long press

Power off

Disclaimer and Limitation of Liability

VTech Communications, Inc. and its suppliers assume no responsibility for any damage or loss

resulting from the use of this user’s manual. VTech Communications, Inc. and its suppliers assume no

responsibility for any loss or claims by third parties that may arise through the use of this product.

Company: VTech Communications, Inc.

Address: 9020 SW Washington Square Road - Ste 555 Tigard, OR 97223, United States

Phone: 1 (800) 595-9511 in the U.S. or 1 (800) 267-7377 in Canada

Credits:

The Background Noise sound file was created by Caroline Ford,

and is used under the Creative Commons license.

The Stream Noise sound file was created by Caroline Ford, and is

used under the Creative Commons license.

The Crickets At Night sound file was created by Mike Koenig, and

is used under the Creative Commons license.

The Heart Beat sound file was created by Zarabadeu, and is used

under the Creative Commons license.

Frequency controlCrystal controlled PLL synthesizer

Transmit frequencyBaby unit: 2405 - 2475 MHz

Parent unit: 2405 - 2475 MHz

Channels32

LCD5” Color LCD

(WQVGA 480x272 pixel)

Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range may

vary according to environmental conditions at the time of use.

Power requirements

Parent unit: 3.8V 2100mAh Li-ion battery

Baby unit power adapter: Output: 5V DC @ 1A

Parent unit power adapter: Output: 5V DC @ 1A

UL STD.

62368-1

CERTIFIED TO

CSA STD.

C22.2 NO.62368-1

CONFORMS TO

For operations and guides to help you operate your video

monitor, and for the latest information and support, check out our

online help topics and FAQs.

Use your smartphone or mobile device to access our online help.

• Go to https://help.vtechphones.com/vm5463 or

https://help.vtechphones.com/vm5463-2; OR

• Scan the QR code on the right. Launch the camera app or QR code scanner app

on your smartphone or tablet. Hold the device’s camera up to the QR code and

frame it. Tap the pop-up notification to be redirected to the online help page.

-If the QR code is not clearly displayed, adjust your camera’s focus by moving

your device closer or further away until the image is clear.

You can also call our Customer Support at 1 (800) 595-9511 [in US] or

1 (800) 267-7377 [in Canada] for help.

Product specificaties
