1. Attach the mounting strap to the outlet box by using two mounting screws.

2. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections

using the wire nuts:

---Connect the black wire from the fixture to the black wire from the power source.

---Connect the white wire from the fixture to the white wire from the power source.

---Attach the fixture grounding wire to the mounting plate with the green grounding screw.

Then connect it to the house grounding wire with a wire nut.

Carefully put the wires back into the outlet box.

3. Attach the back plate to the mounting strap by aligning holes, secure the fixture mounting screw

from the one hole of the back plate into the hole in the one side of the mounting strap. Then secure

the fixture mounting screw from the another hole of the back plate to the another side of the

mounting strap.

4. Attach the glass shade onto the glass holder, secure it with the spacer and socket ring. using

supplied socket fixter.

5. Install a bulb (not included). See relamping label at socket area or packaging for maximum

allowed wattage.

6. Turn on the power at the main fuse or circuit breaker box.

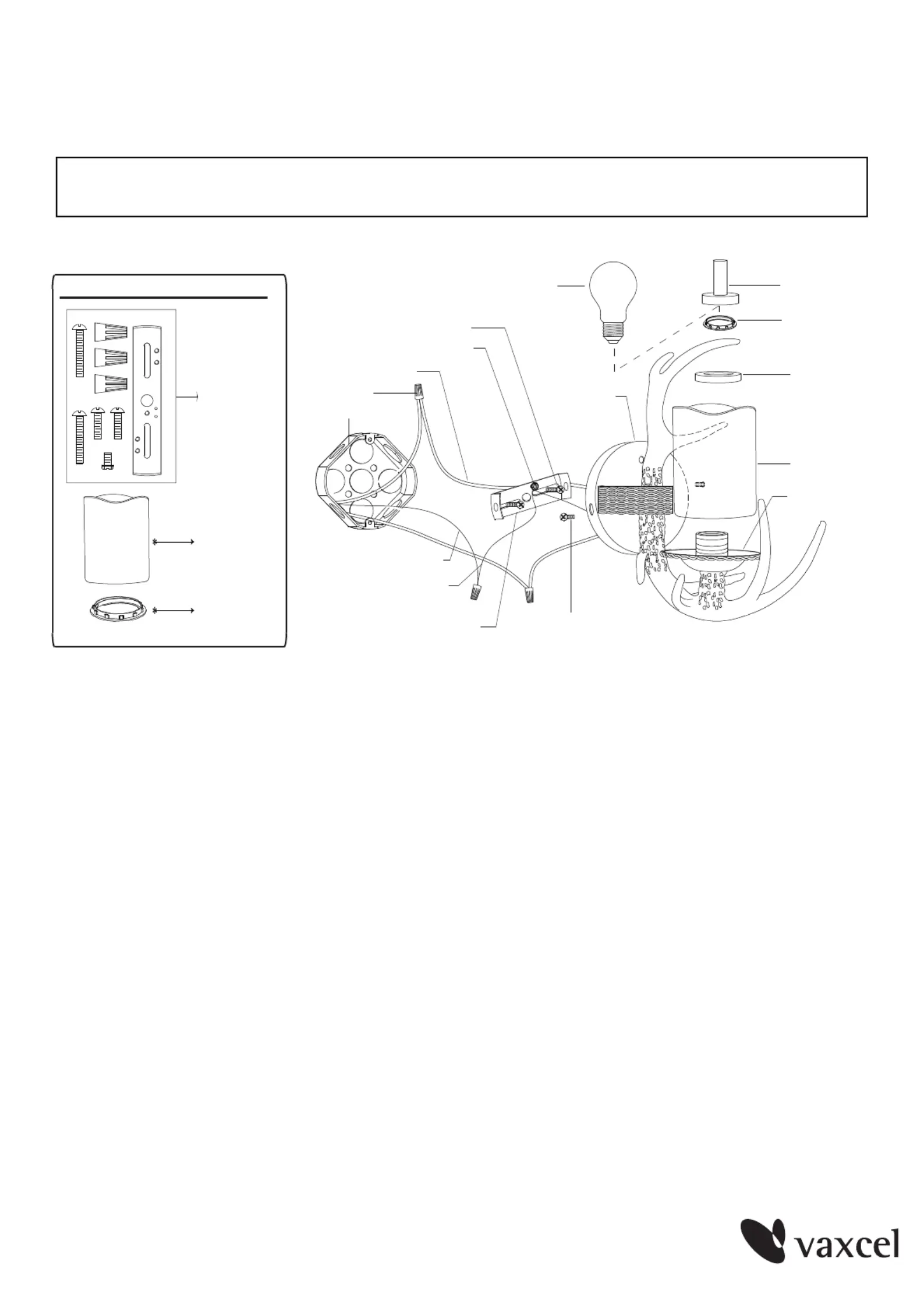

Back Plate

Glass Shade

Glass Holder

Socket Ring

House Grounding Wire

Green Grounding Screw

Fixture Grounding Wire

Wire Nut

Mounting Screw

Mounting Strap

Outlet Box

Fixture Wire

Fixture Mounting Screw

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0032

120310

Bulb Type A Max.100 W

(Not included)

Contents of Spare Parts:

Assembly Kit

(1 SET)

(4466MM)

Glass Shade

(1 PC)

(9316CR)

Socket Ring

(1 PC)

(4465KK)

Socket Fixer

Spacer
