ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

W0224

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

230511

Page 1 / 2

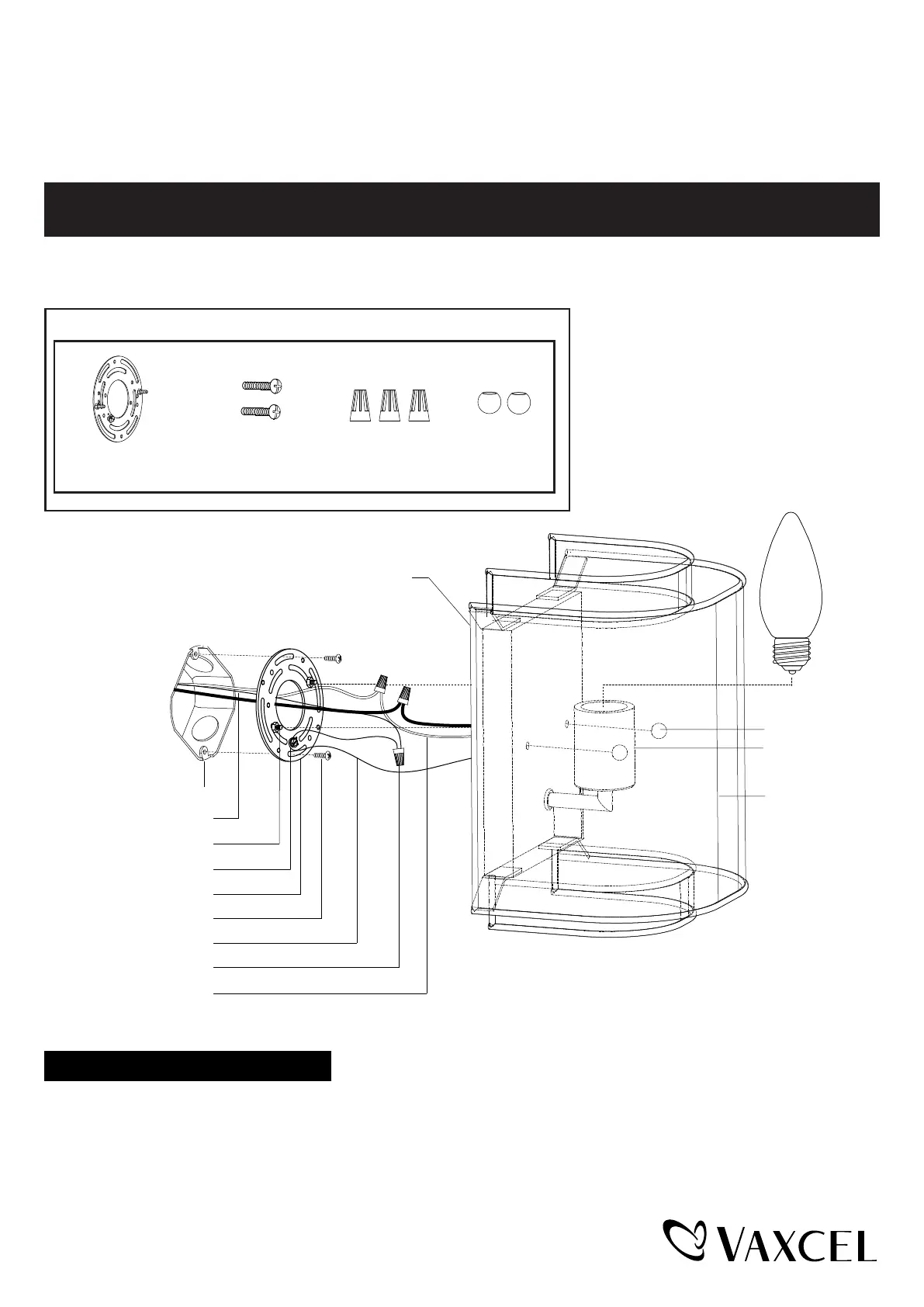

Backplate

Bolt Nut (D)

Socket

Fabric Shade

Max. 60W Medium Base Bulb

(not included)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Mounting Plate Unit (A)

Fixture Wire

Fixture Ground Wire

Fixture Mounting Screw

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Mounting Plate Unit (A)

1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled fixture mounting screws if necessary.

Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.

Turn off the power at fuse or circuit box.

Installation Steps
