ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WL33042NS
T
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of
the preinstalled fixture mounting screws if necessary.
Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.
Turn off the power at fuse or circuit box.
Installation Steps
Page 1 / 2

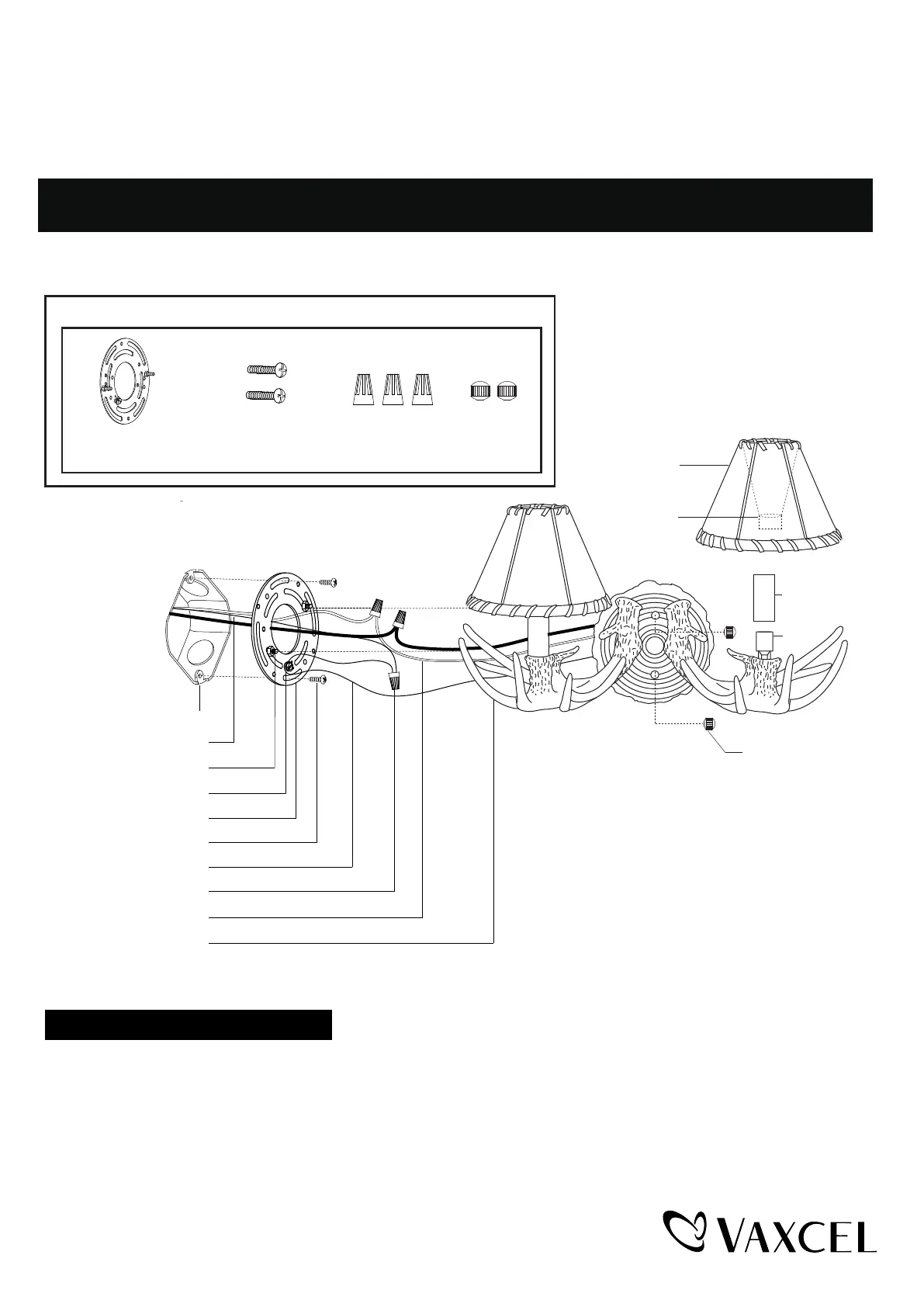

Fixture Wire
Backplate
Harp
Shade
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Green Ground Screw
Mounting Plate Unit (A)
Bolt Nut (D)
Socket
Candle Tube
Fixture Ground Wire
Fixture Mounting Screw
230907
