ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0348 / T0492
W
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
Turn on the power at fuse or circuit box
Turn off the power at fuse or circuit box
Wire Connector (B)
Fitter Screw (A)
Hardware Package (included):
4. Pull out the source wires from the post.
Make wire connections using wire connectors (B)
as follows:
• Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
• Connect the ground wire (bare wire) from the
fixture to the ground wire from the post.
Carefully put all of the wires back into the post.
2. Place the fitter on the top of the post, and then
secure it with the fitter screws (A).
NOTE: With silicone caulk compound,
caulk completely around where the fitter
meets with the post surface to prevent water
from seeping into the post.
3. Attach the shade to socket, then secure it with socket ring.
4. Install a bulb ( not included). See relamping label at socket
area or packaging for maximum allowed wattage.

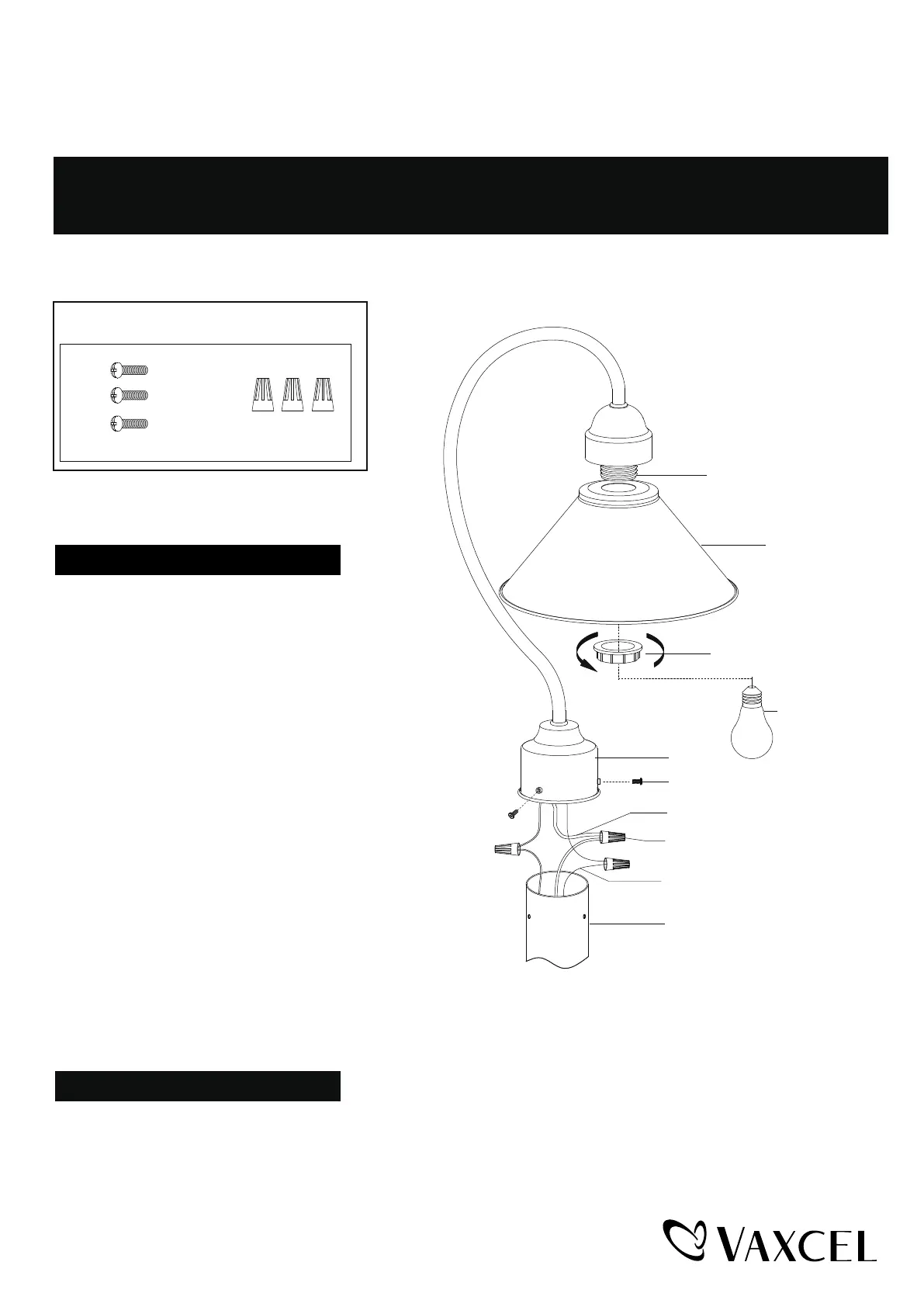

Installation Steps
Ground Wire
Fixture Wire
Wire Connector (B)
Post
Shade
Socket
Socket Ring
Max. 60W Type A Bulb
(not included)
Fitter Screw(A)
Fitter
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
230504
Page 1 / 2
