1. Rod Connections:

a. Thread the fixture wire through the lower rod, then secure the lower rod

onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod and then secure the middle

rod onto the lower rod using the threaded pipe.

c. Thread the fixture wire through the upper rod, then secure the upper rod onto

the middle rod using the threaded pipe.

Note: Length adjustable from 9-3/4" to 54-1/2". Use fewer rods if shorter length

is desired.

2.

Thread the fixture wire through the canopy kit, then secure the rod

assembly to the set threaded pipe of the canopy kit.

3.

Attach the

mounting strap unit (A)

to outlet box by using two mounting

screws

(B)

.

4. Pull out the source wires from the outlet box. Make wire connections

using wire connectors (C) as follows:

---Connect the smooth-coated wire (marked) from the fixture to the

black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the

white wire from the power source.

---Attach the fixture ground wire to the mounting strap unit (A) with

the green ground screw, then connect it to the house ground

wire with a wire connector (C).

Carefully put the wires back into the outlet box.

5. Attach the canopy kit to the mounting strap unit (A) by inserting the

fixture mounting screws, then secure it with two bolt nuts (D).

6. Attach the shade to socket, then secure it with the socket ring.

7. Install 1 X 60W Max. medium base bulb (not included).

See relamping label at socket area or packaging for maximum

wattage allowed.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.Read and save this instruction.

P0398 / P0399

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

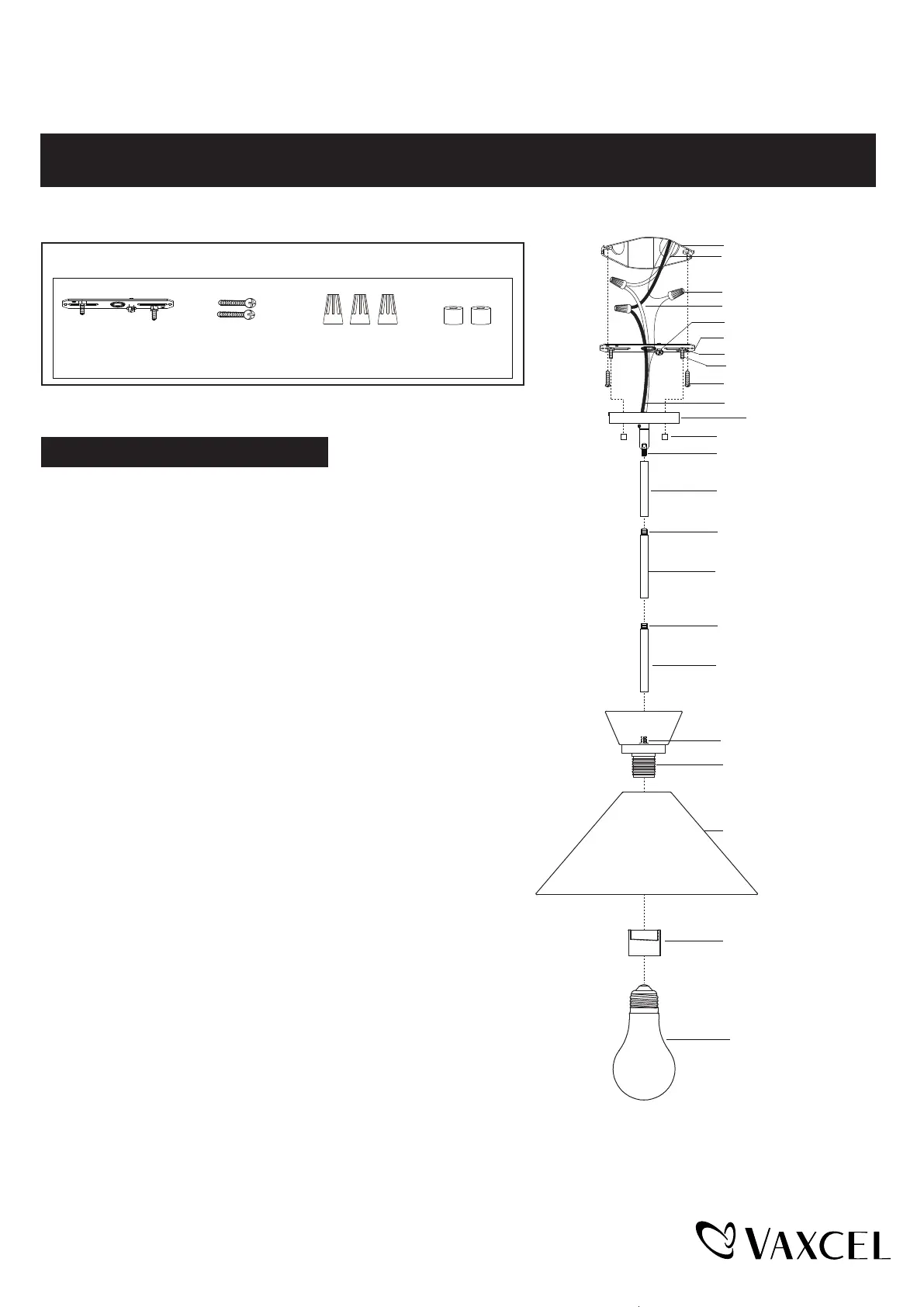

Hardware Package (included):

Turn off the power at fuse or circuit box.

Installation Steps

Canopy Kit

Outlet Box

House Ground Wire

Wire Connector (C)

Lock Nut

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Fixture Wire

Fixture Mounting Screw

Fixture Ground Wire

Threaded Pipe

Set Threaded Pipe

Bolt Nut (D)

Socket

Shade

Socket Ring

Max. 60W Medium Base Bulb

(not Included)

Threaded Pipe

Bolt Nut (D)

Mounting Screw (B)

Mounting Strap Unit (A)

Wire Connector (C)

Page 1 / 2
