ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save this instructions.

C0290 / C0291 / C0292 / C0293

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

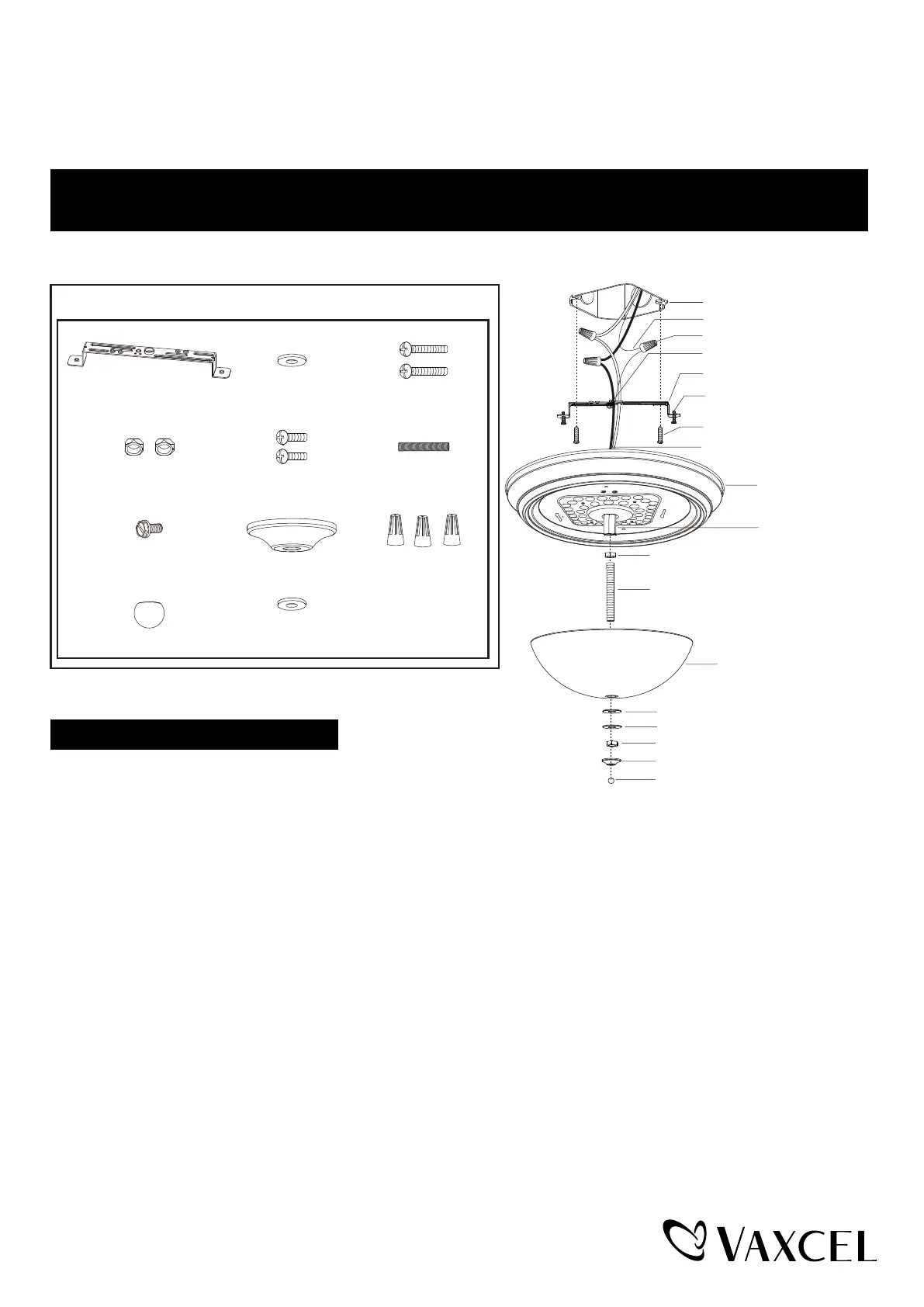

Hardware Package (included):

Turn off the power at fuse or circuit box

Installation Steps

1. Attach mounting bracket (A) to the outlet box using two mounting

screws (C).

2. Pull out the source wires from the outlet box. Make wire connections using wire connector (I) as follows:

• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting bracket (A) with the green ground screw (G),

then connect it to the house ground wire with the wire connector (I).

Carefully put all of the wires back into the outlet box.

3. Attach the ceiling pan to the mounting bracket (A) by inserting two short screw (E) heads into the keyholes.

Rotate the ceiling pan until it is locked into place, then tighten the short screws (E) to secure it.

4. Screw the threaded pipe (F) into the coupling, then secure it with a hex nut (D).

Note: Depth of threaded pipe may need to be adjusted to properly fit glass shade, decorative cap and finial.

5. Attach the glass shade to the ceiling pan by inserting the threaded pipe (F) through the glass shade, then secure it

with a rubber pad (K), metal pad (B) and a hex nut (D).

6. Attach the decorative cap (H) end of threaded pipe, then secure it with the finial (J).

230612

Page 1 / 2

Hex Nut (D)

Decorative Cap (H)

Finial (J)

Threaded Pipe (F)

Mounting Bracket (A)

Mounting Screw (C)

Short Screw (E)

Green Ground Screw (G)Wire Connector (I)

Rubber Pad (K)

Metal Pad (B)

Outlet Box

House Ground Wire

Wire Connector (I)

Mounting Bracket (A)

Short Screw (E)

Fixture Ground Wire

Mounting Screw (C)

Green Ground Screw (G)

Ceiling Pan

Glass Shade

Rubber Pad (K)

Metal Pad (B)

Hex Nut (D)

Coupling

Hex Nut (D)

Decorative Cap (H)

Finial (J)

Threaded Pipe (F)
