ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

W0479

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Page 1 / 2

2. Read and save these instructions.

Hardware Package(included):

Turn off the power at fuse or circuit box.

Installation Steps

1. Unscrew the end cap (D) from mounting strap unit (A).

2. Attach the mounting strap unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled threaded pipe if necessary.

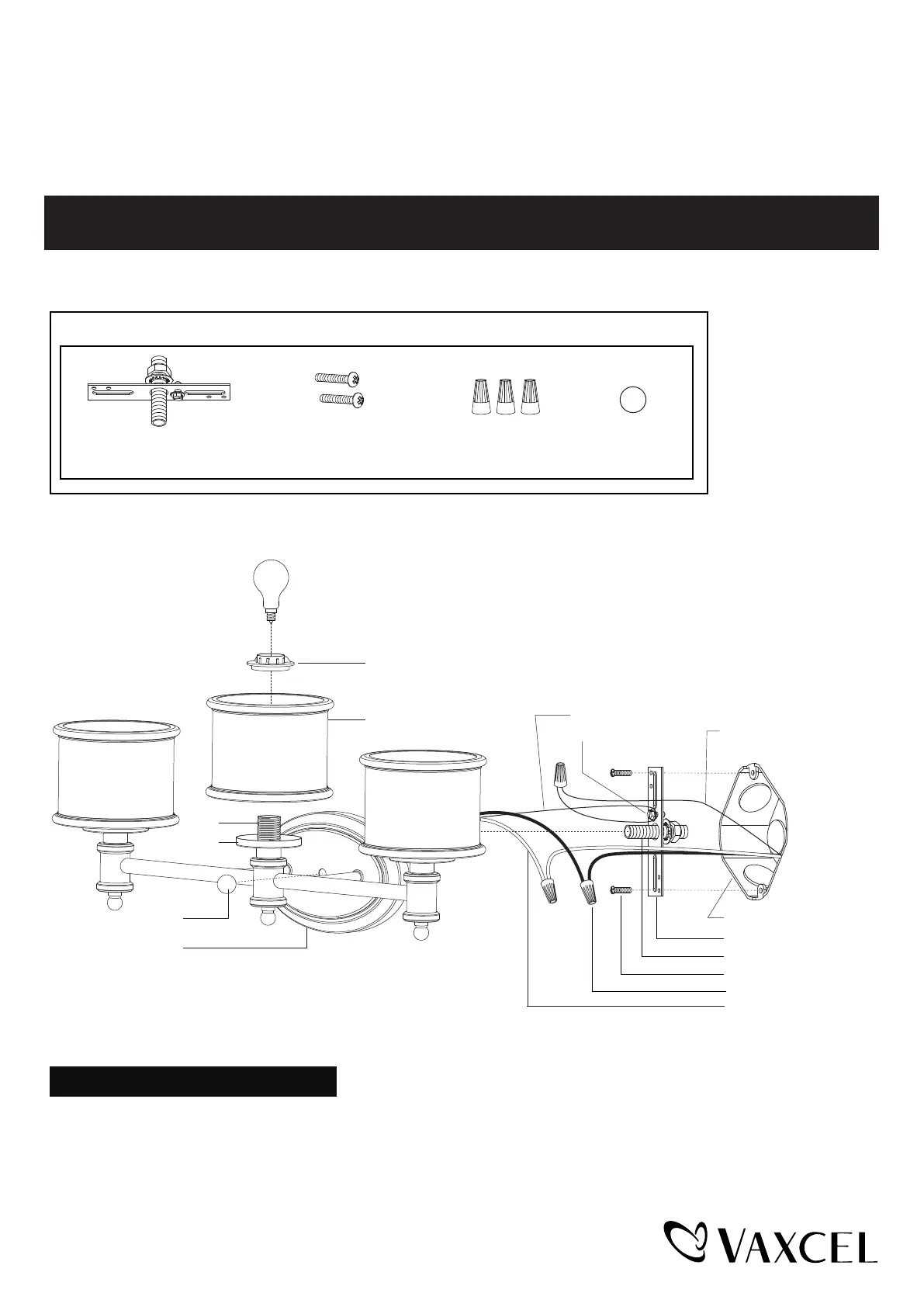

Mounting Screw (B)Wire Connector (C)End Cap (D)Mounting Strap Unit (A)

Mounting Screw (B)

Fixture Wire

Mounting Strap Unit (A)

Wire Connector (C)

Fixture Ground Wire

Green Ground Screw

Outlet Box

House Ground Wire

Threaded pipe

Glass Shade

Glass Holder

Socket Ring

Socket

End Cap (D)

Backplate

Max. 60W Candelabra Base bulb

(not included)
