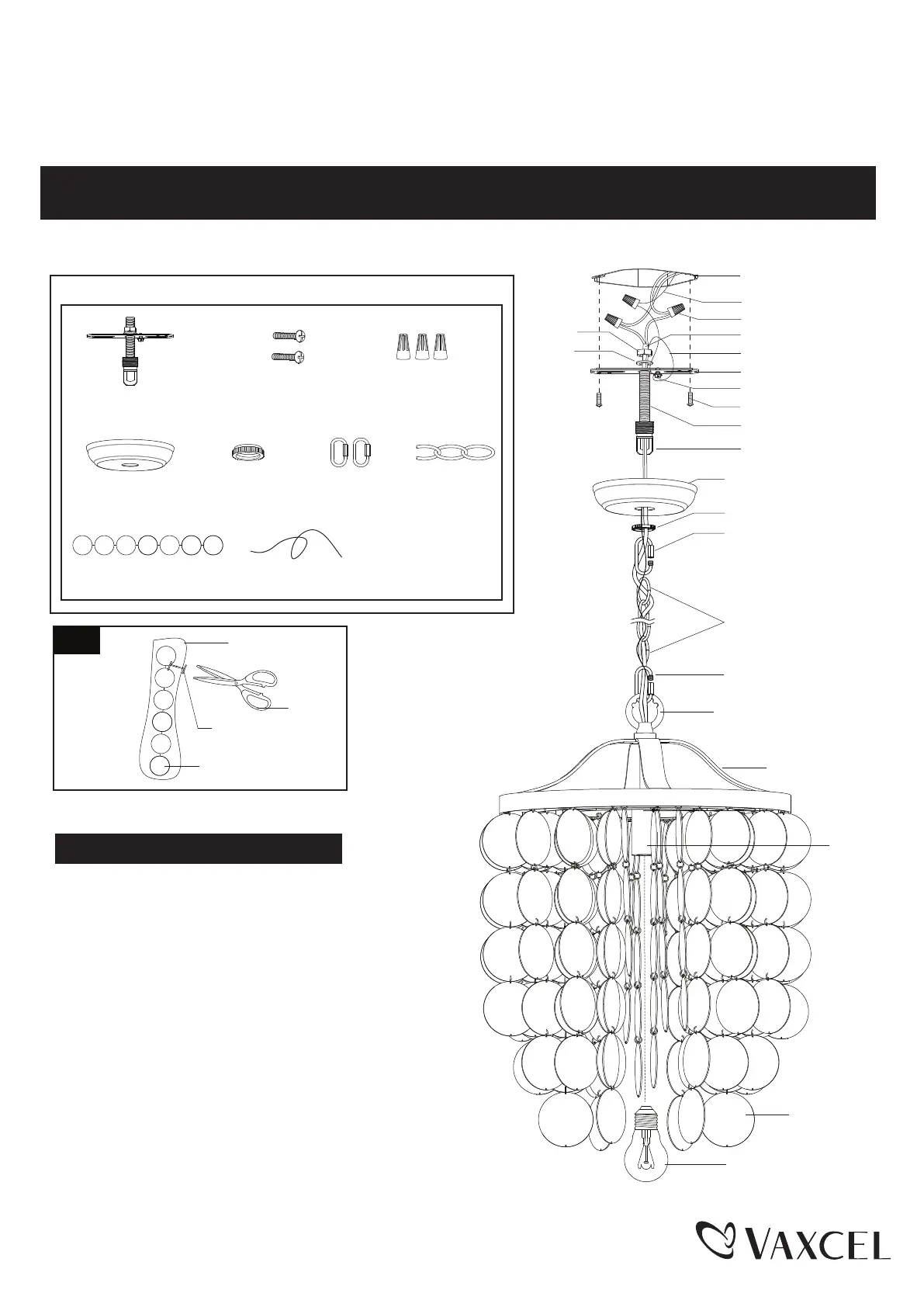

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Loop

Canopy (D)

Collar (E)

Quick Link (F)

Quick Link (F)

Chain (G)

Fixture

Pure Shell (H)

Socket

Max. 60W Type A Bulb

(not included)

Installation Steps

1. Cut the "H" plastic buckles with scissor when take down

the PE bags. (See Fig.1)

2. Attach the mounting strap unit (A) to the ceiling box by

using two mounting screws (B).

3. Adjust the length of the chain (G) you needed, then

weave the fixture wire and the fixture ground wire

through the chain (G), collar (E) and canopy (D).

4. Connect one end of the chain (G) with the loop by

using a quick link (F).

5. Connect the other end of the chain (G) with the top

loop by using another quick link (F).

Pure Shell (H)

PE Bag

Scissor

"H" Plastic Buckle

Fig.1

Turn off the power at fuse or circuit box.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.Read and save this instruction.

P0138

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Mounting Strap Unit (A)Wire Connector (C)

Collar (E)

Mounting Screw (B)

Canopy (D)

Quick Link (F)

Chain (G)

Pure Shell (H)Fishing Line (I)

X 1M

Outlet Box

Housing Ground Wire

Wire Connector (C)

Fixture Wire

Fixture Ground Wire

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Threaded Pipe

Hex Nut

Washer

Top Loop
