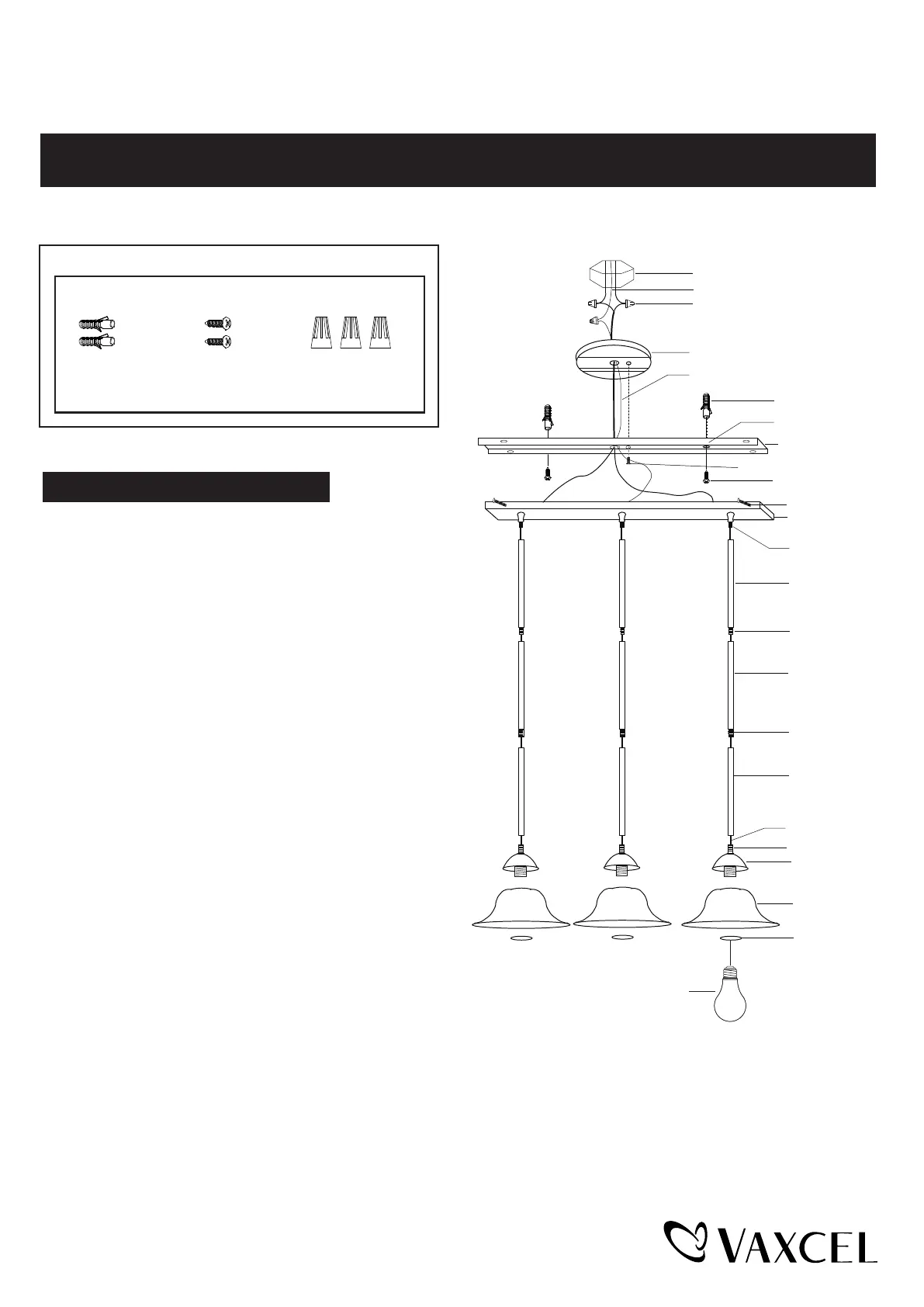

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.Read and save this instruction.

PD5027BN / PD5027OBB

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

1. Unscrew the set screws from the bar, and attach the canopy

and the mounting plate to the ceiling:

a. If the ceiling material is concrete:

Aim the middle hole of the mounting plate at the center of

the outlet box. Mark the two setting holes of the mounting

plate on the ceiling, drill these two marks, and then thread

the wall anchors into the two holes of the ceiling. Thread

the wires of the power source through the canopy and

the mounting plate. Attach the canopy and the mounting

plate to the ceiling by threading the drywall screws (B)

through the setting holes of the mounting plate into

th wall anchors (A).

b. If the ceiling material is wooden:

Thread the wires of the power source through the

canopy and the mounting plate. Attach the canopy and

the mounting plate to the ceiling by threading the drywall

screws (B) through the setting holes of the mounting plate

into the ceiling.

c. If the ceiling material is sheetrock:

Thread the wires of the power source through the canopy

and the mounting plate. Attach the canopy and the

mounting plate to the ceiling by threading the small

steel nails (not supplied) through the setting holes of

the mounting plate into the ceiling.

2. Take the proper numbers of the rods from three single

pendants which just be dismantled to install.

Rod connections:

a. Thread the fixture wire from the glass holder through the down rod, and secure the down rod to the glass holder.

b. Thread the fixture wire from the down tube through the middle rod and secure the middle rod with the threaded

pipe.

c. Thread the fixture wire through the upper rod, and then secure the upper rod with the threaded pipe.

d. Thread the fixture wire through the set threaded pipe of the bar and secure the upper rod to the bar.

e. Complete the same steps for the other glass holders and rods.

* The height can be adjustable by adding or reducing one or two rod from upper rods and middle rods.

Upper Rod

Threaded Pipe

Set Threaded Pipe

Threaded Pipe

Glass Shade

Socket Ring

Threaded Pipe

Glass Holder

Middle Rod

Down Rod

Fixture Wire

Bar

Canopy

Wire Connector

(C)

House Ground Wire

Fixture Ground Wire

Outlet Box

Set Screw

Drywall Screw

(B)

Green Ground Screw

Mounting Plate

Anchor

(A)

Setting Hole

Max. 100W Medium Base bulb

(not included)

Turn off the power at fuse or circuit box.

Installation Steps

Hardware Package (included):

Anchor (A)

Drywall Screw (B)

Wire Connector (C)

Page 1 / 2

230410
