ASSEMBLY AND INSTALLATION
INSTRUCTIONS
C0319
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Hardware Package (included):
Mounting Screw (B)Wire Connector (C)Finial (D）Mounting Strap Unit (A)
Turn off the power at fuse or circuit box.
Installation Steps
1. Attach the mounting strap unit (A) to the outlet box by
using two mounting screws (B).
2. Choose three same length of the chains you need, hook one
end of the chains to the arms, and then weave the fixture wire
and the ground wire through one of the chains, then connect
the other end of the chains to the loops.
3. Connect the smooth wire from the fixture (marked) to
black wire from the outlet box (power), the ribbed wire
from the fixture (unmarked) to white wire from the outlet
box (neutral) with the wire connectors (C) provided.
Connect the copper wire from the fixture to the mounting
strap unit (A) by securing it with the green ground screw,
then connect it to the house ground wire with wire
connector (C).
Carefully put all the wires into outlet box.
3. Remove the finial (D) from the mounting
strap unit (A).
4. Attach the ceiling pan to the mounting strap
unit (A) by inserting threaded pipe into the
center hole the ceiling pan and secure it with
the finial (D).
NOTE: Depth of threaded pipe may need
to be adjusted to properly fit the finial.
5. Install 3 x 60W Max. candelabra base
bulbs (not included).
See relamping label at socket area or
packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Page 1 / 2

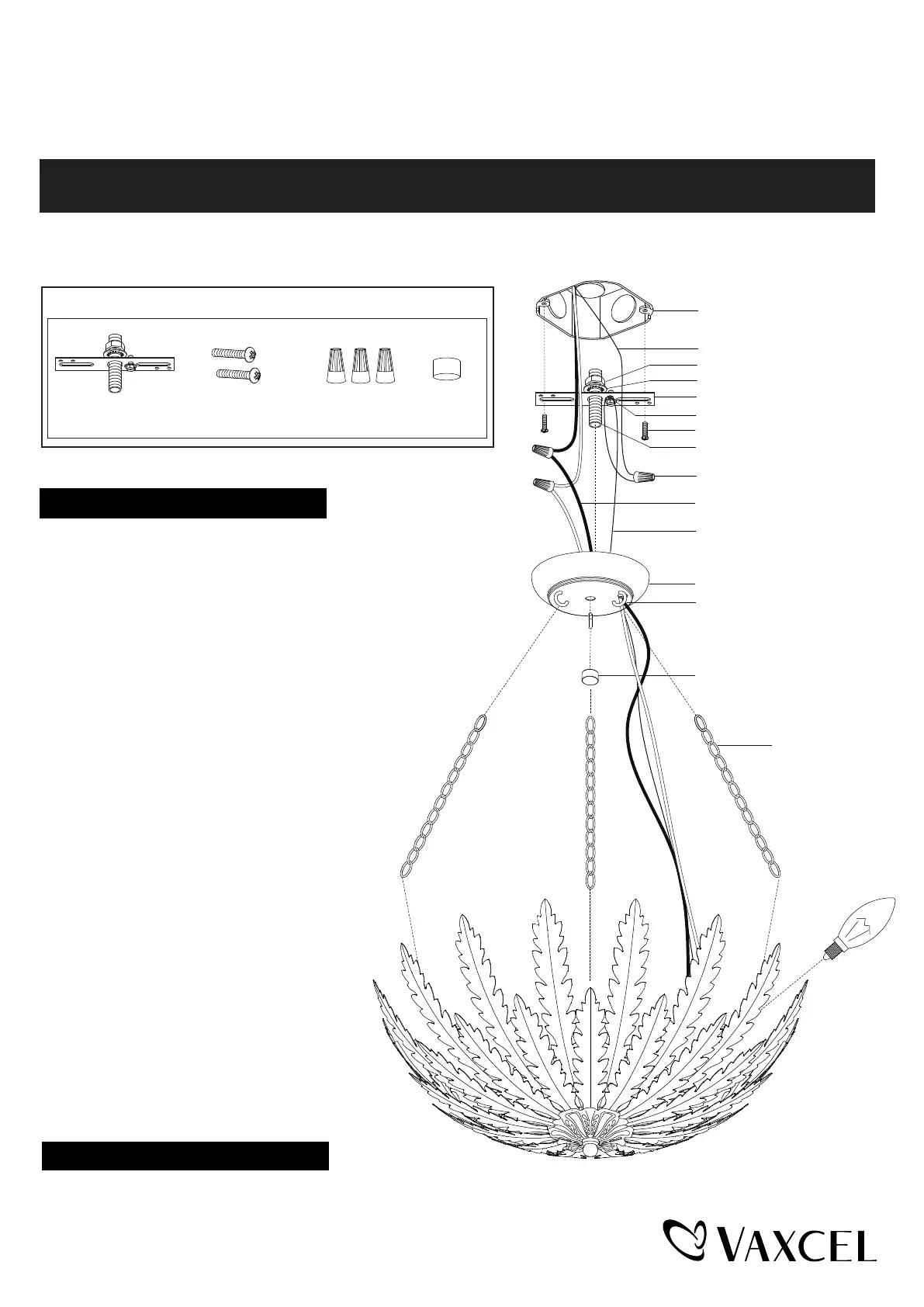

Mounting Screw (B)
Green Ground Screw
Wire Connector (C)
House Ground Wire
Fixture Ground Wire
Outlet Box
Fixture Wire
Threaded Pipe
Mounting Strap Unit (A)
Hex Nut
Washer
Canopy
Hook
Finial (D)
Chain
Max. 60W
Candelabra base
bulb (not included)
241030
