ASSEMBLY AND INSTALLATION
INSTRUCTIONS
W0462
Turn off the power at fuse or circuit box
Installation Steps
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Page 1 / 2

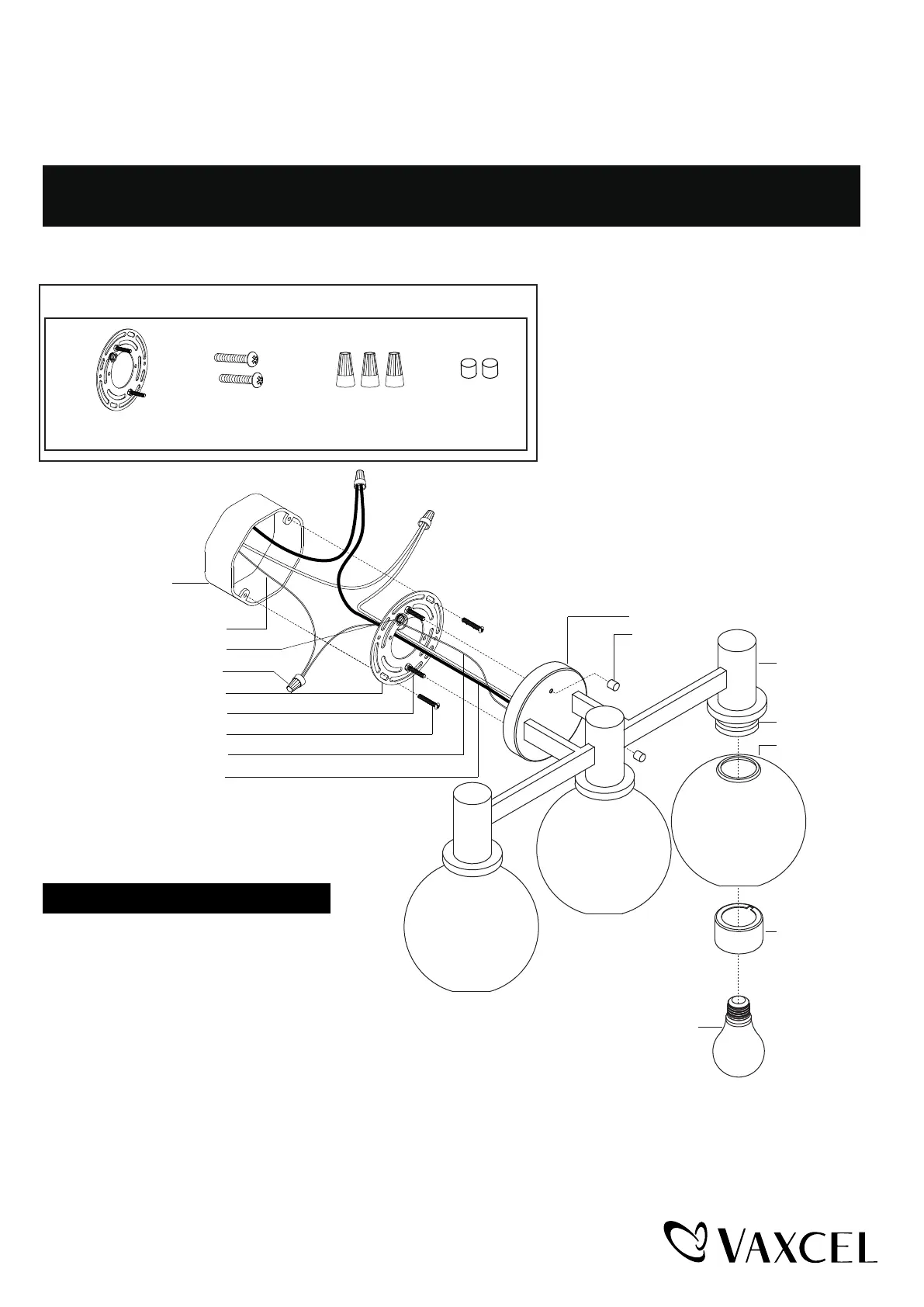

Mounting Plate Unit (A)
Wire Connector (C)
Mounting Screw (B)
Bolt Nut (D)
Hardware Package (included):
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Ground Wire
Green Ground Screw
Fixture Wire
Mounting Screw (B)
Outlet Box
Fixture Mounting Screw
Backplate
Bolt Nut (D)
Fixture
Socket
Socket Ring
Glass Shade
Max. 60W Medium Base
Bulb (not included)
1. Unscrew the two bolt nuts (D), remove
the mounting plate unit (A) from the backplate.
2. Attach mounting plate unit (A) to the outlet box
using two mounting screws (B). Adjust the length
of the preinstalled fixture mounting screws if necessary.
Note: Make sure that the fixture mounting screws are
lined up vertically to make the fixture level.
3. Pull out the wires and ground wire from the outlet box. Make wire connections using the wire connectors (C) as follows:
---Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
231116
