ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
C0301
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
231123
Page 1 / 2
1
Ceiling Pan
Screwdriver
Mounting Screw (A)
Turn on the power at fuse or circuit box

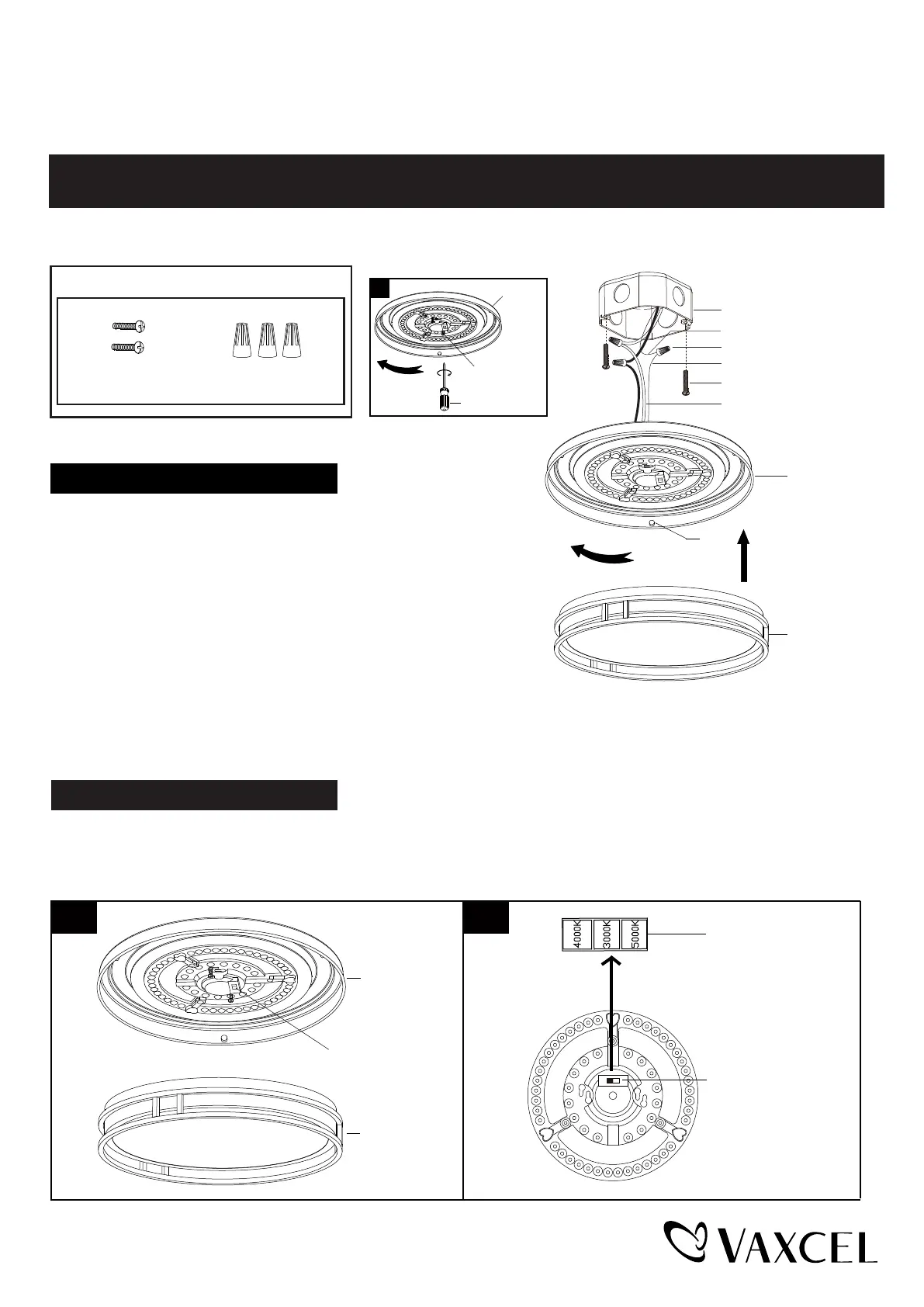

1. Attach the two mounting screws (A) to the holes on outlet box,
thread them in part way: 2 to 3 turns only.
2. Connect the black wire to black (power) wire, white wire to white
(neutral) wire and fixture ground wire to house ground wire with
supplied wire connectors (B).
Tuck all wires into outlet box.
3.
Attach the ceiling pan to the outlet box by inserting two mounting
screws (A) head into the keyholes, then rotate the ceiling pan until
it is locked in place, finally secure the mounting screws (A) tightly
with screwdriver (not included) (See Fig.1).
4. Attach the shade to the ceiling pan by aligning studs and slots, then turn it clockwise until it is locked in place.
1-a1-b
Color Temperature
View Fig.1-b
Toggle Switch
Adjusting the Correlated Color Temperature (CCT) of the Light
Customize the correlated color temperature (CCT) of the LED light by moving the toggle switch (For Reference).
Ceiling Pan
Shade
Turn off the power at fuse or circuit box
Installation Steps
Hardware Package (included):
Wire Connector (B)Mounting Screw (A)
Outlet Box
Fixture Ground Wire
Fixture Wire
Shade
Ceiling Pan
Mounting Screw (A)
Wire Connector (B)
House Ground Wire
Stud
