WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

191211

1. Remove the two ball nuts (D). Remove the mounting plate unit (A) from the backplate.

2. Attach mounting plate unit (A) to the outlet box using two mounting screws (B).

3. Attach the inner metal mesh shade onto the outer metal mesh shade and secure them with the socket rings, by

supplied socket fixer.

Turn off the power at fuse or circuit box.

Installation Steps

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

W0354

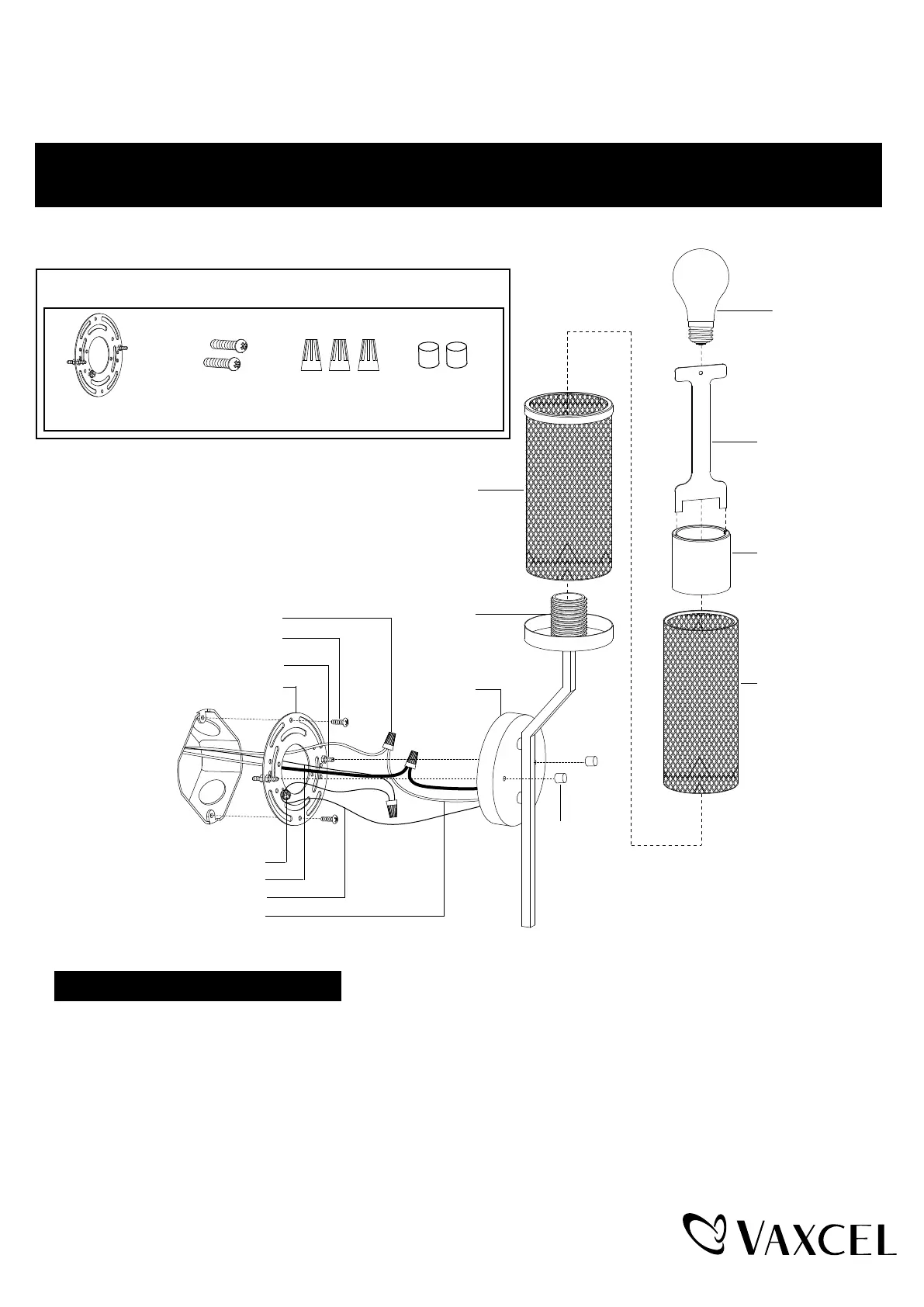

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Ball Nut (D)Mounting Plate Unit (A)

Wire Connector (C)

Green Ground Screw

Headless Screw

Mounting Plate Unit (A)

Mounting Screw (B)

Backplate

Socket

Inner Metal Mesh Shade

Ball Nut (D)

Socket Ring

Socket Fixer

Outer Metal Mesh Shade

Fixture Ground Wire

House Ground Wire

Fixture Wire

Medium Base Bulb Max.60W

(not included)
