ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0669 / T0670

,

Maximum Wattage: 60W Bulb

Work Temperature: - 22°F~104°F

1. Read all instructions carefully before installation and

operation.

2. If you are not familiar with state and local electrical codes

it is recommended that you consult with a qualified

electrician.

3. Before installation, shut off power at the main fuse or

circuit breaker box. Be aware that simply turning off the

wall switch is not sufficient to prevent an electrical shock.

4. This fixture requires a 120V AC, 60 Hz power source.

5. Do not attempt to take the lantern apart; there are no

serviceable parts inside.

6. To avoid sensor damage by lightning or electrical surge,

make sure the ground wire is securely connected.

7. For general safety and to avoid any possible damage to

the sensor, be sure the power is switched "off" before

replacing the bulb.

8. Compatible with most LED dimmable bulbs.

Hardware Package (included)：

Important to Know

Features

W

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Page 1 / 5

1. Energy saving fixture.

2. Use dim-to-full brightness where dim-illumination

is preferred, such as your front entrance. Use

off-to-full brightness where off/on illumination is

preferred, such as your backyard.

3. When in manual override mode, use wall switch

to keep the light ON till dawn.

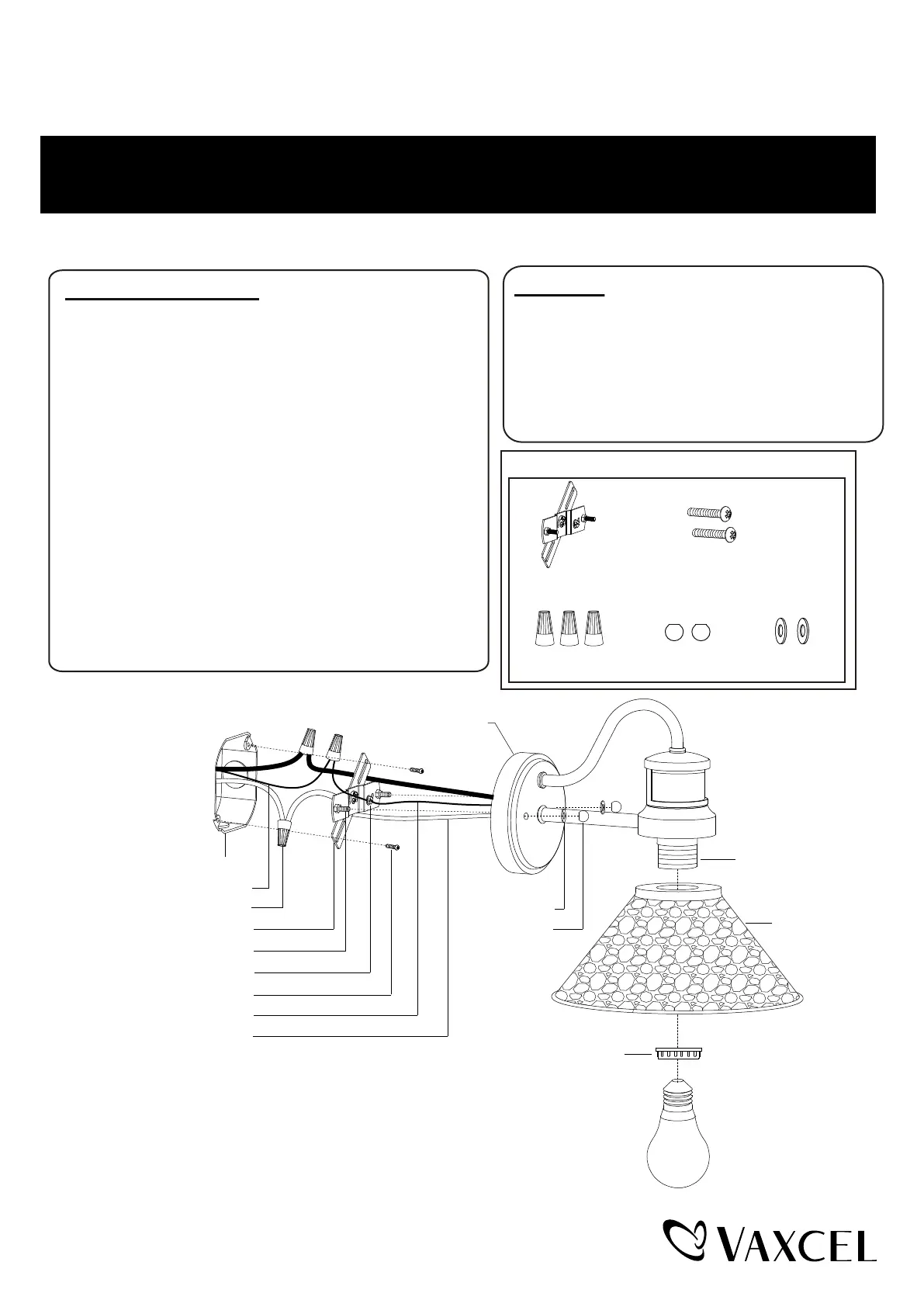

Mounting Screw (B)

Wire Connector (C)Bolt Nut (D)

Crossbar Unit (A)

Rubber Pad (E)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Fixture Mounting Screw

Green Ground Screw

Crossbar Unit (A)

Fixture Wire

Fixture Ground Wire

Rubber Pad (E)

Bolt Nut (D)

Socket Ring

Backplate

Shade

Socket

Max. 60W Type A Bulb

(not included)

230620
