Pagina 1/3
1 947574
CAUTION: To reduce the risk of electric shock,
Do not remove cover (or back).
No user serviceable parts inside.
Refer servicing to qualied service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 2
VIP- -IC, VIP- - - 422A 422A IC V4
InformaCast
®
Compliant

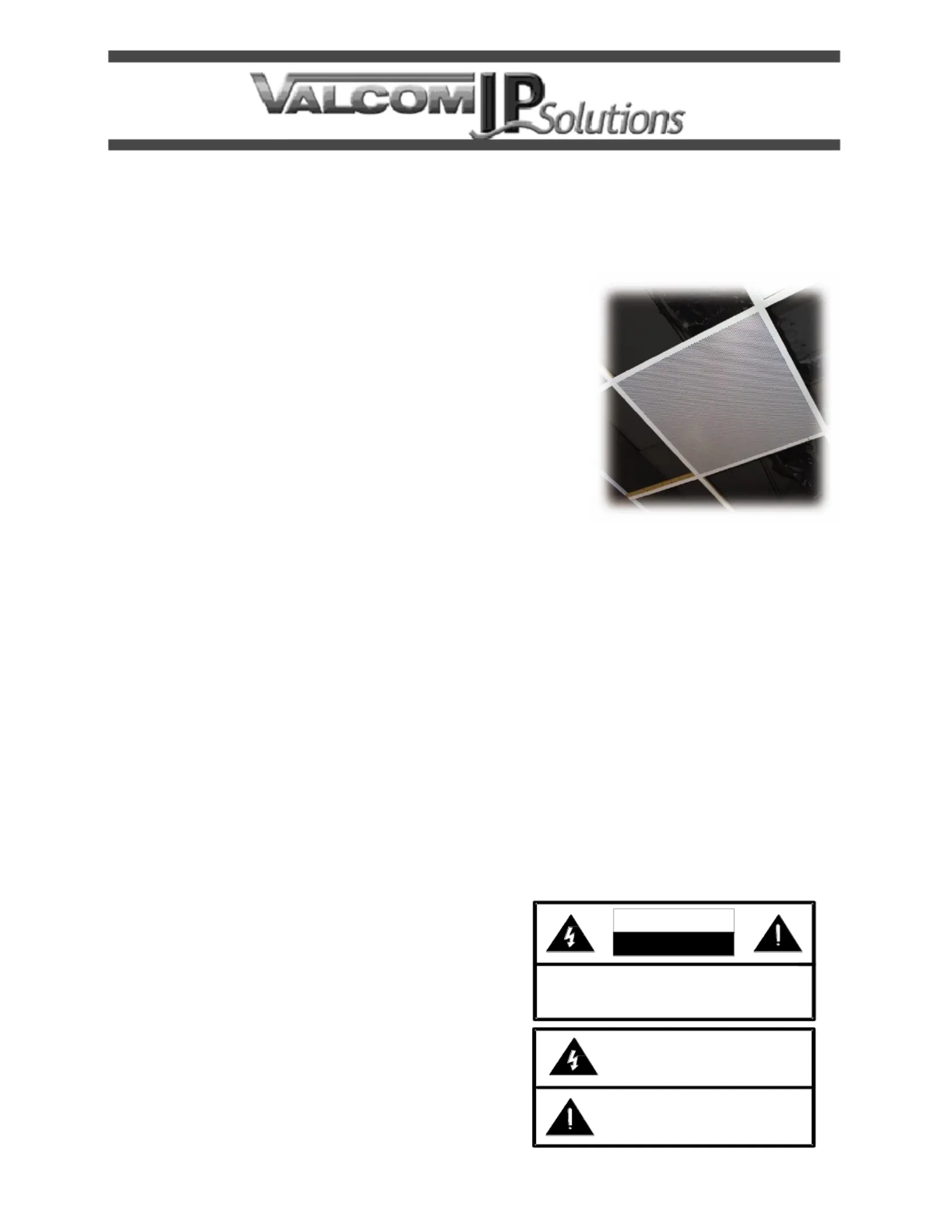

LAY- TALKBACK IP CEILING SPEAKER IN
INTRODUCTION
The VIP-422A- and VIP-422A- - InformaCast IC IC V4
Compliant - Talkback IP Ceiling Speakers Lay In
enable voice access to a single zone paging over of
an IP-based network. The speaker output level is
controlled by the InformaCast server. The lay-in
ceiling speaker grille is made of steel with a white
baked enamel nish. The VIP- 2A- replaces a 42 IC
2’ x 2’ ceiling tile. Power is provided to the unit via
a Power over an Ethernet (PoE) switch meeting the
802.3af specication. The -V4 model is identical in
t, form and function to the non -V4 model.
SPECIFICATIONS
Access Methods
• Singlewire InformaCast Server
• SIP enabled telephone system –
• Valcom M Cast Page Group
Features
• Full Duplex Communication (-V4 only)
• Ambient Noise Adjustment (-V4 only)
• Power over Ethernet (PoE) 802.3af compliant
• High E iciency Class-D Amplier ff
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
These products are intended for use with a UL
Listed power source marked “Class 2” or “LPS”
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Dimensions/Weight
• 23. L x 23. W x D 75” 75” 3.75”
(60.33 cm) x (60.33 cm) x (9.53 cm)
• Weight: 5.5 lbs. (2.49kg)
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates uses,
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
Precautionary Designations
2 947574
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chion sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplicateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not t into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la che polarisée ou de mise à la terre. Une
che polarisée possède deux lames dont une plus large que l'autre. Une che de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la che fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specied by the manufacturer.
N'utilisez que des xations / accessoires spéciés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specied
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Conez toute réparation à un personnel qualié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la che est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
• WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
• AVERTISSEMENT - An de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.
• Apparatus shall not be exposed to dripping
or splashing and no objects lled with
liquids, such as vases, shall be placed on
the apparatus.
• L’appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne
doit être placé sur l’appareil.
Mounting
The VIP- -IC is designed to directly replace a 2422A ’
x 2’ ceiling tile.
Network Connection
The VIP-422A-IC has one RJ-45 network connector
on the rear panel. Use a standard patch cable to
connect the VIP-422A- to an Ethernet switch IC
providing Power over Ethernet (PoE) meeting the
802.3af specication. If the switch does not provide
power, a mid-span power injector may be used.
(See Figure 1)
Call Switch Connection
For IP Speakers using Talkback functionality, a call
switch input via screw terminals is provided.
Connect a momentary contact switch to Switch 1
and Ground.
-10 dB Line Level Out Connection
T -10dBm Line Level Out may be connected to he
up to 40 Valcom Self Amplied Speakers in order to
provide additional sound reinforcement in an area .
Mute Out Connection
The Mute Out may optionally be connected to the
mute input of Valcom audio management systems
to suspend locally originated audio during intercom
announcements.
LED 1 and LED 2 Connection
LED 1 (+) and LED 2 (-) is a current limited output
designed to illuminate an optional LED. The LED is
intended to provide visual indication of call
progress. The LED illumination will ash when the
call switch is pressed and will continue to ash until
the call is answered. The LED illumination will be
solid when a connection to the unit is established.
Reset
The Reset button is located behind a pin hole
beside the Network connection and may be used to
return the speaker to factory default settings. Press
and hold the reset button for more than 10 seconds,
but 20less than , to reset the IP address and other
conguration to factory default.
Press and hold the reset button for more than 20
seconds to reset all conguration including the ,
password.
3 947574

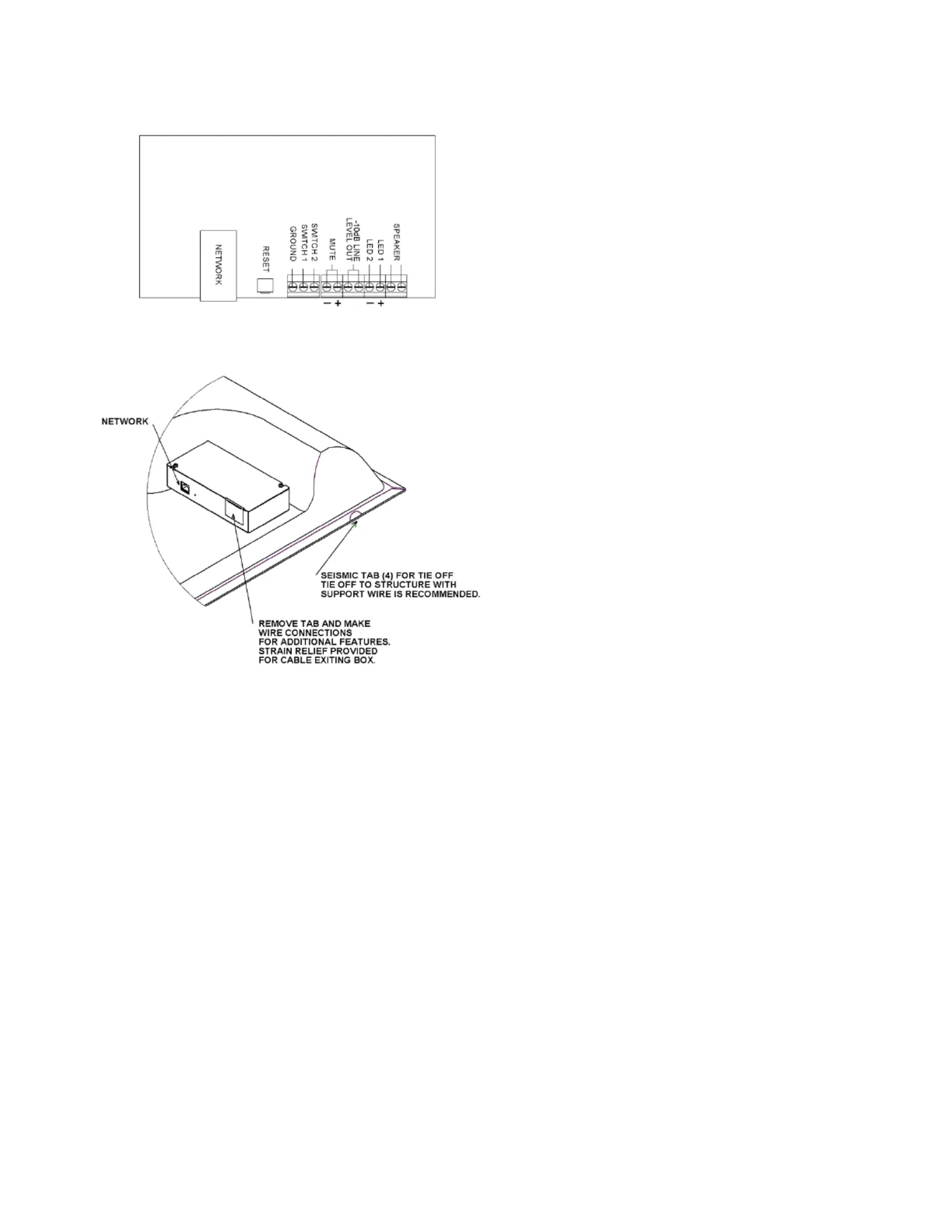

FIGURE 1
IP SPEAKER CONNECTIONS
Setup
The VIP-422A-IC will automatically acquire an IP
address (using DHCP) and connect to the
InformaCast server when connected to the network
and powered up. Information specic to your
application will need to be programmed into the
InformaCast server. Refer to the InformaCast
documentation for further information.
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute
a spare unit for the suspected defective unit.
Assistance in troubleshooting is available from the
factory. Call (540) 563-2000 and press 1 for
Technical Support or via email at
support@valcom.com. When requesting
assistance, you should include all available
information. It is strongly suggested that you go to
the web site and review the information at
www.valcom.com.
Valcom equipment is not eld repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address,
phone number, contact person and the nature of
the problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
WARRANTY
Warranty information may be found on our website
at www.valcom.com/warranty.
