1 947810

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

Issue 1

VIP-148AL IP Talkback Horn

INTRODUCTION

The VIP-148AL IP Talkback Horn enables

two-way handsfree voice access to a single

location over an IP-based network. This allows a

page zone extension anywhere on the network.

The horn audio level is electronically adjusted via

software. A call switch input connection is

provided for call initiation. Power is provided to

the VIP-148AL via a Power over Ethernet (PoE)

switch meeting the 802.3af specication.

SPECIFICATIONS

Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP-811

FXS Port w/VIP-821

SIP telephone system

Features

RJ-45 for network connection

Network activity LEDs

Power over Ethernet (PoE) 802.3af

compatible

Dimensions/Weight VIP-148AL

Horn

7.38” H x 10.0” W x 10.4” D

(18.75cm x 25.4cm x 26.42cm)

 Weight: 3.70 lbs. (1.68 kg)

Network Interface

1.62” H x 5.63” W x 3.45” D

(4.11 cm) x (14.30 cm) x (8.73 cm)

with brackets– 8.22” W (20.87 cm)

Weight: 2.10 lbs. (0.95 kg)

Environment

Network Interface:

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Horn:

Suitable for indoor or outdoor installation

Nominal Power Requirements

Via 802.3af (PoE) Ethernet Switch: Class 3

Packing List

Qty Item

1 Network Interface

1 VIP-148AL Horn

1 VSP Document

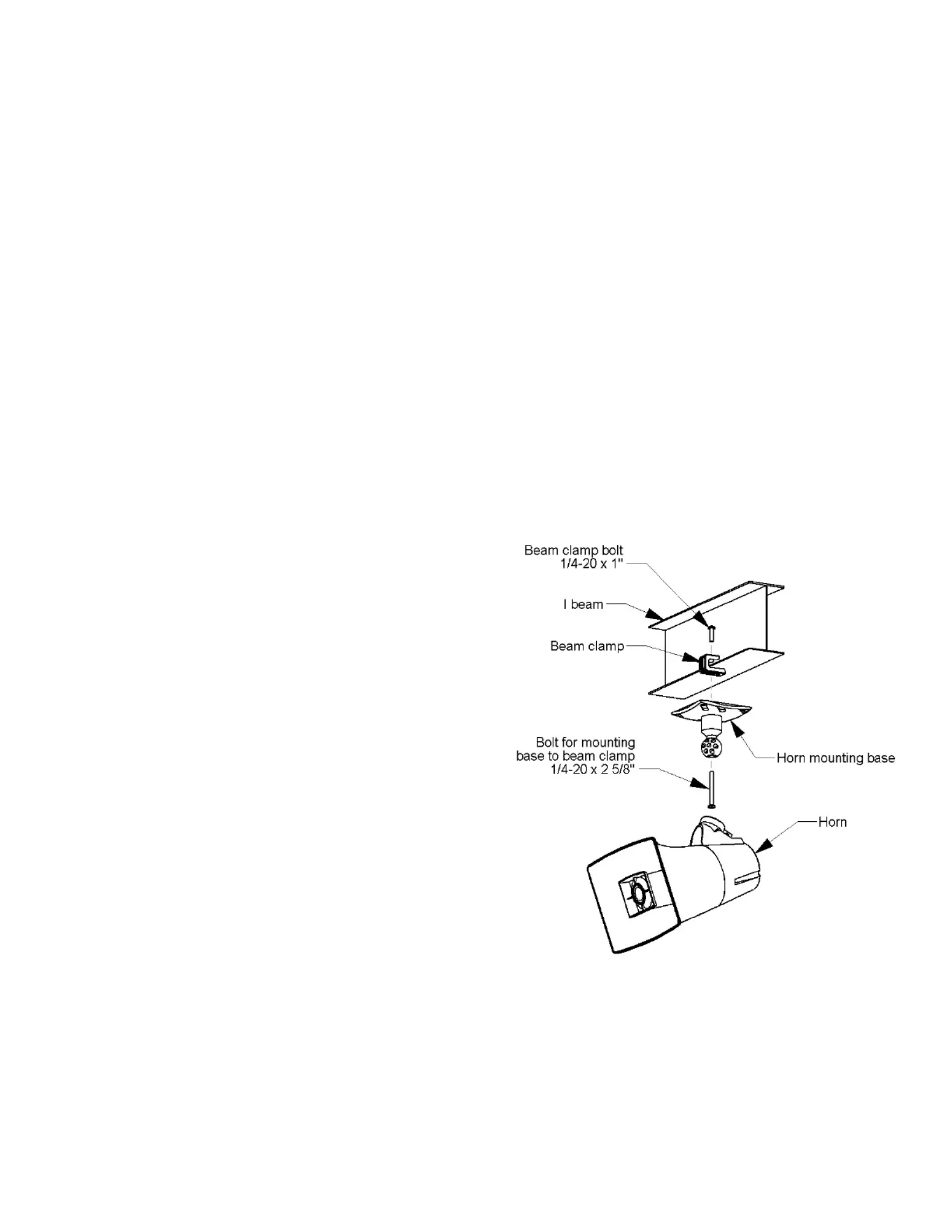

1 “C” Clamp

1 VM-186 RJ-45 Connector

Precautionary Designations
