LMX1214 Low-Noise, High-Frequency Buffer and Divider

1 Features

•Clock buffer for 300MHz to 18GHz frequency

•Divider output frequency supported up to 8GHz

•Ultra-Low Noise

–Noise floor of –161dBc/Hz at 6GHz output

–36fs additive jitter (100Hz to f

CLK

) at 6GHz

output

–5fs additive jitter (100Hz - 100MHz)

•4 high-frequency clocks output

–with shared divider by 1 (Bypass), 2, 3, 4, 5, 6,

7, and 8

•1ps typical output to output skew

•Support pin mode options for outputs enable and

divider /2, /3 and /4 values set

•AUXCLK output

–On separate divide bank

–1, 2, 4 pre-divider

–1 (bypass), 2, …, 1023 post divider

•8 programmable output power levels

•SYNC feature to all divides

•2.5V operating voltage

•–40ºC to +85ºC operating temperature

2 Applications

•Test & Measurement:

–Oscilloscope

–Wireless equipment testers

–Wideband digitizers

•Aerospace & Defense:

–Radar

–Electronic warfare

–Seeker Front end

–Munitions

–Phase array antenna / Beam forming

•General Purpose:

–Data converter clocking

–Clock buffer distribution / division

3 Description

The LMX1214 features high output frequency, ultra-

low noise floor, and very low skew clocks distribution.

The device has four high-frequency output clocks

and a lower frequency auxiliary clock output. The

device supports both buffer and divide mode for the

high-frequency clocks. This device can distribute the

mutlichannel, low skew, ultra-low noise local oscillator

signals to multiple mixers.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

LMX1214RHA (VQFN, 40)6mm × 6mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

CLKOUT0

CLKOUT1

CLKOUT2

CLKOUT3

AUXCLKOUT

CLKIN

SYNC

÷1,2,3,...1023

Digital

Control

SDI

CS#

MUXOUT

SCK

÷1,2,4

CLK0_EN

CLK1_EN

CLK23_EN

Pin Control:

Buffer Mode

Divide with 2,3,4

Output Enables

SPI Control:

AUXCLKOUT

Divide with 5,6,7,8

Phase SYNC

Ouput Power Control

DIV_SEL0

DIV_SEL1

MUXSEL

÷2,3,4,5,6,7,8

Legend

Accessible through SPI control only

Accessible with Pin and SPI control

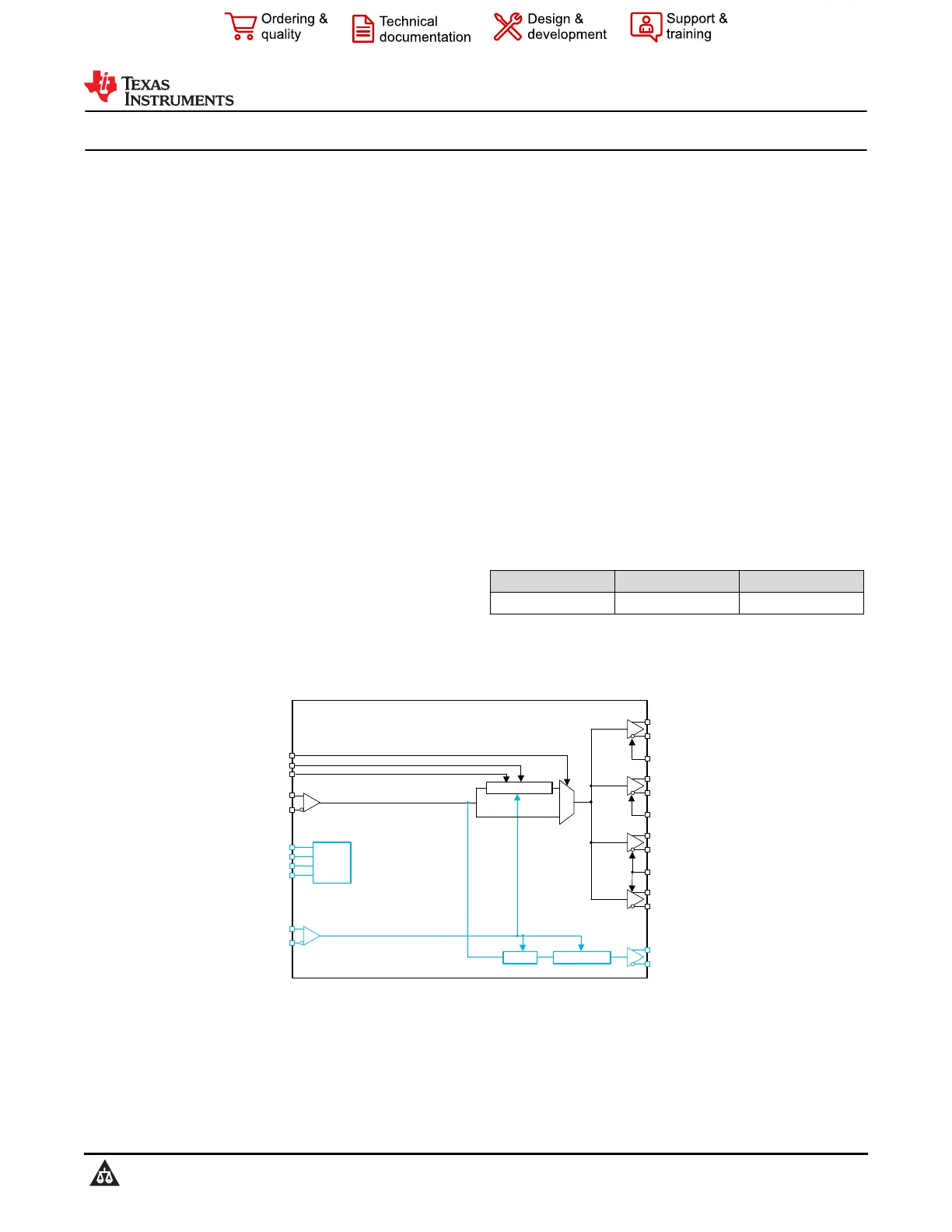

Block Diagram

LMX1214

SNAS866A – DECEMBER 2023 – REVISED SEPTEMBER 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
