AR84 AP8720 issue 2
The AR84 is an expander audio interface rack for the Allen & Heath GLD and Qu digital mixing
systems. It provides 8 remote controlled mic/line preamps and 4 XLR line outputs. Up to two AR84
AudioRacks can be added to a GLD system. The AR84 can connect directly to the mixer or to the
AR2412 AudioRack to expand the number of system inputs and outputs.
The AR84 is simply an audio interface. It cannot be used by itself. It must connect to the GLD or Qu
mixer which is where the audio is processed.
The AR84 is not compatible with Allen & Heath iLive Series components or ACE connection.
Refer to the GLD User Guide AP8561 and Qu User Guide AP9372 for instructions on connecting
and using the AR84 with your system. Refer to the Allen & Heath web site for more information and
suitable Cat5 cables.

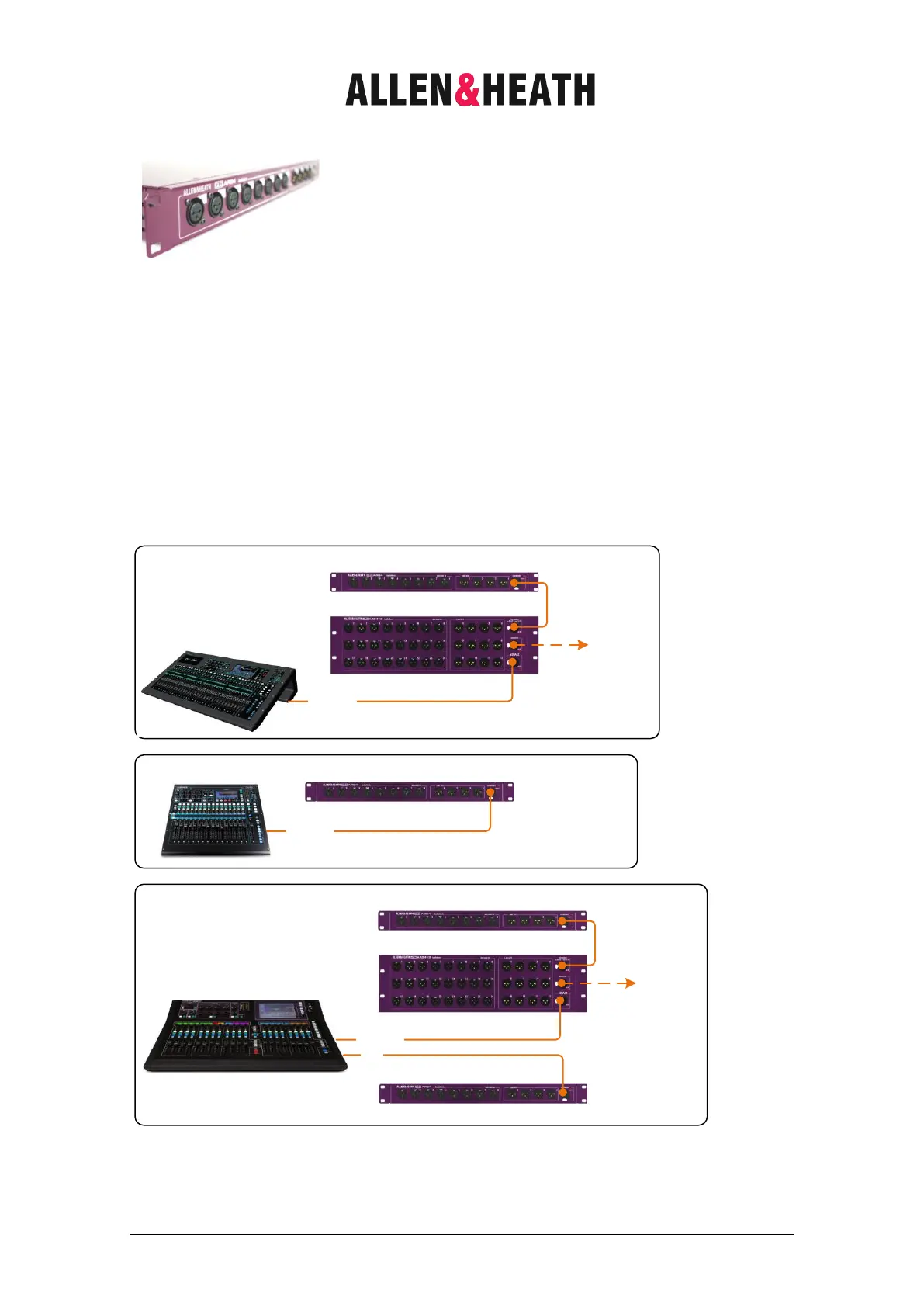

The diagrams below show some example applications.
AR2412
dSNAKE
CH1-24
Out 1-12
ME-1 /
ME-U
AR84
CH25-32
Out 13-16
AR84
dSNAKE
CH 1-8Out 1-4
AR2412
dSNAKE
dSNAKE In 1-24
dSNAKE Out 1-12
ME-1 /
ME-U
dSNAKE Exp In 1-8
dSNAKE Exp Out 1-4
Surface Exp In 1-8
Surface Exp Out 1-4
AR84
Exp
AR84
Expander AudioRack
Qu-32 +
AR2412 + AR84
Access all 32
mic inputs on
stage
Qu-16 + AR84
8 remote inputs,
4 outputs, ideal
for a stereo PA
and 2 monitor
feeds
GLD-80 +
AR2412 + 2x
AR84
Fully expanded
GLD system, 48
in, 30 out
