HEAD OFFICE

SALUS Controls, Units 8-10,

Northeld Business Park,

Forge Way, Parkgate

Rotherham, S60 1SD

Model: IW10

WIFI ADAPTER MODULE FOR INVERTER

SALUS Controls is a member of the Computime Group

Maintaining a policy of continuous product development SALUS

Protect which is made up SALUS Controls and Safe4 reserves the

right to change specication, design and materials of products

listed in this brochure without prior notice.

www.saluscontrols.com

UK: [email protected]

DE / NL: [email protected]

FR: [email protected]

RO: [email protected]

DK: Support@salus-controls.dk

INPUT: AC 100 - 240V, 50 - 60Hz, 0.3A

OUTPUT: 5.0V

⎓

1.0A, 5.0W

SALUS Controls GmbH,

Dieselstrasse 34,

63165 Mühlheim am Main,

Germany

V05

07/2025

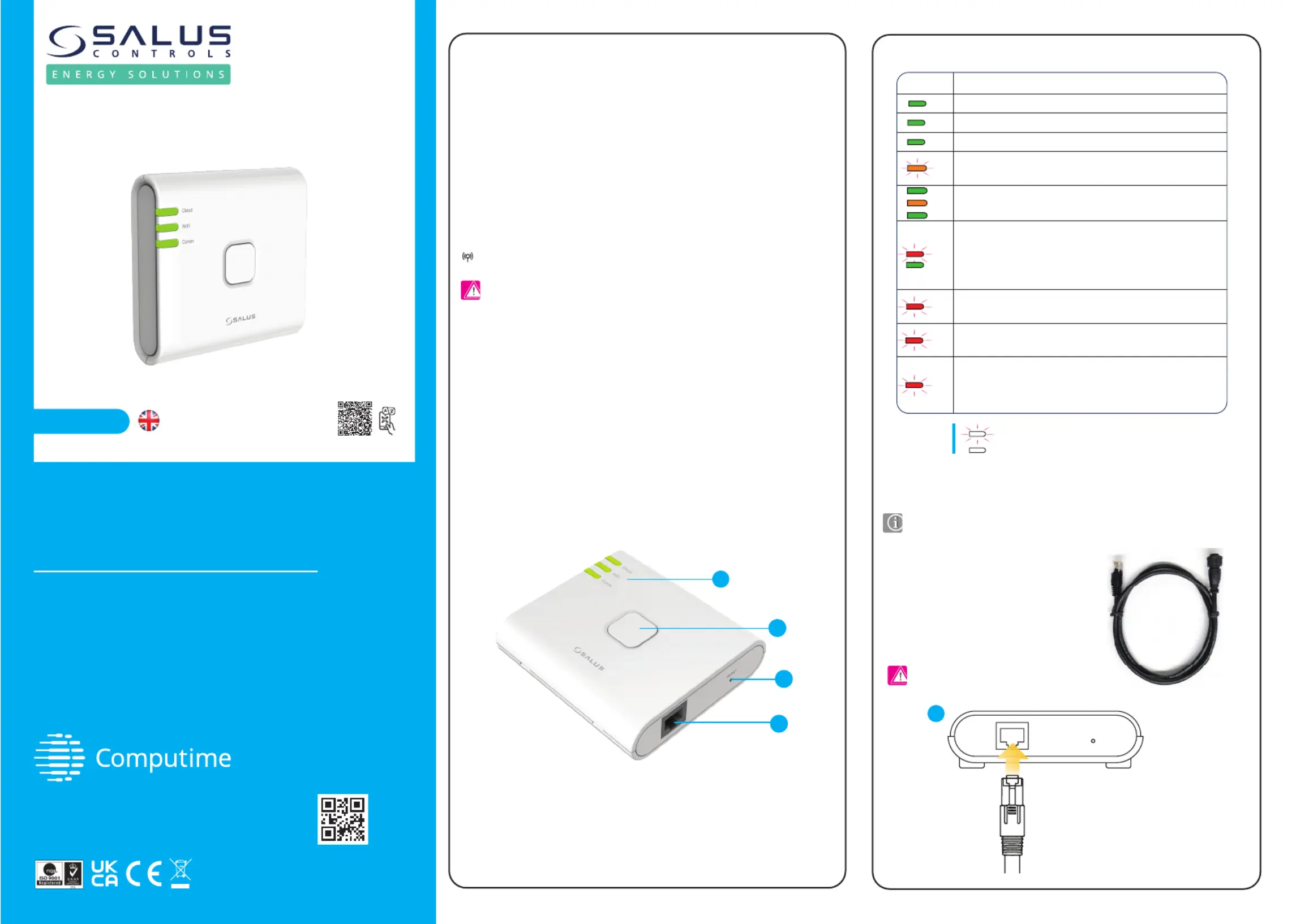

Quick Guide

Product description

To perform the installation, a cable with an

RJ45 Ethernet connector on one end and

a round aviation plug on the other will be

used. This cable has the purpose to set the

connection of the IW10 Dongle to the Single

or Triple phase inverter.

Introduction

Installation:

The IW10 WiFi Adapter Module is an advanced connectivity solution designed specically

for inverters, enabling seamless remote monitoring and control of your system via a wireless

network. This compact and easy-to-install module allows users to connect their inverter to a

local WiFi network, providing real-time access to performance data, status updates, and system

diagnostics through a user-friendly mobile app or web interface. Whether you're at home or on

the go, the IW10 ensures that you have complete oversight of your inverter's operation, helping to

optimize performance, increase energy eciency, and quickly address any issues that may arise.

This guide will take you through the setup process, key features, and essential usage tips, ensuring a

smooth and hassle-free experience with your IW10 WiFi Adapter Module.

Product Compliance

This product complies with the essential requirements and other relevant provisions of Directives

2014/30/EU, 2014/35/EU, 2014/53/EU and 2015/863/EU. The full text of the EU Declaration of

Conformity is available at the following internet address: www.saluslegal.com.

2405-2480MHz; <20dBm (Wi).

It is important to use the IW10 WiFi Adapter Module in accordance with all applicable

regulations to ensure both safety and performance. This device is intended for indoor use

only and should not be installed in outdoor or exposed environments where it may encounter

moisture, extreme temperatures, or other external elements. Always keep the device

completely dry, exposure to liquids could cause damage or malfunction. When cleaning the

device, always disconnect it from power and use only a dry cloth to avoid introducing moisture.

Additionally, the IW10 module is designed to be installed at heights of 2 meters or lower to ensure

easy access and safe operation. The maximum allowable operating temperature for the device is 45°C,

so be sure to avoid placing it in areas that may exceed this limit to prevent overheating or damage.

By following these guidelines, you will ensure the long-term functionality and reliability of the IW10

WiFi Adapter Module.

MULTI-LANGUAGE

MANUAL

Safety Information

The maximum operating temperature is 45°C.

Installation: The mounting height is less than 2m

Reset

LED Signal & Status

1

2

3

4

1. Cloud , WiFi, Comm LEDs

2. SETUP button

3. RESET button

4. RJ45 Ethernet port

LED SignalStatus

Cloud

- Dongle is connected to the cloud

WiFi

- Dongle is connected to the WiFi router

Comm

- Communication between the dongle and the inverter is correct

- Dongle is in WiFi Setup mode

Cloud

WiFi

Comm

- Dongle is in Factory Reset mode

Cloud

WiFi

- Firewall or Network Restrictions: Ensure no rewall is blocking the

dongle's connection to the cloud.

- Disable any rewall to stop connection to remote port 443 and 8443

- Check your Internet connection to any Website, e.g. www.bing.com

- Check your broadband provider if the Internet is not working

Cloud

- Dongle is not connected to the cloud

WiFi

- WiFi Setup is not correct.

- Possible reason: WiFi password is not correct

Comm

- Check the RJ45 plug, make sure the plug is fully inserted on the RJ45 socket.

- Check the status of the Inverter, make sure the battery and main power

supply is connected.

- Contact the distributor of the Inverter for technical support.

1

Insert the RJ45 Ethernet plug to the

socket of the IW10 Dongle.

Cable with RJ45 and Round aviation plug

Note: Max. output of power supply source

for WIFI Adapter module is less 15W

Solid Light

Flashing Light

Legend

WiFi
