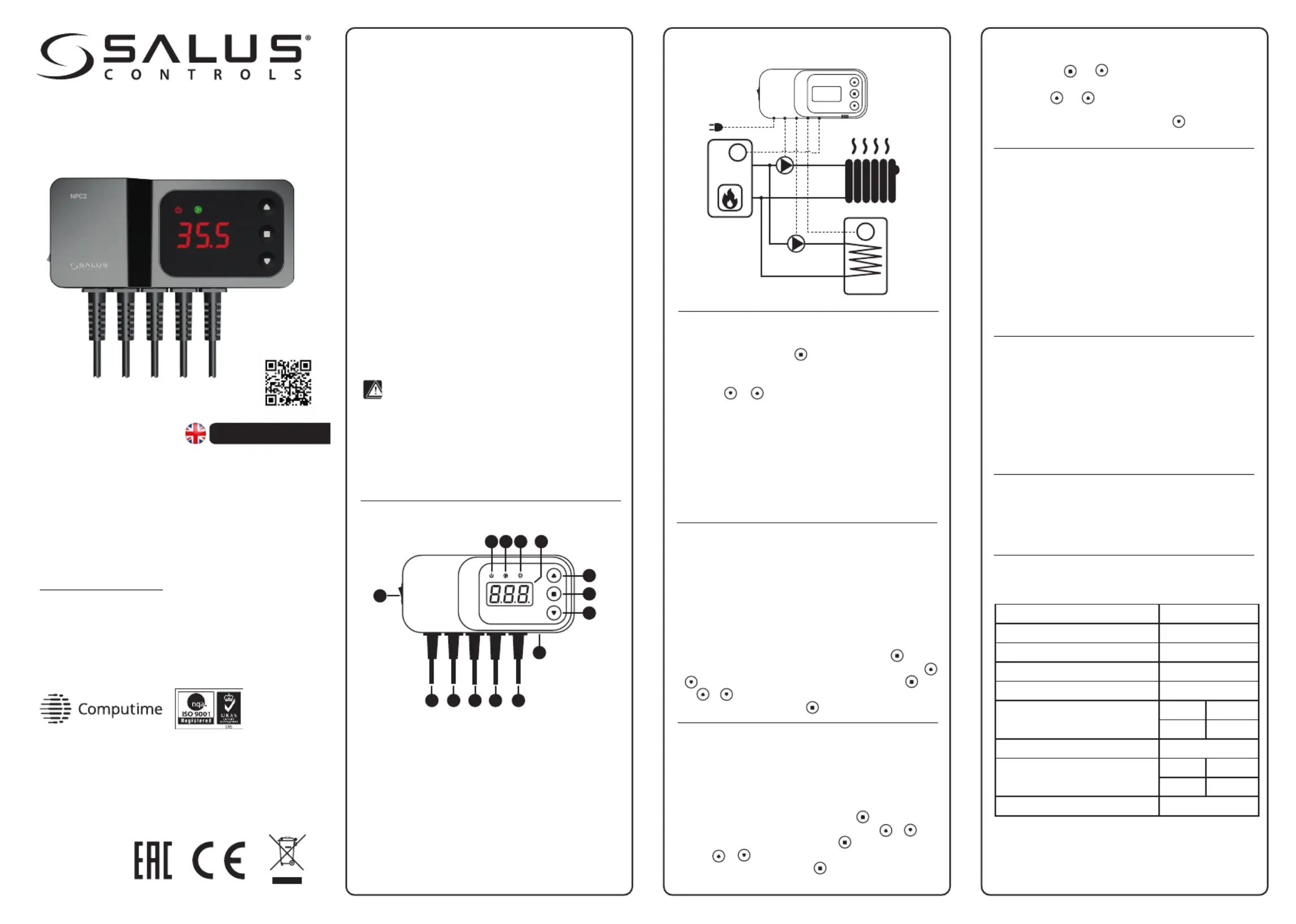

Pagina 1/1
Recirculation pump and ACM pump controller
Model: NPC2
Quick Guide
www.saluscontrols.com
SALUS Controls is a member of the Computime Group
Maintaining a policy of continuous product development SALUS Controls plc reserve
the right to change specication, design and materials of products listed in this
brochure without prior notice.
The NPC2 controller is designed for controlling a heat transfer fluid
(HTF) recirculation pump in central heating systems with solid fuel
boilers and for controlling a recirculation pump that supplies a
domestic hot water (DHW) coil. The HT recirculation pump starts
when the measured temperature exceeds the set temperature. The
operation of the HT recirculation pump depends on the temperature
difference recorded by T1 and T2. It starts operating when the
temperature of the heating medium exceeds the temperature in the
DHW tank by the hysteresis value set by the user. The DHW tank
recirculation pump operates until the temperature in the tank and
the temperature of the heating medium are equal or until the
temperature in the DHW tank is reached.
Product compliance
This product complies with the following European directives: GPSR
2023/988/EU, EMC 2014/30/EU, LVD 2014/35/EU, RoHS 2017/2102/
EU, and SVHC 215. The full text of the EU Declaration of Conformity is
available at the following web address: www.saluslegal.com
PN-EN IEC 61000-6-1:2019-03
PN-EN IEC 61000-6-3:2021-08
PN-EN 61000-4-4:2013-05
PN-EN 61000-4-5:2014-10
PN-EN IEC 61000-4-11:2020-11
PN-EN IEC 55014-1:2021-08
Safety information
Use in accordance with national and EU regulations. Use the device for
its intended purpose, keeping it dry. The product is intended for
indoor use only. Installation must be carried out by a qualified person.
Before performing any operations involving the power supply
(connecting wires, installing the device, etc.), make sure that the
power supply is not connected to the controller! Incorrect wiring
may damage or impair the product.
1234
5
6
7
8
1110
9
12
13
14
Controller description
1. Power source indicator
2. AT recirculation pump
indicator
3. ACM boiler recirculation
pump indicator
4. Display
5. Button “+”
6. Menu button
7. Button “–”
8. Alarm sound
9. T1 - AT recirculation
pump sensor
10. T2 - ACM boiler
11. ACM boiler recirculation
pump power cable
12. AT recirculation
pump cable
13. Controller power
supply cable – 230 V
14. Power switch
Electrical diagram
The hysteresis and set temperature for both pump types can be
changed by pressing the button to access the options
menu . The letters "C", "U" and "H" will ash on the display, and
at this point the set temperature can be changed using the
buttons or . After a few seconds, the controller will
return to normal operating mode and display the
measured temperature.
C – above this temperature, the AT recirculation pump will switch
on
Uabove this temperature, the ACM boiler recirculation pump
will switch o.
HThe ACM boiler recirculation pump will switch on when the
temperature measured by the sensor drops below the "U–H"
temperature.
Controller operation
Manual mode
Hysteresis
Additional features
Alarm function
Technical specications
Power supply230 V / 50Hz ±10%
Energy consumption2 W
Ambient temperature-10 - 50°C
6 A each
Maximum pump current AT / ACM
0 - 99°C
Temperature setting range
Temperature display range
AT5 - 80°C
ACM20 - 80°C
Temperature measurement range
-10 - 120°C
Sensor cable length
AT1,2 m
ACM3 m
Hysteresis adjustment range (H)5 - 30°C
230 V
ACM
NPC2
T
T
RADIATORS
046/202
CP function (Priority)
The operating priority can be changed by activating this function. If
only the ACM boiler recirculation pump is connected, the controller
will only switch on the pump once the temperature has reached
the set value. If this function is not active, the pumps operate
independently and no other priorities are active for the ACM boiler
recirculation pump.`
To activate the priority function, hold down the button
until the letters "P" and "L" appear on the display. Use the or
buttons to select "P", then conrm with the button . Use
th eor buttons to turn the priority function ON or OFF.
Conrm your selection with the button.
L function (Holiday mode)
This function blocks the AT recirculation pump, leaving only the
ACM boiler recirculation pump active. The AT recirculation pump
will only activate when the boiler temperature reaches 90°C
this is a protective function against overheating.
To activate Holiday mode , hold down the button until the
letters "P" and "L" appear on the display. Use the or
buttons to select "P", then conrm using .
Use the r obuttons to turn the priority function ON or OFF.
Conrm your selection with the button.
Hold down the and buttons to turn on the recirculation
pump. The pump will run until you turn it o manually by
pressing the buttons again.and
To view the boiler temperature, press the button.
The boiler temperature will be displayed after a few seconds.
This is the dierence between the temperature at which the
controller switches on the recirculation pump and the tempera-
ture at which it switches it o. The controller has a xed
hysteresis of 2 °C. For example:
1. If parameter "C" is set to 30 °C, the recirculation pump will turn
on when the measured temperature exceeds 30 °C and turn o
when the measured temperature falls below 28 °C.
2.If parameter "U" is set to 50 °C, the ACM boiler recirculation
pump will switch o when the measured temperature exceeds 50
°C and will switch on when the measured temperature falls
below the value "U–H".
The controller also has functions that prevent the pump from
jamming. The "anti-stop" function protects against limescale
deposits outside the heating season. The pump switches on every
14 days for 15 seconds.
Another protective function is "anti-freeze", which maintains
continuous pump operation if the sensor-measured temperature
falls below 5 °C.
The controller is equipped with an alarm signal that activates
when the temperature detected by the sensor exceeds 90 °C.
MANUFACTURER:
SALUS Controls plc,
Units 8-10,
Northeld Business Park,
Forge Way, Parkgate
Rotherham, S60 1SD
United Kingdom
IMPORTER:
Salus Controls
European Distribution sp.z o.o.
ul. Szamocka 8, piętro 6.,
01 748 Warszawa,
Poland
MULTILANGUAGE
MANUAL
