Charging your electric vehicle can put high demand on your home’s electrical

supply, especially when other appliances are running at the same time. This

can sometimes cause the main fuse to trip.

The SALUS CT Clamp (CTC) works with your SALUS EV Charger to prevent

this. Fitted to the incoming mains supply, it continuously monitors your

household’s electricity usage.

If the total demand approaches the supply limit, the system automatically

adjusts the charging power to prevent overload — ensuring safe and

reliable operation at all times.

Introduction

This product complies with the essential requirements and other relevant

provisions of Directives GPSR 2023/988, 2025/138/EU (RED), RoHS 2015/863

and 2017/2102 amending Annex Il to Directive 2011/65/EU and SVHC 251

(REACH).

The full text of the EU Declaration of Conformity is available at the following

internet address: www.saluslegal.com.

Product Compliance

Installation of the SALUS CT Clamp (CTC) must be carried out by a qualied

and competent electrician in accordance with current wiring regulations.

The mains supply must always be isolated before installation or servicing.

The CT Clamp must be tted correctly to the incoming live mains conductor

as instructed, as incorrect installation may result in inaccurate readings or

improper operation. The device must not be opened, modied or tampered

with and is intended for indoor use only, installed in a dry and protected

location. Failure to follow these instructions may result in equipment

damage or risk to personal safety.

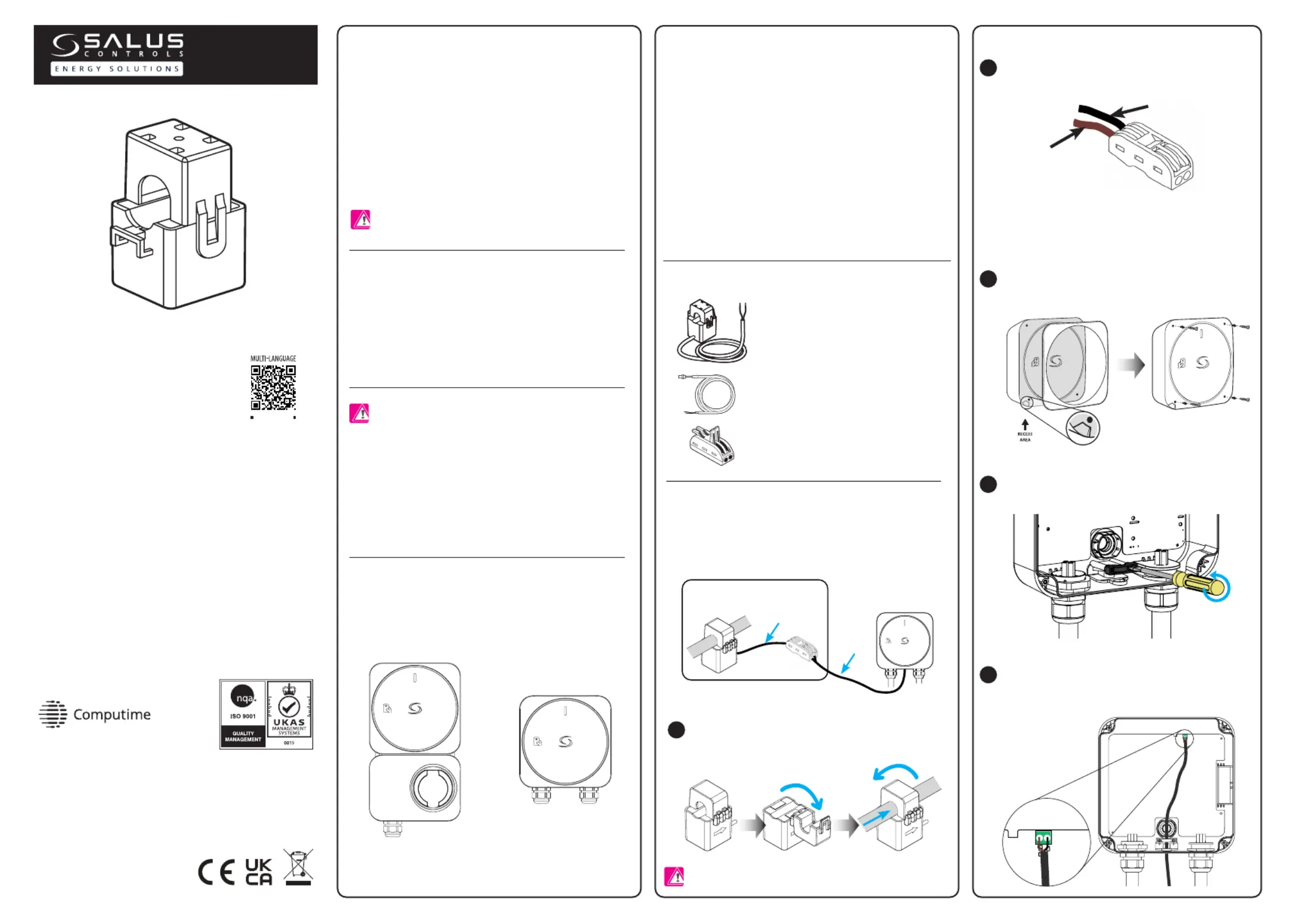

This section describes how to install the CT clamp and connect it to the EV charger.

The accompanying gure provides a general overview of the installation for

EVT7EU and EVT7UK.

Position the CT clamp around the incoming live supply cable in the

meter box, before the consumer unit. Ensure the arrow on the clamp

points toward the property’s electrical load.

Firmly insert the CT clamp wires into one side of the connector

accessory. The opposite side is designated for attaching the

extension cable wires.

To wire the CT clamp inside the EV charger, rst remove the

decorative cover using the recessed slot area, then unscrew the

indicated screws to remove the inner cover.

Safety Information

Please Note: The Load Curtailment feature is available on

single-phase models EV7EU, EVT7EU, EV7UK and EVT7UK.

Please Note: The CT clamp has a maximum primary rated current

of 100A.

Brown CT wire

Black CT wire

CTC

Manufacturer:

SALUS Controls plc

Units 8-10, Northeld Business Park,Forge Way,

Parkgate Rotherham, S60 1SD, United Kingdom

CURRENT

TRANSFORMER

CLAMP

QUICK GUIDE

SALUS Controls is a member of the Computime Group.

Maintaining a policy of continuous product development

SALUS Controls plc reserve the right to change specication,

design and materials of products listed in this brochure

without prior notice.

www.saluscontrols.com

Importer:

Salus Controls European Distribution sp.z o.o. ul.

Szamocka 8, piętro 6., 01 748 Warszawa, Poland

UK: [email protected]

DE: [email protected]

PL: [email protected]

FR: [email protected]

RO: [email protected]o

DK: Support@salus-controls.dk

The Load Curtailment feature is available on single-phase SALUS EV Charger

models EV7EU, EVT7EU, EV7UK and EVT7UK. The SALUS CT Clamp (CTC) is

designed to operate with these models, enabling load curtailment for safe

and ecient charging.

Compatibility

Box Content

Installation for EVT7EU and EVT7UK

5m extension cable

(terminal connector pre-installed)

Cable connector

MANUAL

EN

CT Clamp with 2m signal wire

EV7EU / EV7UK.

EVT7EU / EVT7UK.

Meter Box

CT clampcable

EV Charger

CT clamp

Cable connector

Extension

cable

1

2

3

Connect the extension cable to the CT clamp input terminal at

the top of the EV charger. Route the remaining cable through the

bottom cable-exit hole, as shown.

5

Loosen the cable clamp from the bottom side using a screwdriver.

4

&

1. Installation and servicing must be carried out by qualied personnel

only.

2. Switch o power at the circuit breaker before installing the CT clamp.

3. The Load Curtailment function requires rmware v2.0.40 or later

4. If the total demand is too high, the charger will automatically lower its

charging current.

5. Charging will stop if the available capacity falls below 6 A.

6. Load Curtailment reduces overload risk but cannot prevent all trips

caused by wiring, supply issues or other loads.

7. Always follow this manual. Incorrect installation or misuse may cause

damage, safety hazards or fuse tripping.

8. Stop using the system immediately if a fault is detected and consult a

qualied professional.

Important notes
