INSTALLATION SHEET
AT6610
All-terior LED Lamp Wall Sconce
START FROM HERE
•
Make sure power is completely off at the fuse box.
•
Have your fixture installed by a qualified licensed electrician
•
Prepare everything in a clear area.
•
Wear gloves at all times during this installation.
•
Read instructions carefully before you start assembly.
•
Keep this instruction sheet for future reference.
Technical Support: 1-855-855-8926
2a.
1c.
1b.
1a.
1d.
2d.
2b.
2c.
19054 28th Avenue Surrey, BC Canada V3Z 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20181127
Please Note:
• This Kuzco LED fixture comes with pre-wired LED module(s).
• Unless instructed to do so, please do not touch any part of the LED module(s) as any
unnecessary contact with the module could cause permanent damage.
• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.
You have now completed the installation of your fixture,
enjoy.

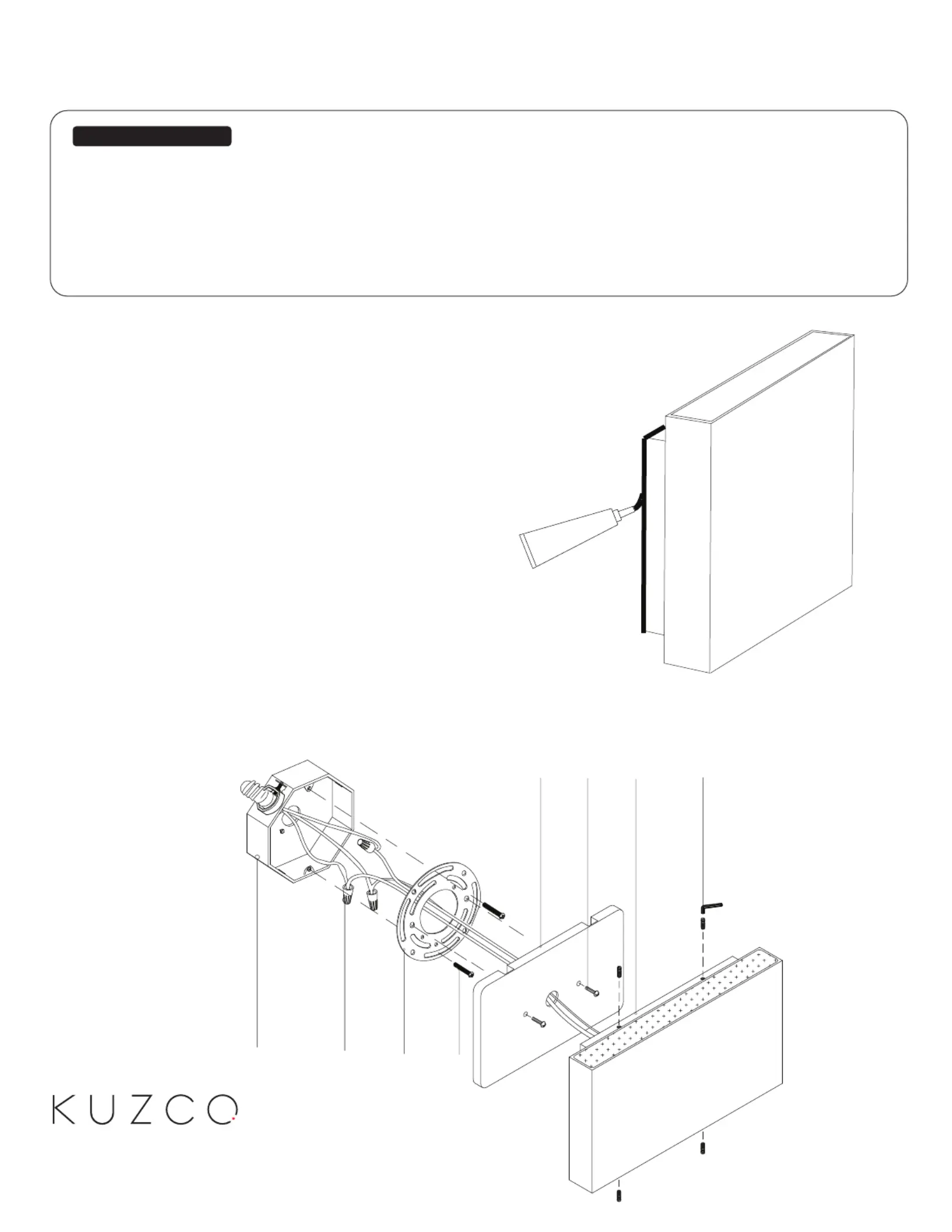

Remove the fixture from its original packaging. Remove
the mounting plate from within the canopy backplate (1c)
(2a)(2d) by loosening the four set screws and two screws
(2b). Secure the mounting plate to the junction box (1c)
(1a)(1d) with screws provided in the hardware package.
Attach the canopy backplate to the mounting plate (2a)
(1c)(1a), which is attached to the electrical junction box
on the wall. First attach all wiring with the provided
marrettes (1b) (white to white “N”, black to black “L”,
ground to ground “G”). Now direct the canopy backplate
(2a)(1c) onto the mounting plate be sure to line up the
mounting threaded holes with the screws . Next, place (2b)
the canopy onto the canopy backplate and (2c)(2a)
secure with all four set screws turning clockwise.(2d)
1.
2.
3.
*FOR OUTDOOR OPTION ONLY*
To prevent moisture from entering the outlet box and
causing a short, seal around the top and side perimeter
between the fixture and the wall surface with weather
resistant caulking (see Outdoor Option). The space at
bottom should be left un-caulked to prevent moisture
build-up.
4.
caulking
Outdoor Option
