INSTALLATION SHEET

LP84457

LED Linear Pendant

START FROM HERE

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support:

1-855-855-8926

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

Page 1 of 2

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• For dimming, an ELV (Electronic Low Voltage) or TRIAC type of dimmer is required

• 120V input

20220322

3b.

3f.

3a.3g.

Wire

4b.

5a.

4a.

2b.

1a.

1b.

1c.

1d.

2c.

2a.

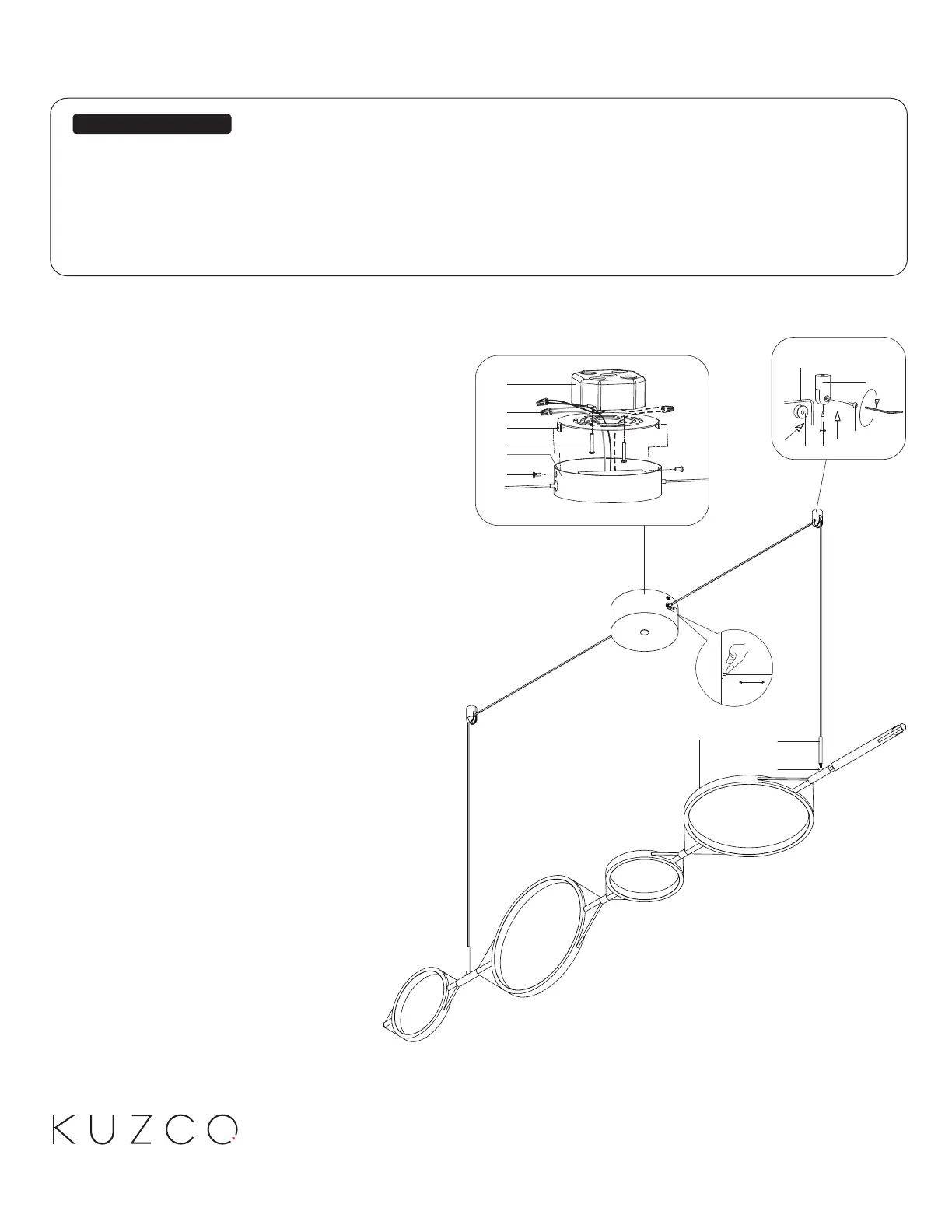

Remove the fixture from its original packaging

1.

Separate the mounting plate (1c) from the canopy (2a)

by removing the screws (2c)

Attach the mounting plate (1c) to the electrical junction

box (1a) using the two screws (1d) provided in the

hardware package

2.

3.

Make proper electrical connections (black to hot “L”,

white to neutral “N”, ground to “GND”) with wire nuts

(1b) provided in hardware package

5.

Attach canopy (2a) to mounting plate (1c) with

screws (2c)

6.

Mark and install ceiling anchors (3b) with screw (3a),

opening on ceiling anchor (3b) facing towards canopy

(2a). Ideal distance between ceiling anchors (3b) is

37-1/2”.

7.

Place wire onto pulley (3g), insert into ceiling anchor

(3b) and secure with screw (3f) using Allen key

8.

Fine tone wire length if necessary, by push and hold

wire gripper (2b) and then adjust wire to desired length

9.

Thread connector (4b) into fixture (4a) to secure

4.

Tilt heads (5a) to desired position

10.
