INSTALLATION SHEET

FM3511

LED Flush Mount

START FROM HERE

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20160527

1.

2.

3.

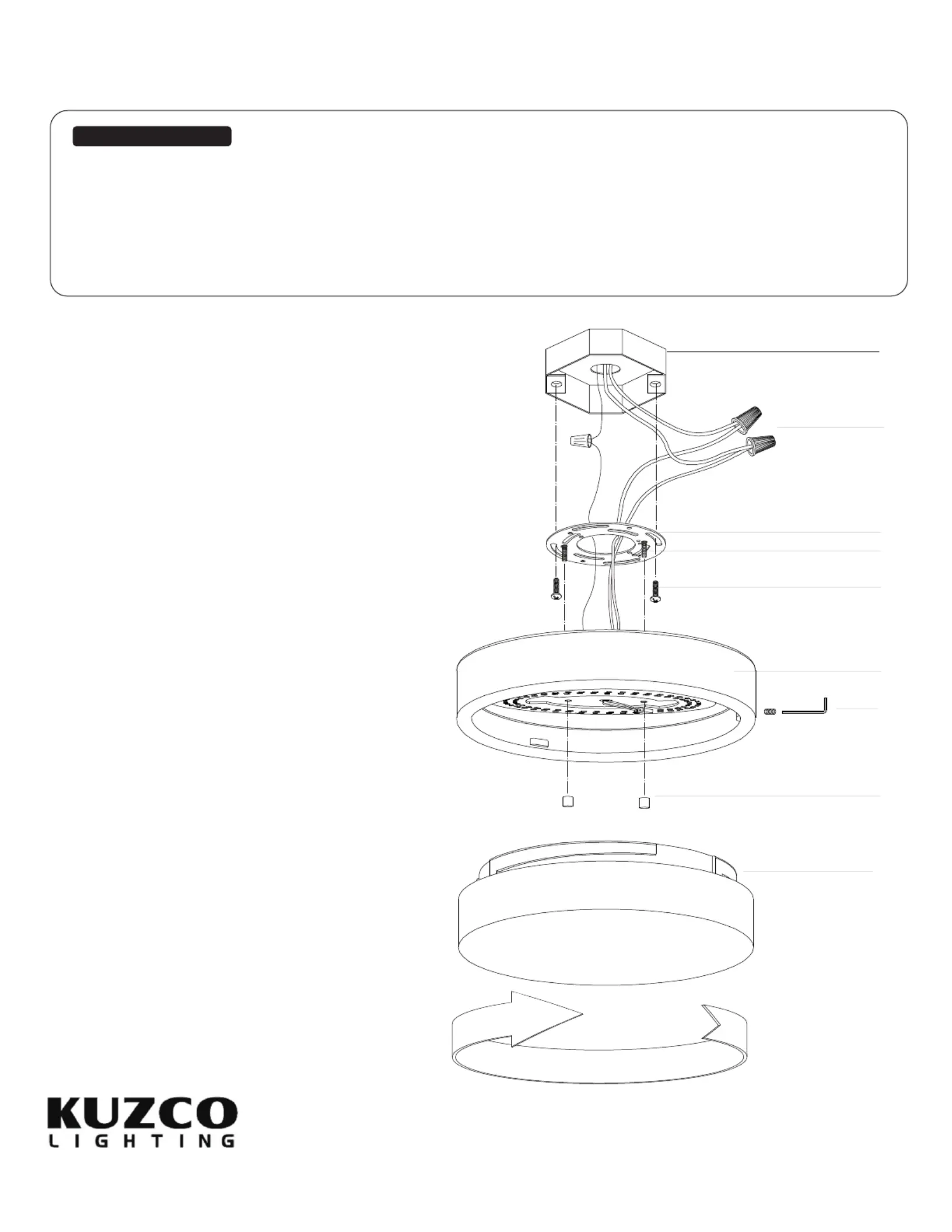

Remove the fixture from its original packaging. Next,

remove the mounting bar from within the canopy (1c)

(2a) (2b). by loosening the set screw Then remove

the glass and nuts Attach the mounting bar (2d)(2c).

to the electrical junction box on the ceiling using the

two screws provided in the hardware package.(1e)

You are now ready to mount the canopy to the (2a)

mounting bar . First connect all wires correctly (1c)

black to black “L”, white to white “N” and the ground

wire with provided marettes from the hardware (1b)

package. Align the holes in the canopy to the (2a)

threaded studsand push the canopyup (1d) (2a)

towards the mounting bar. Next, screw in the two (1c)

nuts onto the threaded studs , this will (2c)(1d)

secure the canopy to the mounting bar .(2a)(1c)

Attach the glass cover onto the canopy (2d)(2a) by

threading the glass clockwise. Secure the glass

coverusing the set screwwith the allen key (2d) (2b)

provided.

You have now completed the installation of your

fixture, enjoy.
