INSTALLATION SHEET

EW3105

LED Lamp Wall Sconce

START FROM HERE

Please Note:

• This Kuzco LED fixtures come with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) type of dimmer for dimming application

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

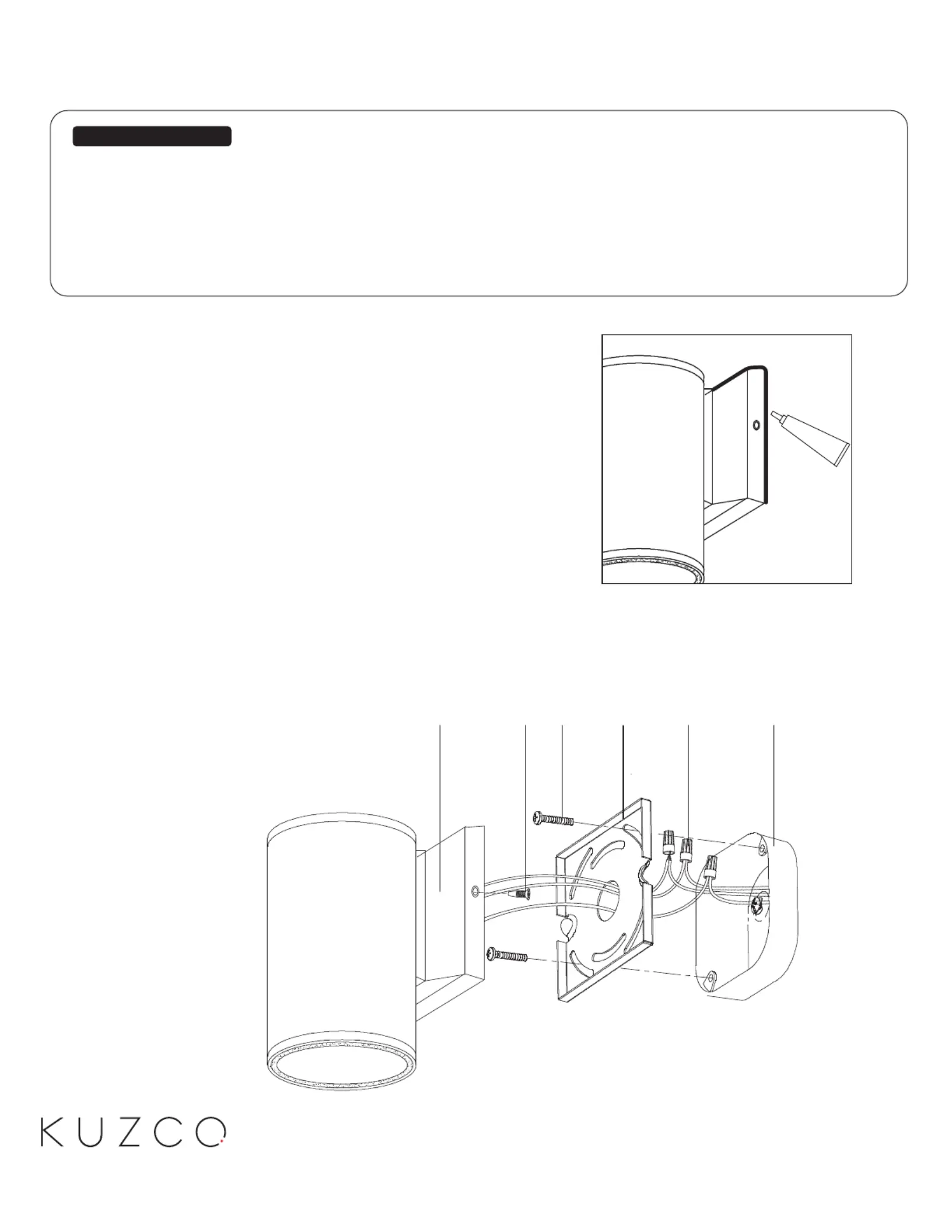

Illustration 3.

1a.1b.1c.1d.2a.2b.

Caulking

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20190814

Attach the canopy to the mounting plate , which is (2b)(1c)

attached to the electrical junction box on the wall. (1a)

First attach all wiring with provided marettes (white to (1b)

white “N”, black to black “L”, ground to ground “G”). Now

push the canopy onto the mounting plate and (2b)(1c)

install using the two canopy screws (2a).

To prevent moisture from entering the outlet box and

causing a short, seal around the top and side perimeter

between the fixture and the wall surface with weather

resistant caulking . The space at (see illustration 3)

bottom should be left un-caulked to prevent moisture

build-up.

You have now completed the installation of your fixture,

please enjoy.

1.

2.

3.

4.

Remove the fixture from its original packaging. Remove the

mounting plate from within the canopy by (1c)(2b)

removing the two canopy screws . Attach the mounting (2a)

plate (1c) to the electrical junction box (1a) using the two

screws (1d) provided in the hardware package.
