IMPORTANT SAFETY INSTRUCTIONS

LIGHTED BULB IS HOT!

WARNING: To reduce the risk of FIRE or INJURY TO PERSON:

• Turn off and allow to cool before replacing bulb.

• Bulb gets HOT QUICKLY! Contact switch only when turning off.

• DO NOT remain in light if skin feels warm. (Light is intense,

may cause “sunburn”)

• DO NOT look directly at lighted bulb.

• Keep materials away from bulb that may burn.

• Use ONLY with wattage specified or lower.

• DO NOT touch bulb at any time, use a soft cloth. Oil from skin

may damage bulb.

• DO NOT operate fixture with missing or damaged glass.

1) Pass fixture wire from center stem through stem and thread

end of stem to top of center stem.

2) Pass fixture wire through remaining stems and screw stems

together.

NOTE: Thread locking compound must be applied to all

stem threads as noted with symbol (3) to prevent accidental

rotation of fixture during cleaning, relamping, etc.

3) Pass fixture wire through end of swivel on canopy. Carefully

pull wires up through canopy. Thread swivel onto end of last

stem.

NOTE Align swivel to ceiling slope if needed.

4) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be re placed has a switch or pull chain, place those in

the “OFF” position.

5) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

6) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

7) Grounding instructions: (See Illus. A or B).

A) On fixtures where mounting strap is provided with a

hole and two raised dimples. Wrap ground wire from

outlet box around green ground screw, and thread into

hole.

B) On fixtures where a cupped washer is provided. Attach

ground wire from outlet box under cupped washer and

green ground screw, and thread into mounting strap.

If fixture is provided with ground wire. Connect fixture

ground wire to outlet box ground wire with wire connector.

(Not provided.) After following the above steps. Never

connect ground wire to black or white power supply wires.

8) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

GREEN GROUND

SCREW

CUPPED

WASHER

A

B

OUTLETBOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

(NOTPROVIDED)

OUTLETBOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

BlackWhite

*Parallel cord (round & smooth)*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire

Date Issued: 1/1/16

IS-42384-US

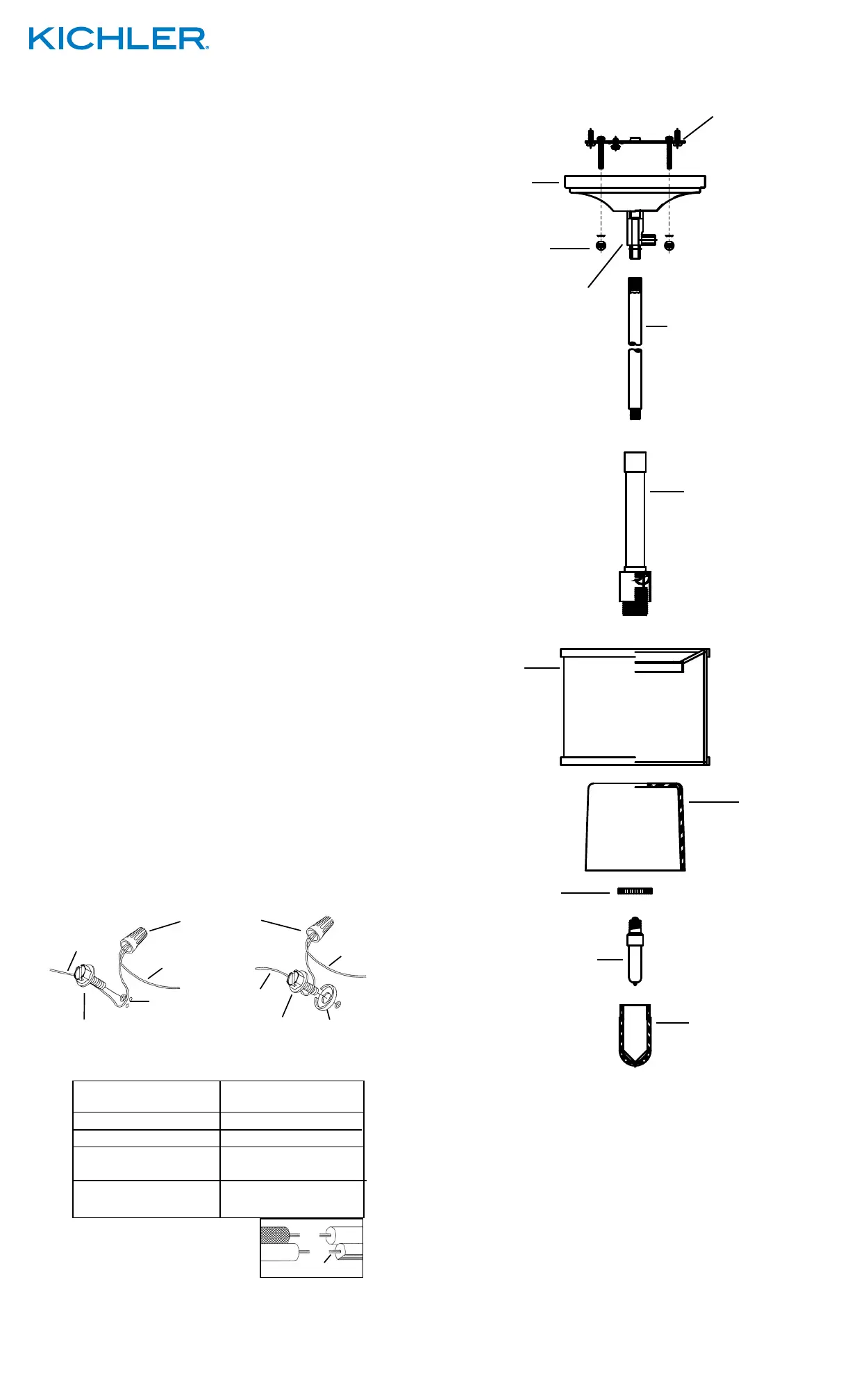

MOUNTING STRAP

ABRAZADERA DE

MONTAJE

CANOPY

ESCUDETE

STEM

VARILLA

KNURL KNOB

PERILLA ESTRADA

SWIVEL

UNIÓN GIRATORIA

3

3

SEE OTHER SIDE FOR SPANISH TRANSLATIONS.

VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.

9) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

10) Thread knurl knobs onto ends of mounting screws. Tighten

knurl knobs to secure fixture to ceiling.

11) Pass hole in bracket on outer shade over socket.

12) Fit glass inside outer shade. Pass hole in top of glass over

socket.

12) Thread socket ring onto socket. (DO NOT over tighten.)

19) Insert recommended bulb. CAUTION: DO NOT touch bulb

with bare hands. If this happens, clean bulb with denatured

alcohol and a lint free cloth.

20) Fit glass sleever over bulb. Carefully thread glass sleeve

onto socket. (DO NOT over tighten.)

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

GLASS

VIDRIO

BULB

BOMBILLA

GLASS SLEEVE

CAMISA DE VIDRIO

SOCKET RING

ANILLO DEL CASQUILLO

OUTER SHADE

PANTALLA EXTERIOR

CENTER STEM

VARILLA CENTRAL
