IMPORTANT:

Before you begin, make sure you familiarize yourself with all the

parts and fully read the instructions.

CUSTOMER SERVICE:

Toll-free customer help line available weekdays between

7:00am and 6:00pm Central Time at 800-463-0660.

TOOLS NECESSARY:

Screw gun and drill bits. NOTE: If screw gun has a clutch, set

to lowest setting so as not to over tighten and/or strip screws

during installation.

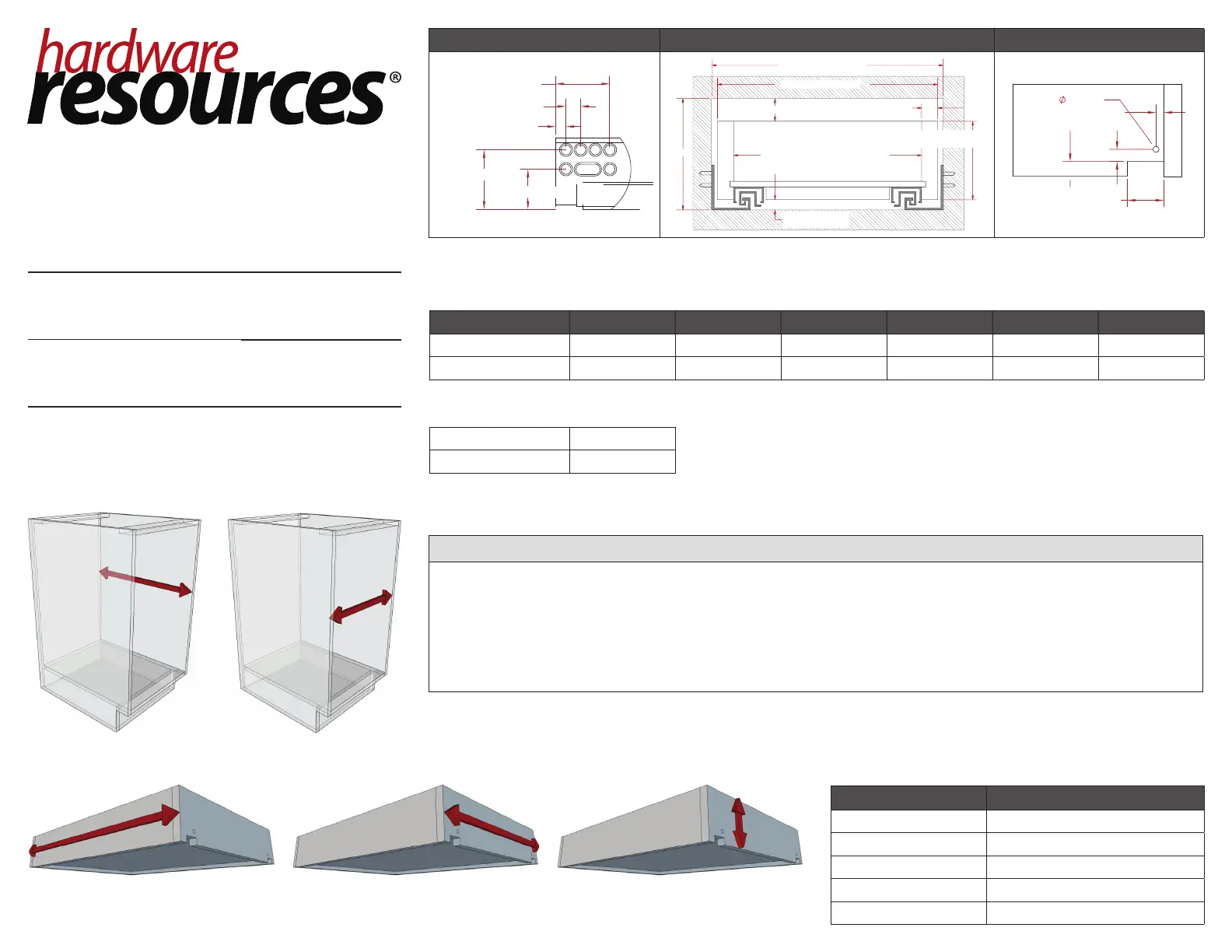

USE58 Series

Undermount Slide

Installation Instructions

MAXIMUM DRAWER HEIGHT =

OPENING MINUS 19 MM 3/4”

Drawer Side ThicknessInside Cabinet Width Deduction

5/8” (16 mm)3/8” (10 mm)

19/32” (15 mm)15/32” (12 mm)

9/16” (14 mm)9/16” (14 mm)

1/2” (13 mm)5/8” (16 mm)

15/32”(12 mm)23/32” (18 mm)

OUTSIDE DRAWER WIDTH CALCULATIONS

USE58-100 AND USE58-300 SERIES DRAWER BOX MINIMUM WIDTH (VARIES BY CLIP)

US-CLIP-6WZUS-CLIP-6WUS-CLIP-4WZUS-CLIP-4WUS-CLIP-2WUS-CLIP-NR

5/8” (16 mm) material7.25"7.25"7.25"7.25"6.25"4.75”

1/2” (13 mm) material7"7"7"7"6"4.5”

FRONT HOLE PATTERNFRONT VIEW OF THE DRAWER INSIDE THE CABINETREAR NOTCH DIMENSIONS

6 mm

(1/4")

33 mm

(1-5/16")

9 mm

(11/32")

36.5 mm

(1-7/16")

24.5 mm

(31/32")

12.70 mm

(1/2")

7 x 9 mm

11 mm

(7/16")

7 mm

(9/32")

MINIMUM 32 mm

(1-1/4")

MAX DRAWER THICKNESS

INSIDE CABINET WIDTH

MIN. TOP CLEARANCE 6

(1/4")

OPENING

16 (5/8")

OUTSIDE DRAWER WIDTH

INSIDE DRAWER =

INSIDE CABINET WIDTH MINUS 42 (1-5/8")

OPENING MINUS 19 (3/4")

MAX. DRAWER HEIGHT =

BOTTOM CLEARANCE

12.70

(1/2")

6 mm

(1/4")

33 mm

(1-5/16")

9 mm

(11/32")

36.5 mm

(1-7/16")

24.5 mm

(31/32")

12.70 mm

(1/2")

7 x 9 mm

11 mm

(7/16")

7 mm

(9/32")

MINIMUM 32 mm

(1-1/4")

MAX DRAWER THICKNESS

INSIDE CABINET WIDTH

MIN. TOP CLEARANCE 6

(1/4")

OPENING

16 (5/8")

OUTSIDE DRAWER WIDTH

INSIDE DRAWER =

INSIDE CABINET WIDTH MINUS 42 (1-5/8")

OPENING MINUS 19 (3/4")

MAX. DRAWER HEIGHT =

BOTTOM CLEARANCE

12.70

(1/2")

6 mm

(1/4")

33 mm

(1-5/16")

9 mm

(11/32")

36.5 mm

(1-7/16")

24.5 mm

(31/32")

12.70 mm

(1/2")

7 x 9 mm

11 mm

(7/16")

7 mm

(9/32")

MINIMUM 32 mm

(1-1/4")

MAX DRAWER THICKNESS

INSIDE CABINET WIDTH

MIN. TOP CLEARANCE 6

(1/4")

OPENING

16 (5/8")

OUTSIDE DRAWER WIDTH

INSIDE DRAWER =

INSIDE CABINET WIDTH MINUS 42 (1-5/8")

OPENING MINUS 19 (3/4")

MAX. DRAWER HEIGHT =

BOTTOM CLEARANCE

12.70

(1/2")

INSIDE CABINET DEPTHINSIDE CABINET WIDTH

DRAWER DEPTHDRAWER WIDTHDRAWER HEIGHT

Verify drawer box is correct width

1. Determine Drawer Side Thickness

2. Drawer box width = Inside Cabinet Width minus proper Inside Cabinet Width Deduction (See chart below)

• For 5/8” drawer box material, subtract 3/8” from inside cabinet width.

• For 1/2” drawer box material, subtract 5/8” from inside cabinet width.

3. Example: A drawer box made of 5/8” material would measure 14-5/8” for an inside cabinet width of 15”.

USE58-500 SERIES MINIMUM WIDTH (VARIES BY CLIP)

5/8” (16 mm) material8.25”

1/2” (13 mm) material8”
